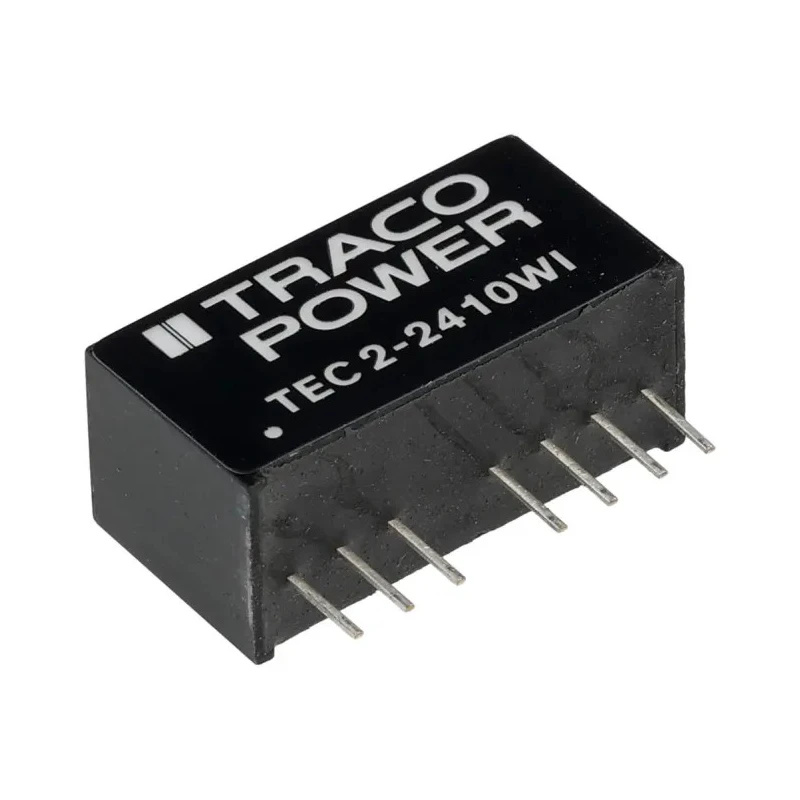

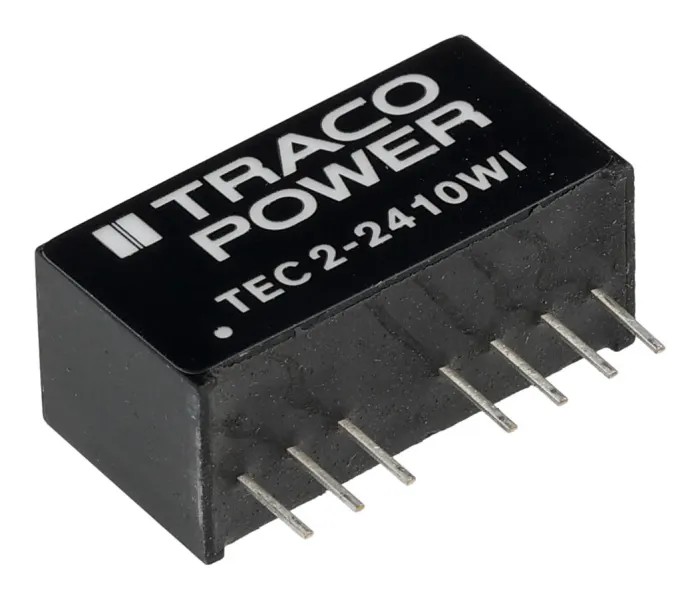

TRACOPOWER TEC 2WI Series DC/DC Converter 3.3V Output, 2W Power, 9-36V Input, 500mA Output Current, SIP Package TEC 2-2410WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 76% |
| Length | 21.8mm |
| Model | TEC 2-2410WI |
| Depth | 11.2mm |
| Width | 9.1mm |
| Mount Type | PCB |
| Series | TEC 2WI |
| Maximum Operating Temperature | 93°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 6620000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 500mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- The converter supports a wide input voltage range from 9V to 36V DC for versatile power sources.
- It features an isolation voltage of 1.6 kV DC ensuring safe operation in sensitive applications.
- Operating temperature range of -40°C to 93°C allows usage in extreme environmental conditions.
- Continuous short circuit protection enhances device reliability and automatic recovery.
- The compact SIP-8 package measures 21.8mm length, 9.1mm width, and 11.2mm depth for space-constrained designs.
- Efficiency is rated at 76% for optimal energy savings during operation.
- Fully regulated output maintains voltage stability under varying load conditions.
- Ideal for telecommunications, medical, industrial, and battery-powered applications requiring reliable isolated DC power.
Product Description
TRACOPOWER TEC 2-2410WI DC/DC Converter is a reliable power supply solution offering a regulated 3.3V DC output at 500 mA output current and nominal 2W power rating. Designed in a compact SIP-8 package suitable for PCB mounting, it measures 21.8mm in length, 9.1mm in width, and 11.2mm in depth, allowing integration into space-sensitive electronic designs.
This device supports a wide input voltage range from 9V to 36V DC, accommodating diverse power sources commonly found in telecommunications, medical instrumentation, industrial controls, and battery-powered equipment. The built-in 1.6kV DC isolation voltage ensures electrical safety and protection in sensitive circuits.
Operating efficiently across a temperature range from -40°C to +93°C, the converter is robust in harsh environmental conditions. Its continuous short circuit protection prevents damage by automatically recovering from overloads or faults.
The converter achieves 76% efficiency, minimizing energy losses and enhancing system reliability. Its fully regulated output voltage ensures stable power delivery without fluctuations, critical for sensitive signal processing and control systems.
Applications span telecommunications infrastructure, industrial automation, medical devices, and any system requiring compact, isolated DC power conversion. The SIP-8 form factor eases printed circuit board assembly, ensuring compatibility with modern electronic manufacturing processes.
The converter supports a wide input voltage range from 9V to 36V DC for versatile power sources. It features an isolation voltage of 1.6kV DC ensuring safe operation in sensitive applications. Operating temperature range of -40°C to 93°C allows usage in extreme environmental conditions.
Continuous short circuit protection enhances device reliability and automatic recovery. The compact SIP-8 package measures 21.8mm length, 9.1mm width, and 11.2mm depth for space-constrained designs. Efficiency is rated at 76% for optimal energy savings during operation.
Fully regulated output maintains voltage stability under varying load conditions. Ideal for telecommunications, medical, industrial, and battery-powered applications requiring reliable isolated DC power.
Environmentally compliant with RoHS standards, this TRACOPOWER TEC 2-2410WI model is manufactured in Taiwan, Province of China, and represents a high-quality choice for professional electronic power conversion needs. Browse EnvMart for more DC/DC Converters and industrial power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 3.3V DC.
The maximum output power is rated at 2W.
It supports a wide input voltage range from 9V to 36V DC.
The isolation voltage is 1.6kV DC, ensuring safe operation in sensitive applications.
The operating temperature range is from -40°C to +93°C.
The efficiency is rated at 76%, optimizing energy savings during operation.
The SIP package measures 21.8mm in length, 9.1mm in width, and 11.2mm in depth.
It is designed for PCB mounting.
This model has one output.
The output current is 500mA.
It is compliant with RoHS standards.
It is ideal for telecommunications, medical, industrial, and battery-powered applications requiring reliable isolated DC power.
