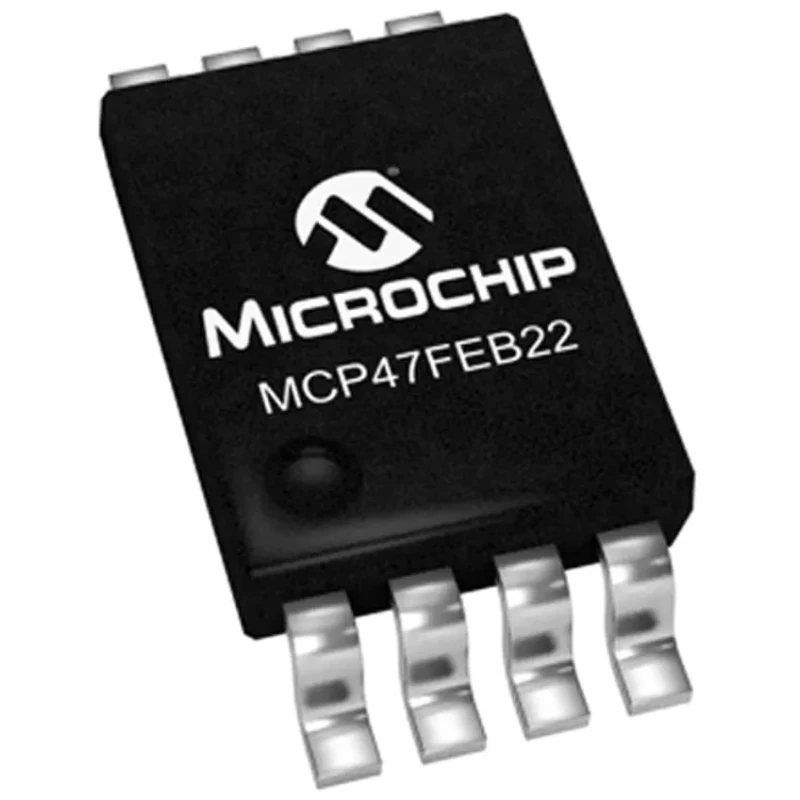

Microchip Digital-to-Analogue Converter DAC 12 bit 2-Channel Serial-I2C 8-Pin TSSOP MCP47FEB22A0-E/ST
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 1.2mm |
| Length | 4.5mm |
| Model | MCP47FEB22A0-E/ST |
| Width | 3.1mm |
| Mount Type | Surface |
| Settling Time | 6μs |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Interface Type | Serial-I2C |
| Architecture | Resistor String |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Microchip DAC 12 bit- 2-Channel Serial-I2C, 8-Pin TSSOPBrand | Microchip |
Key Features
- Offers 12-bit resolution for precise analog voltage output.
- Dual-channel operation suitable for multi-signal applications.
- Utilizes a resistor string DAC architecture for stability.
- Operates over a wide supply voltage range from 1.8V to 5.5V.
- Designed with low power consumption modes and non-volatile EEPROM memory.
- Features fast 6μs settling time for high-speed signal conversion.
- Compatible with serial I2C interface for easy microcontroller integration.
- Compact 8-pin TSSOP surface-mount package with small dimensions (4.5mm x 3.1mm x 1.2mm).
Product Description
Microchip MCP47FEB22A0-E/ST is a high-performance 12-bit digital-to-analogue converter featuring two output channels and a serial I2C interface. Housed in a compact 8-pin TSSOP surface-mount package, this DAC offers precise voltage analog output, making it suitable for a wide range of professional applications including industrial control, embedded systems, laboratory instrumentation, and HVAC control systems.
This device employs a resistor string architecture providing stable output with low glitch energy. It supports multiple voltage reference options including device supply voltage, external buffered or unbuffered VREF, or an internal bandgap reference. The DAC also includes non-volatile EEPROM to retain output settings after power cycles.
With a supply voltage range from 1.8V to 5.5V and operating temperature from -40°C to 125°C, the MCP47FEB22A0-E/ST is designed for robust operation in harsh environments. The device features fast settling time of 6 microseconds and supports low power modes, drawing a maximum of 380μA during normal dual-channel operation and reducing to 650nA in power-down mode.
The serial I2C interface ensures easy communication with microcontrollers, enhancing integration in complex electronic systems. The 8-pin TSSOP package measures 4.5mm in length, 3.1mm in width, and 1.2mm in height, enabling space-efficient PCB designs.
12-bit resolution for fine control of output voltage. Two independent DAC channels for versatile applications. Low power consumption with efficient power-down states. Non-volatile memory prevents data loss on power off. Flexible voltage reference options for tailored performance.
Fast settling time for responsive analog output. Wide operating temperature and voltage range. Compact surface-mount 8-pin TSSOP package for high-density PCB layouts.
This DAC is well-suited for applications requiring accurate analog signal generation such as industrial process control, sensor calibration, digital audio, and automotive electronics. Its integration-friendly interface and robust operating parameters make it a dependable component in diverse electronic and embedded environments.
Explore other digital-to-analogue converters and semiconductor components in the Electronics & Electricals category on EnvMart for comprehensive power and signal conversion solutions.
Explore more products in our Digital to Analogue Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers a resolution of 12 bits, allowing for precise analog voltage output.
It features two independent channels, making it suitable for multi-signal applications.
The MCP47FEB22A0-E/ST operates over a supply voltage range from 1.8V to 5.5V.
This model has a fast settling time of 6 microseconds, enabling high-speed signal conversion.
It utilizes a serial I2C interface, which facilitates easy integration with microcontrollers.
The device is housed in an 8-pin TSSOP package with dimensions of 4.5mm in length, 3.1mm in width, and 1.2mm in height.
It employs a resistor string architecture, which provides stable output with low glitch energy.
The maximum operating temperature is 125°C, allowing it to function in harsh environments.
This model can operate at a minimum temperature of -40°C.
Yes, it features non-volatile EEPROM memory to retain output settings after power cycles.
During normal dual-channel operation, it draws a maximum of 380μA.
It is suitable for applications such as industrial control, embedded systems, laboratory instrumentation, and HVAC control systems.
