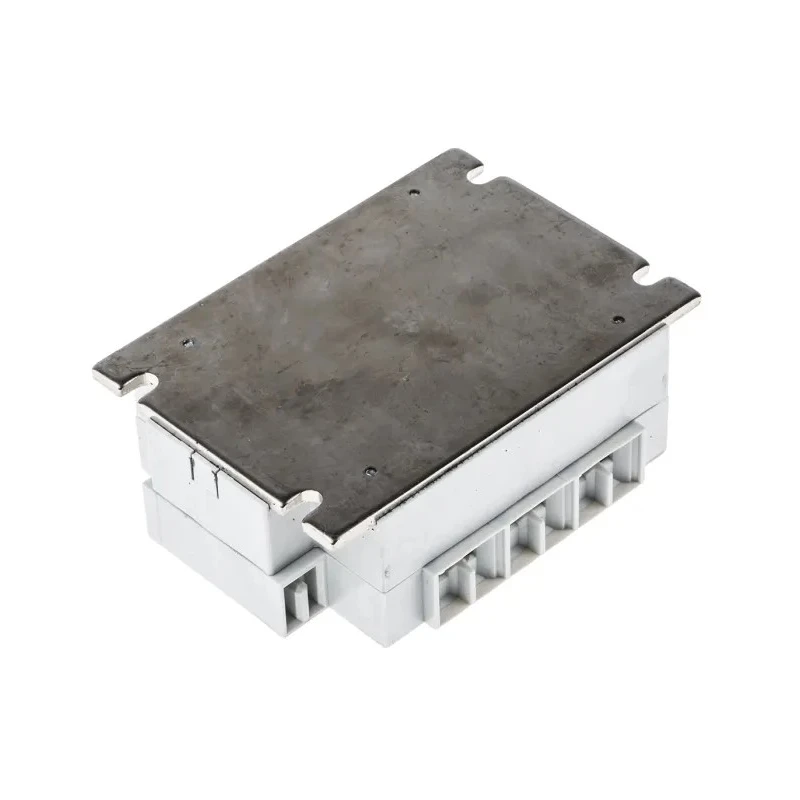

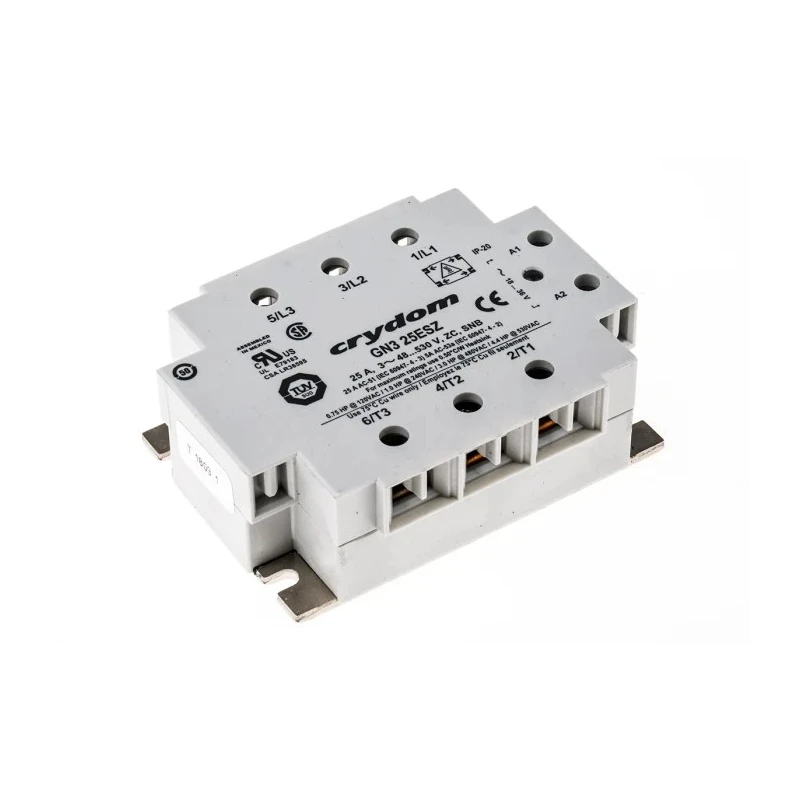

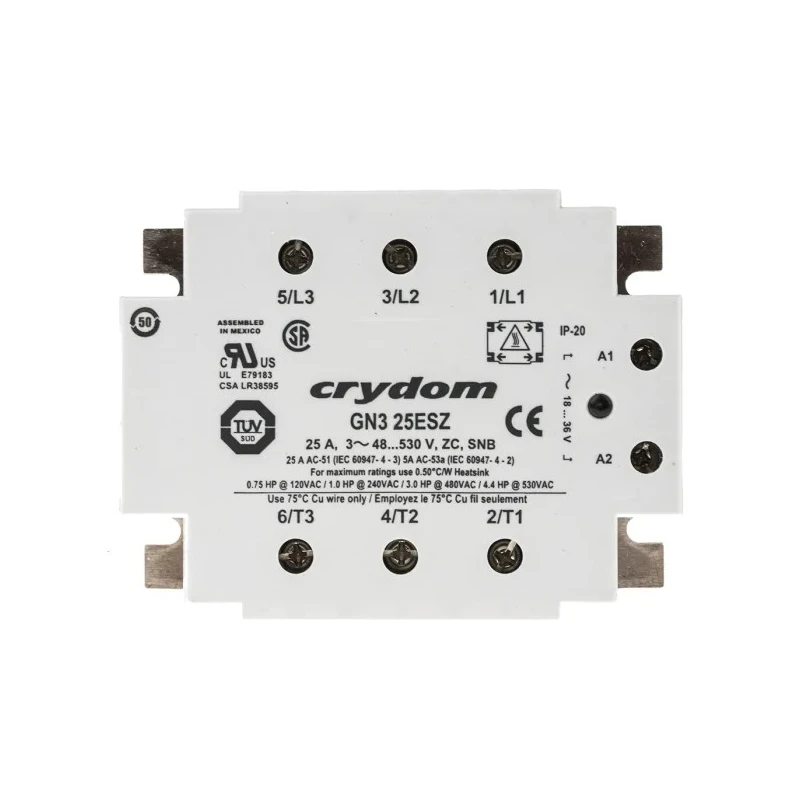

Crydom GN3 Series Solid State Relay Panel Mount 25A Load 600V AC Load 36V AC Control GN325ESZ

Crydom GN325ESZ Solid State Relay from the GN3 Series is a high-quality panel mount relay designed for industrial and automation applications. It is engineered to handle a maximum load current of 25 Amps and load voltages up to 600 Volts AC, with control voltage between 18V and 36V AC. This relay features screw terminal connections for ease of installation and reliable performance.

The zero voltage turn-on switching function ensures minimal electrical noise during operation, making it suitable for sensitive equipment. It operates efficiently within a temperature range of -40°C to 80°C, durable for harsh industrial environments. The relay utilizes a triac output type designed for AC loads, with an off-state leakage current of only 0.06mArms and capacitance of 8pF, which contributes to stable and noise-free switching.

This solid state relay includes built-in transient protection for enhanced safety and an LED input status indicator for real-time operation monitoring. The construction uses direct bond copper substrate technology to improve thermal performance and reliability. With physical dimensions of 101.3 mm length and 79.7 mm height, it fits conveniently into panel mount configurations.

Complies with CE and RoHS standards, ensuring it meets safety and environmental regulations. Common use cases include industrial automation control, HVAC systems, manufacturing machinery control, and electrical panel integrations. The GN3 Series relays are known for their broad power rating options and versatility across different mounting types including DIN rail, panel, and PCB mounts.

This solid state relay supports maximum load current of 25 Amps. It operates with load voltages ranging from 48V AC to 600V AC. The control voltage range is between 18V AC minimum and 36V AC maximum. The relay uses screw terminal connections for secure mounting.

Zero voltage turn-on switching ensures reduced electrical noise. Operational temperature range is from -40°C up to 80°C. Equipped with a triac output type suitable for AC loads. Includes built-in transient protection and an LED input status indicator.

Physical dimensions include a length of 101.3 mm and height of 79.7 mm. Complies with CE and RoHS standards for safety and environmental protection. Explore our range of Crydom Solid State Relays and related automation components on EnvMart for reliable industrial solutions.
