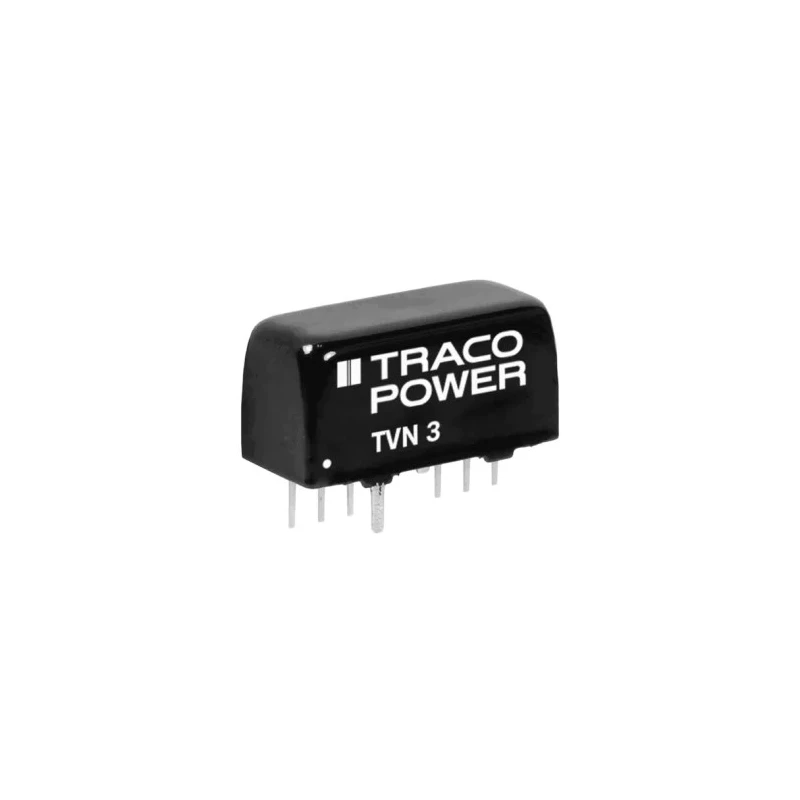

TRACOPOWER DC/DC Converter Through Hole SIP Package 15V 100mA 3W 90°C TVN 3-0923
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TVN 3 DC/DC Converter, 15V dc/ 100 mA |
| Brand | TRACOPOWER |
| Efficiency | 81% |
| Length | 21.8mm |
| Model | TVN 3-0923 |
| Depth | 11.2mm |
| Width | 9.6mm |
| Mount Type | Through Hole |
| Series | TVN 3 |
| Maximum Operating Temperature | 90°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 5600000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 13.2V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 12 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 100mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -15V dc |
Key Features
- Constructed with a SIP package featuring 12 pins for through-hole mounting.
- Maximum operating temperature of 90°C and minimum of -40°C for extended environmental tolerance.
- Provides 1.6kV dc isolation voltage ensuring safety and signal integrity.
- Efficiency rating of 81% optimizes power conversion performance.
- Designed for long-term reliability with a mean time between failures (MTBF) of 5,600,000 hours.
- Suitable for industrial, medical, and electronic applications requiring isolated DC power.
- Manufactured following IEC/EN/ES 60601-1 3rd edition medical safety standards and ISO 13485 quality management system.
Product Description
TRACOPOWER TVN 3-0923 is a precision DC/DC converter delivering 15V dc output at 100mA maximum current with a maximum output power of 3W. It is housed in a compact through-hole SIP package designed for easy PCB mounting. This converter accommodates a wide input voltage range from 4.5V to 13.2V dc with a 2:1 input ratio, supporting dual outputs of 15V and -15V dc.
The device provides robust isolation voltage of 1.6kV dc enhancing safety and noise immunity for sensitive applications. It operates reliably in challenging environments with operating temperatures spanning from -40°C to 90°C. Rated efficiency is 81%, which helps minimize energy loss and heat generation.
The TVN 3-0923 model is engineered for use in demanding sectors such as industrial control, medical devices, and precision instrumentation. Its long MTBF of 5,600,000 hours provides confidence in mission-critical operations requiring sustained and uninterrupted power supply.
Designed with compliance to IEC/EN/ES 60601-1 (3rd edition) standards and ISO 13485 certified quality management, it ensures high-grade medical safety and reliability. The SIP package's 12 pins and through-hole mounting style facilitate secure physical and electrical integration within compact electronic assemblies.
Dual output voltage ±15V dc with 2:1 wide input voltage range. High isolation voltage rating of 1.6kV dc for enhanced safety. Compact dimensions suited for space-limited designs. Supports industrial, medical, and electronic equipment requiring isolated DC power supplies.
Robust operating temperature range from -40°C to 90°C for industrial-grade applications. Meets rigorous IEC/EN/ES 60601-1 medical safety standards for reliability. Long MTBF ensures dependable operation in critical systems.
Constructed with SIP package and 12 pins for through-hole mounting.
This TRACOPOWER DC/DC converter is ideal for designers and engineers requiring a reliable and efficient isolated power source for electronic circuit applications. Browse more DC/DC Converters by TRACOPOWER on EnvMart to find solutions tailored to your industrial and medical design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 3W.
It accommodates a wide input voltage range from 4.5V to 13.2V dc.
This model provides dual output voltages of 15V dc and -15V dc.
The efficiency rating is 81%, optimizing power conversion performance.
It features a robust isolation voltage of 1.6kV dc, enhancing safety and noise immunity.
The operating temperature range spans from -40°C to 90°C.
The SIP package features 12 pins for through-hole mounting.
The mean time between failures (MTBF) is 5,600,000 hours.
The dimensions are 21.8mm in length, 11.2mm in depth, and 9.6mm in width.
It is manufactured following IEC/EN/ES 60601-1 (3rd edition) medical safety standards and ISO 13485 quality management system.
It is suitable for industrial, medical, and electronic applications requiring isolated DC power.
This model uses a through-hole mounting type for secure integration.
