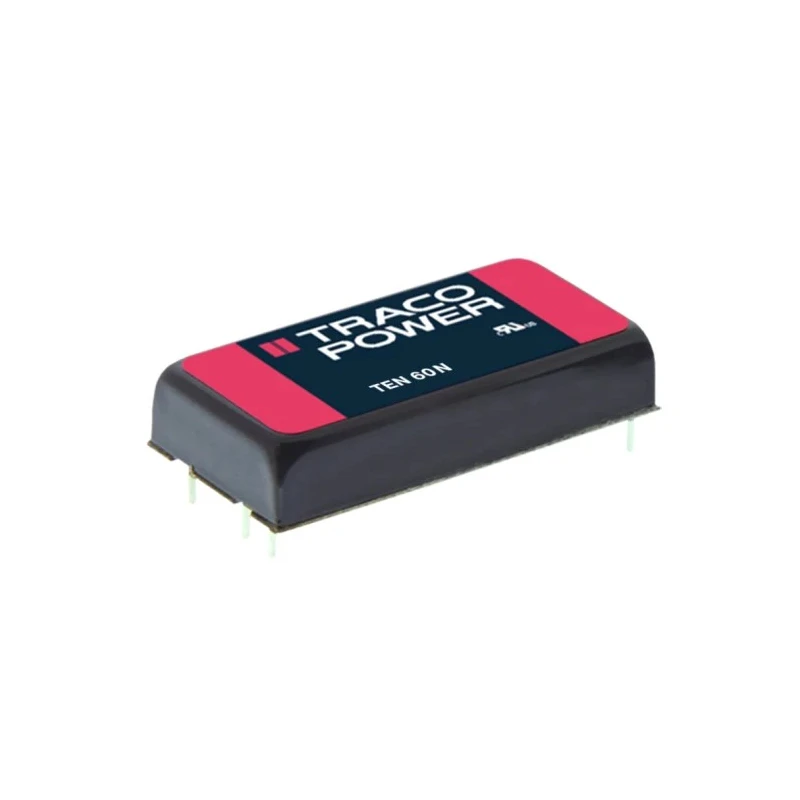

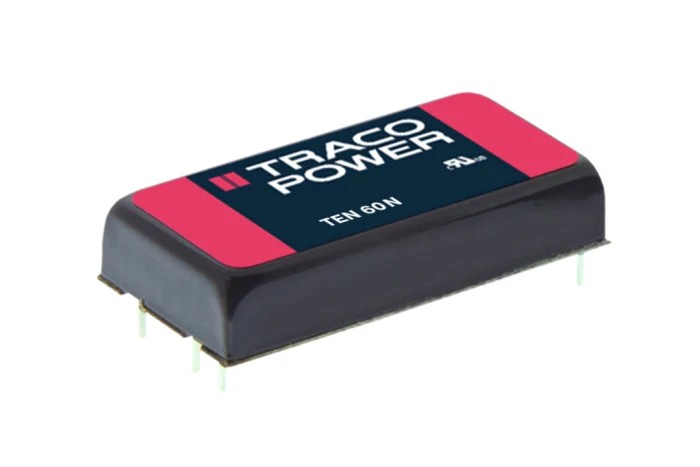

TRACOPOWER High Efficiency 60W Dual Output DC/DC Converter 24V DC 1.25A Input 18-36V PCB Metal Case TEN 60-2425N
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 60 DC/DC Converter, 24V dc/ 1 |
| Brand | TRACOPOWER |
| Efficiency | 0.91% |
| Length | 25.4mm |
| Model | TEN 60-2425N |
| Depth | 10.2mm |
| Gross Weight | 33g |
| Width | 50.8mm |
| Mount Type | PCB |
| Series | TEN 60 |
| Maximum Operating Temperature | 85°C |
| Package Type | Metal case |
| Minimum Operating Temperature | -40°C |
| MTBF | 880000h |
| Number of outputs | 2 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 60W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 1.25A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -24V dc |
Key Features
- Operates with an input voltage range of 18V to 36V DC, suitable for wide input applications.
- Provides output current up to 1.25A with high efficiency for low power loss.
- Features a compact size with dimensions 25.4mm length, 50.8mm width, and 10.2mm depth.
- Maintains operation in extreme temperatures from -40°C to 85°C, ensuring reliability in harsh environments.
- Incorporates 1.5kV DC isolation voltage for safe electrical isolation.
- Equipped with 6 pins for secure PCB mounting and connections.
- Designed with low ripple and noise of 200mV peak-to-peak for sensitive electronic circuits.
- Utilizes a metal case package that enhances durability and electromagnetic compatibility.
Product Description
TRACOPOWER TEN 60-2425N is a high-performance 60 Watt DC/DC converter designed with a wide input voltage range of 18V to 36V DC, making it suitable for varied industrial and electronic applications. It features dual output voltages of ±24V DC with a maximum output current of 1.25A. The converter is designed for PCB mounting and housed in a robust metal case to ensure durability and effective electromagnetic shielding.
With excellent efficiency reaching up to 92%, the TEN 60-2425N reduces power loss and ensures optimal thermal management under load. The device operates reliably in an extended temperature range from -40°C to 85°C, suitable for extreme environment conditions common in industrial and telecommunication scenarios.
The converter incorporates a 2:1 input ratio, low ripple and noise of 200mV peak-to-peak to protect sensitive electronics, and an isolation voltage of 1.5kV DC, which provides electrical safety and reduces interference between circuits. It has a compact footprint with dimensions of 25.4mm (L) x 50.8mm (W) x 10.2mm (D) and weighs 33 grams, allowing for easy integration into space-constrained systems.
This product boasts a high Mean Time Between Failure (MTBF) rating of 880,000 hours, demonstrating its reliability and longevity in demanding applications. Its features such as adjustable output voltage and remote on/off functionality add to its flexibility in system designs.
Typical applications of the TEN 60-2425N include use in wireless networks, telecommunications, datacommunications, industrial automation and control systems, and various measurement equipment where stable and efficient power conversion is critical.
Operates under broad input voltage from 18V to 36V DC. Dual outputs with 24V positive and negative voltages at 1.25A current. High conversion efficiency up to 92% minimizes energy loss. Metal case and PCB mount type suitable for rugged industrial environments.
Extended operating temperature range of -40°C to 85°C ensures reliability. Electrical isolation rating of 1.5kV DC for safety and noise reduction. Compact dimensions of 25.4mm x 50.8mm x 10.2mm with lightweight design (33g).
Low ripple and noise output preserves signal integrity. High MTBF of 880,000 hours for long-term dependable operation. Adjustable output voltage and remote on/off enhance control flexibility. Ideal for industrial, telecom, wireless network, and measurement equipment power solutions.
Explore a wide range of DC/DC Converters and power supply solutions at EnvMart for diverse industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range of 18V to 36V DC, making it suitable for a variety of applications.
The TEN 60-2425N provides dual output voltages of +24V DC and -24V DC, with a maximum output current of 1.25A.
It achieves a high efficiency rating of up to 92%, which helps minimize energy loss during operation.
The converter has compact dimensions of 25.4mm in length, 50.8mm in width, and 10.2mm in depth, weighing 33 grams.
This unit operates reliably in an extended temperature range from -40°C to 85°C, suitable for harsh environments.
The TEN 60-2425N features an isolation voltage of 1.5kV DC, ensuring electrical safety and reducing interference between circuits.
It is designed for PCB mounting and incorporates 6 pins for secure connections.
The converter has a low ripple and noise output of 200mV peak-to-peak, which is important for protecting sensitive electronics.
Typical applications include use in wireless networks, telecommunications, datacommunications, industrial automation, and measurement equipment.
The TEN 60-2425N has a high MTBF rating of 880,000 hours, indicating its reliability in demanding applications.
It includes adjustable output voltage and remote on/off functionality, adding to its versatility in system designs.
This model is housed in a robust metal case, which enhances its durability and electromagnetic compatibility.
