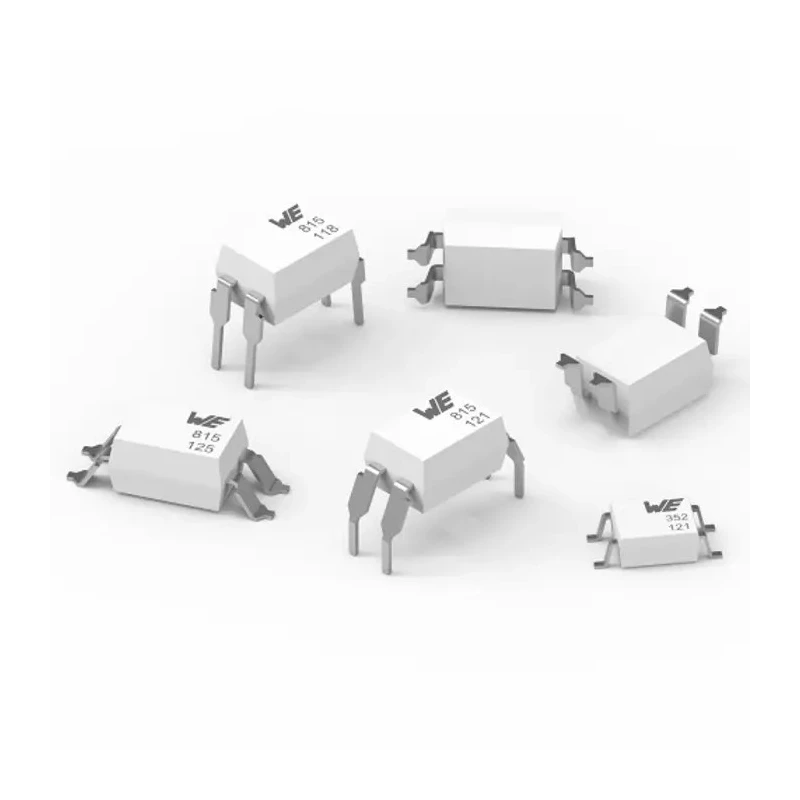

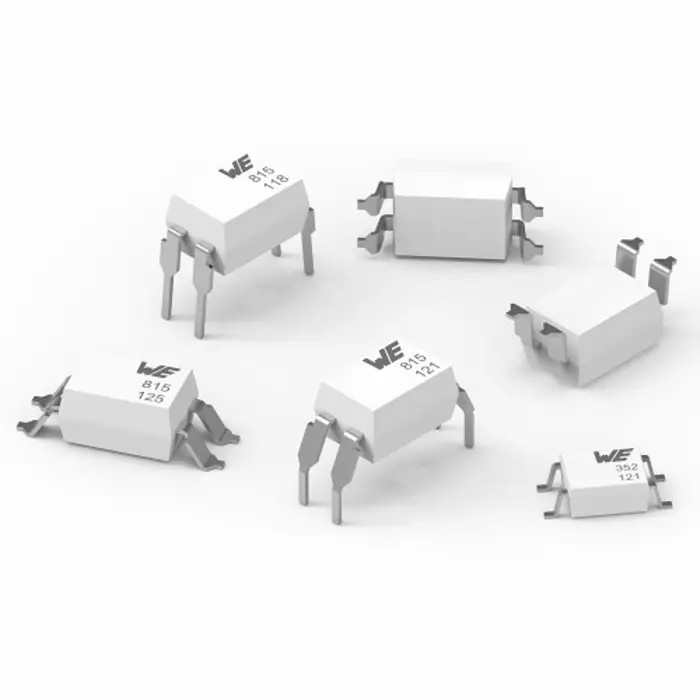

Wurth Elektronik Optocoupler DC Input Photodarlington 4-Pin DIP Package 1.4V Forward Voltage 7500% CTR 141815141010
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Output type | Photodarlington |
| Series | WL-OCDA |
| Maximum Operating Temperature | 110°C |
| Package Type | DIP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 95μs |
| Maximum Current Transfer Ratio | 7500% |
| Typical Fall Time | 84μs |
Key Features
- Features a maximum forward voltage of 1.4V ensuring efficient signal transmission.
- Designed with a high current transfer ratio of up to 7500% for effective signal amplification.
- Operates reliably between -55°C and 110°C, suitable for a wide range of industrial environments.
- Provides a typical rise time of 95 microseconds and a fall time of 84 microseconds for rapid switching.
- Offers an isolation voltage of 5000 Vrms for safe electrical separation.
- Compliant with RoHS standards ensuring environmentally safe manufacturing.
- Compact 4-pin DIP package facilitates easy circuit integration and assembly.
- Ideal for use in programmable logic controllers, sequence controllers, and automatic vending machines.
Product Description
Wurth Elektronik 141815141010 optocoupler is a high-performance DC input device featuring a photodarlington output in a 4-pin DIP package. It supports a wide temperature range from -55°C to 110°C and provides excellent electrical isolation with a voltage rating of 5000 Vrms. The device boasts a maximum forward voltage of 1.4V and a superior current transfer ratio of up to 7500%, which ensures efficient and stable signal transmission in industrial and electronic applications.
This optocoupler delivers fast switching performance highlighted by a typical rise time of 95 microseconds and a fall time of 84 microseconds. It is designed to meet RoHS compliance and is manufactured in China, assuring quality and environmental compliance.
The compact DIP package format simplifies assembly and integration in diverse electronics systems including programmable logic controllers, sequence control units, measuring instruments, and vending machines. The product is engineered for durability and stable performance under various operating conditions.
Maximum forward voltage: 1.4V. Current transfer ratio: up to 7500%. Operating temperature range: -55°C to 110°C. Isolation voltage: 5000 Vrms. Typical rise and fall times of 95μs and 84μs respectively. RoHS compliant for environmental safety.
4-pin DIP package type ensures ease of installation. Suitable for industrial automation and electronic control applications.
Wurth Elektronik products deliver consistent quality and reliable performance for electronics and industrial automation projects. Explore more in the Optocoupler category at EnvMart for comprehensive component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this optocoupler is 1.4V.
It has a maximum current transfer ratio of up to 7500%.
The operating temperature range is from -55°C to 110°C.
This optocoupler provides an isolation voltage of 5000 Vrms.
The typical rise time is 95 microseconds and the fall time is 84 microseconds.
It comes in a compact 4-pin DIP package.
Yes, it is compliant with RoHS standards for environmental safety.
This model features a photodarlington output type.
It is suitable for use in programmable logic controllers, sequence controllers, and automatic vending machines.
This product is manufactured in China.
This optocoupler has 4 pins.
It supports DC input current type.
