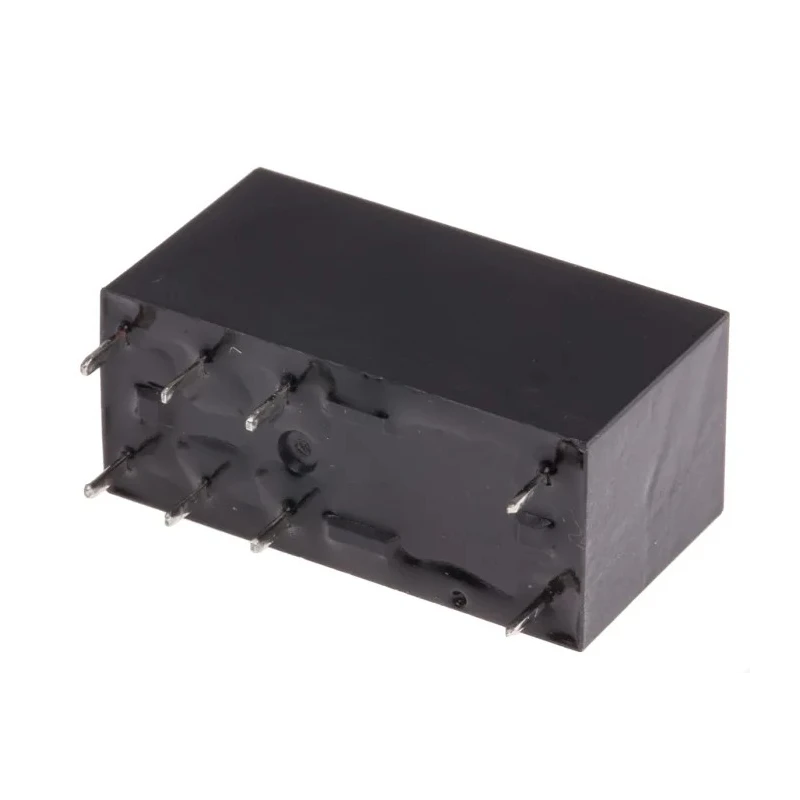

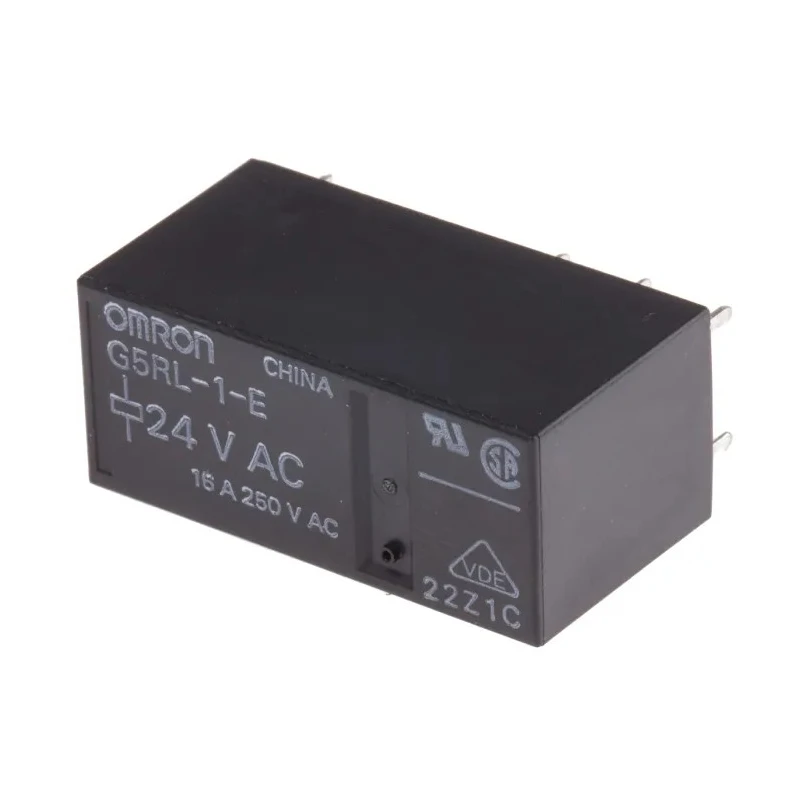

Omron PCB Power Relay 24V AC Coil 16A Switching Current SPDT G5RL-1-E AC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G5RL-1-E AC24 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5RL |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Low Profile | 15.7mm max height |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 443Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 24V ac |
| Coil Power | 750mW |
Key Features
- Designed for PCB mounting with solder terminals for reliable connections.
- Silver alloy contact material ensures low contact resistance and durability.
- Operates within a temperature range of -40°C to 70°C suitable for various industrial environments.
- Low coil power consumption of 750mW supports energy-efficient applications.

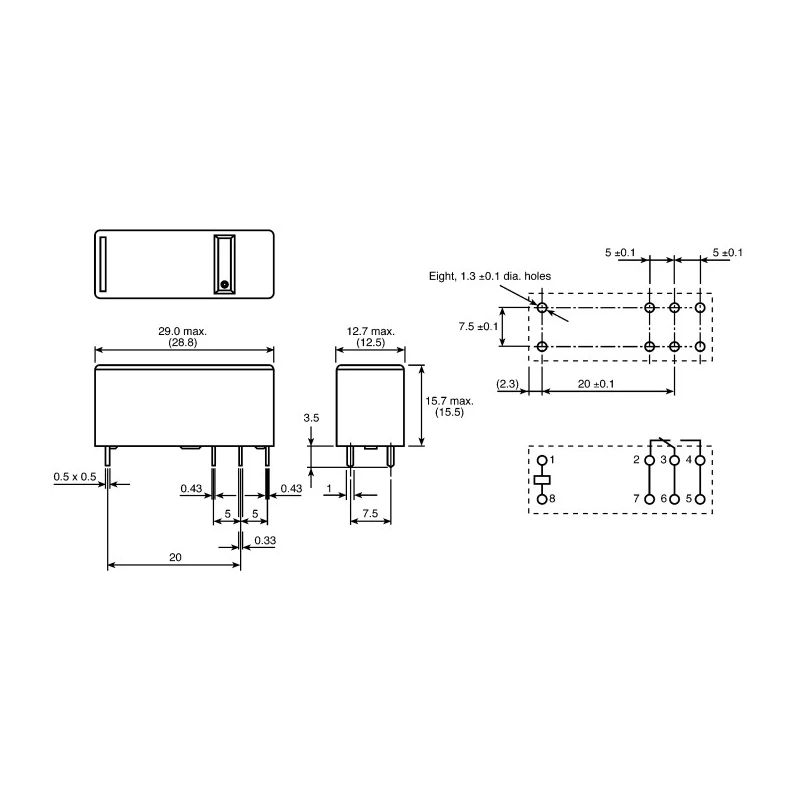

- Compact size with dimensions 29mm length, 12.7mm width, and 15.7mm height for space-saving PCB designs.
- RoHS compliant for environmental safety and high-quality manufacturing standards.
- Provides silent operation with noise level around 44dB at 15cm distance for low acoustic interference.
- Flux proof design with 8mm creepage and clearance between coil and contacts for electrical safety.
Product Description
Omron G5RL-1-E AC24 PCB Power Relay features a 24V AC coil and a 16A switching current with SPDT contact configuration, ideal for industrial and automation control applications. The relay is designed for printed circuit board (PCB) mounting, utilizing solder-type terminals for secure and reliable electrical connections. This product is part of the G5RL series, known for robust performance in demanding environments.
With compact dimensions of 29mm length, 12.7mm width, and a low profile height of 15.7mm, it fits well in space-constrained PCB layouts. The relay incorporates silver alloy contacts that provide low contact resistance (100mΩ) and high conductivity, supporting switching voltages up to 24V AC and 24V DC, catering to versatile switching requirements. Its coil consumes minimal power at 750mW, contributing to energy-efficient circuit designs.
The operating temperature range of -40°C to 70°C ensures reliable operation under varying environmental conditions, making it suitable for industrial, manufacturing, control systems, HVAC systems, and electrical automation. The relay also features noise-reduced operation at around 44dB @ 15cm, minimizing acoustic disturbance in sensitive equipment. The flux-proof design with creepage and clearance of 8mm between coil and contacts enhances electrical safety and insulation quality.
This relay complies with RoHS environmental standards, emphasizing safe and sustainable manufacturing processes. Originating from China, the Omron G5RL-1-E AC24 is engineered to provide a dependable switching solution in industrial and commercial electronic assemblies.
PCB mounting with solder terminals for secure installation. Silver alloy contact material ensures durability and low resistance. Supports switching current up to 16A for varied loads. Compact size enables easy integration in tight PCB spaces.
Operating temperature range from -40°C to 70°C suits harsh environments. Low coil power consumption enhances energy efficiency. Quiet operation minimizes acoustic noise in installations. Flux-proof design provides safe creepage and clearance distances.
RoHS compliant to meet environmental regulations. Ideal for industrial automation, manufacturing, HVAC, and control systems. Explore more industrial-grade relays and power control devices in the Electronics & Electricals category on EnvMart to find the right components for your projects.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum switching current of 16A, making it suitable for various loads in industrial applications.
The coil voltage for this relay is 24V AC, allowing it to operate effectively in compatible circuits.
It has compact dimensions of 29mm in length, 12.7mm in width, and a height of 15.7mm, which is ideal for space-constrained PCB layouts.
The relay operates within a temperature range of -40°C to 70°C, making it suitable for various industrial environments.
This model features a Single Pole Double Throw (SPDT) contact configuration, providing versatile switching options.
The coil power consumption is 750mW, contributing to energy-efficient circuit designs.
It utilizes solder-type terminals for secure and reliable electrical connections on printed circuit boards.
The relay incorporates silver alloy contacts, which ensure low contact resistance and high conductivity.
Yes, this relay is RoHS compliant, meeting environmental safety standards for manufacturing.
The contact resistance is rated at 100mΩ, which supports efficient switching performance.
It operates with a noise level of approximately 44dB at a distance of 15cm, minimizing acoustic interference.
This relay is manufactured in China, adhering to high-quality manufacturing standards.
