Crydom Quad Series Solid State Relay, Panel Mount, 20 A Load Current, 280 V Load Voltage, 4-15 V DC Control TD2420Q

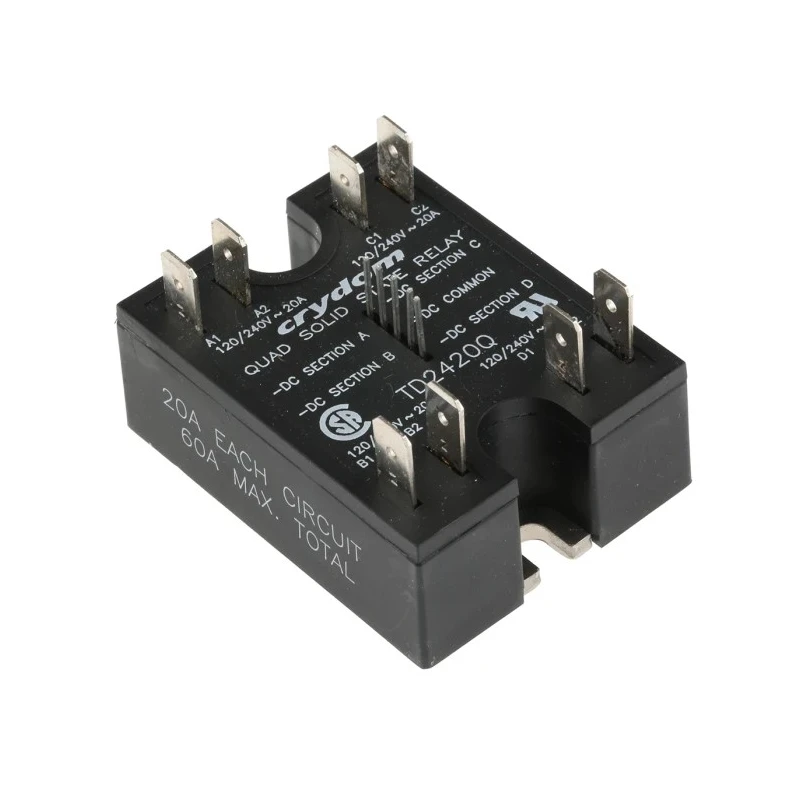

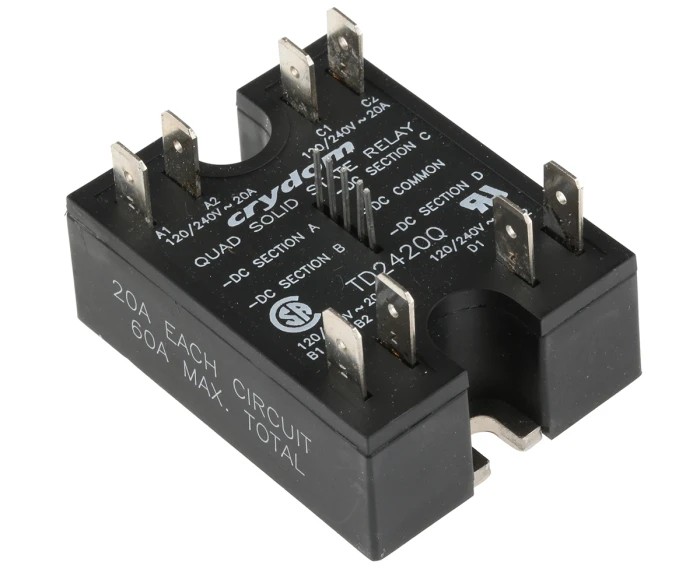

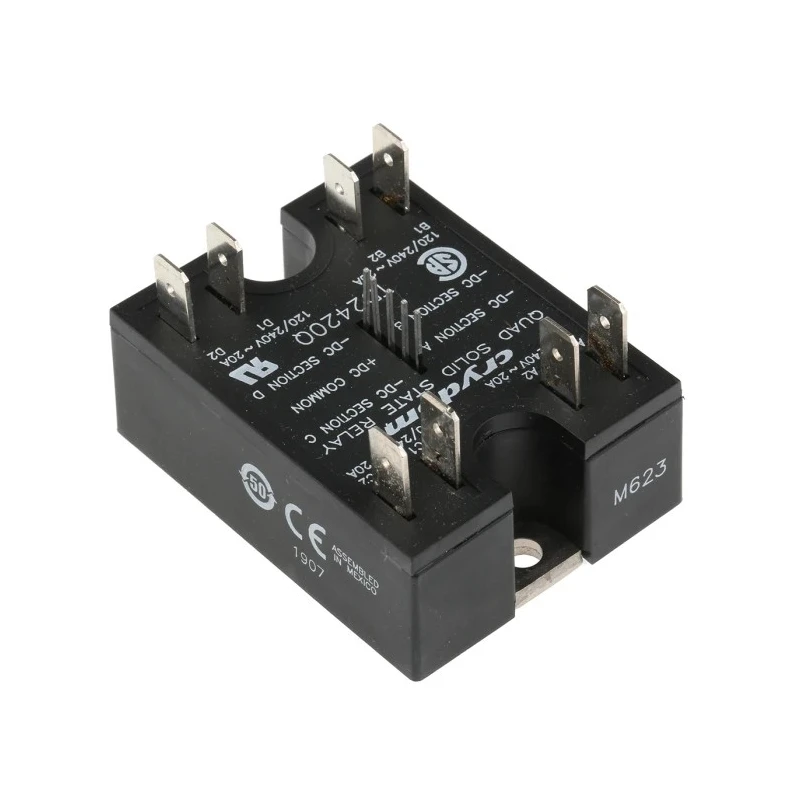

Crydom TD2420Q Quad Series Solid State Relay is a high-performance panel mount device engineered to switch loads up to 20 amperes at 280 volts. Its solid-state design eliminates mechanical wear, ensuring long service life and reliability in demanding industrial conditions.

This relay features zero cross switching, which activates at the AC source's zero-voltage point, significantly reducing electrical noise and improving operational efficiency. It supports a broad control voltage range of 4 to 15 V DC, compatible with a wide variety of control signals.

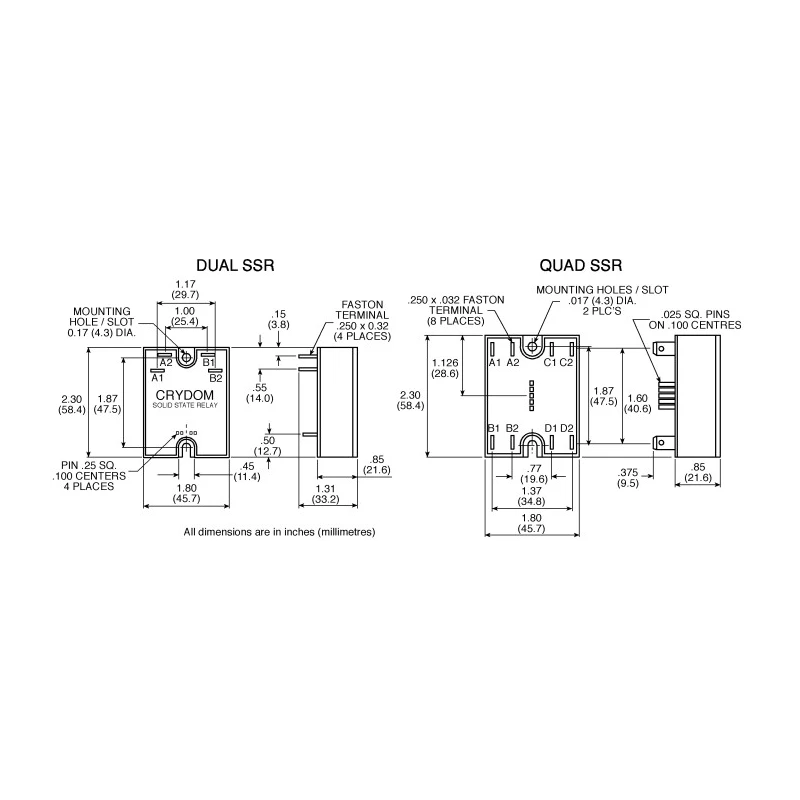

With compact dimensions of 58.4 mm length, 21.6 mm height, and 4.8 mm width, the TD2420Q fits easily in panel-mounted applications where space is limited. Its SCR output type provides the necessary power handling for industrial machinery and automation systems.

The device operates reliably across a wide temperature range from -40°C to 80°C, making it suitable for installations in challenging environments such as manufacturing floors and industrial automation. The integrated snubber circuit helps in reducing voltage spikes and curtailing power dissipation for efficient performance.

Weighing only 109 grams, this solid state relay applies minimal mechanical stress on its mounting hardware. Its IP20 rating offers basic protection against dust ingress, ideal for controlled panel environments.

This product is particularly suited for industrial, laboratory, medical, robotics, and data acquisition applications where precise, reliable switching of AC loads is critical. It meets key standards including CSA, RoHS, and UR, underscoring its quality and compliance for global markets.

Features zero cross switching to reduce noise and increase efficiency. Supports wide 4 to 15 V DC control voltage range for versatility. Compact size for easy panel mounting in limited spaces. SCR output handles heavy industrial loads reliably.

Robust design suited for -40°C to 80°C operating temperatures. Snubber circuit reduces voltage spikes and improves energy efficiency. Lightweight at 109 grams minimizes mounting strain. IP20 rated for protection against dust ingress in panel environments.

Ideal for medical, robotics, and data acquisition systems. Explore more Solid State Relays and automation control products at EnvMart for your industrial and electronic applications.
