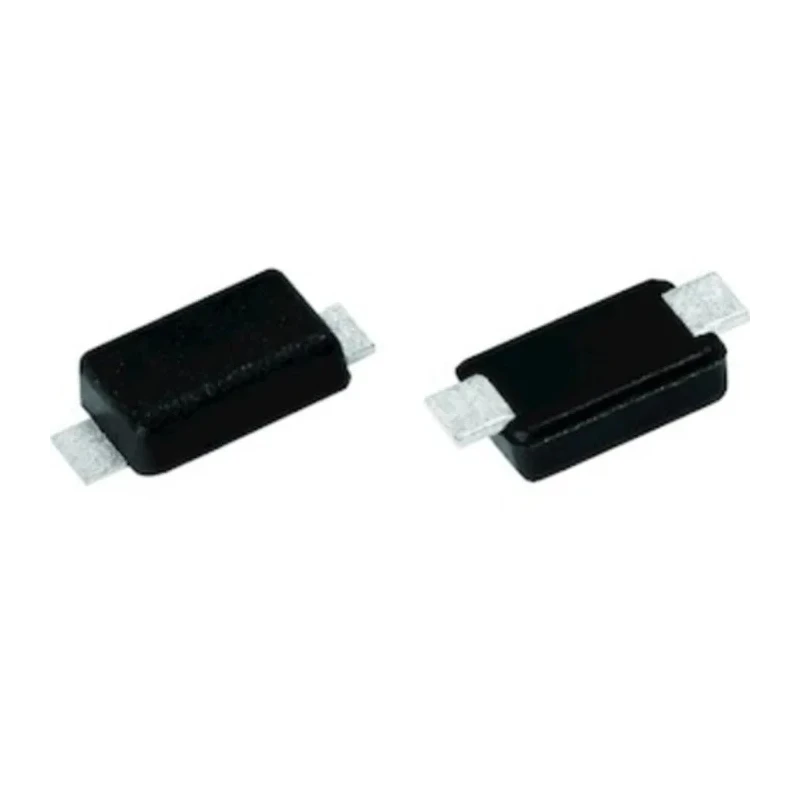

Vishay Surface Mount Schottky Diode 200 V 2 A DO-219AB V2F22-M3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.08mm |
| Length | 3.9mm |
| Model | V2F22-M3/H |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | V2X |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-219AB |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A |
| Maximum Forward Voltage Vf | 0.87V |
Key Features
- The diode offers a maximum continuous forward current of 2 amperes.
- It features a peak reverse repetitive voltage rating of 200 volts.
- The maximum forward voltage drop is 0.87 V, enabling low power losses.
- Operates between -40°C to 175°C, suitable for harsh environments.
- Constructed with a 2-pin DO-219AB surface mount package for automated placement.
- Designed to deliver fast switching speeds and low leakage current.
- Complies with RoHS standards and automotive grade AEC-Q101 certification.
- Ideal for polarity protection and freewheeling in industrial and automotive applications.
Product Description
Vishay V2F22-M3/H is a high-performance surface mount Schottky diode designed for use in electronic circuits requiring efficient fast switching and low forward voltage drop. This diode is packaged in the compact DO-219AB form factor measuring 3.9 mm in length, 1.9 mm in width, and 1.08 mm in height, which facilitates automated PCB assembly processes.
It is rated for a maximum continuous forward current of 2 A and can withstand peak reverse repetitive voltages up to 200 V, making it suitable for DC/DC converters, high-frequency inverter circuits, and polarity protection roles in automotive and industrial systems.
The diode features a maximum forward voltage of 0.87 V and low leakage current, which reduces power dissipation and improves system efficiency. The operating temperature range spans from -40°C to 175°C enabling reliability in extreme operating conditions.
The diode supports fast switching speeds that increase overall performance. It meets RoHS compliance ensuring environmentally friendly manufacturing processes. It conforms to automotive standard AEC-Q101, verifying quality and robustness for automotive applications.
Compact 2-pin DO-219AB package design supports surface mounting and automated placement. Low forward voltage and leakage current contribute to energy-efficient circuit operation. Wide operating temperature range ensures functionality in diverse environmental conditions.
The diode offers peak non-repetitive forward surge current capability up to 60 A, accommodating transient event protection. Ideal for use in power rectification, freewheeling diode circuits, and polarity protection in commercial and industrial electronic devices.
Made in China, ensuring global manufacturing quality standards.
This Vishay Schottky diode model V2F22-M3/H balances electrical performance with compactness and durability, making it an excellent choice for electronic and automotive semiconductor applications.
Explore additional Vishay semiconductor components and related electronic devices within the Industrial and Electrical category on EnvMart for comprehensive sourcing.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a maximum continuous forward current rating of 2 amperes.
The maximum forward voltage drop is 0.87 volts, which helps in reducing power losses.
This model is packaged in a 2-pin DO-219AB surface mount package, facilitating automated placement.
It complies with the automotive standard AEC-Q101, ensuring quality for automotive applications.
The diode can handle a peak non-repetitive forward surge current of up to 60 amperes.
The dimensions are 3.9 mm in length, 1.9 mm in width, and 1.08 mm in height.
This unit is a Schottky rectifier, designed for efficient fast switching.
It is ideal for polarity protection and freewheeling in industrial and automotive applications.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing processes.
