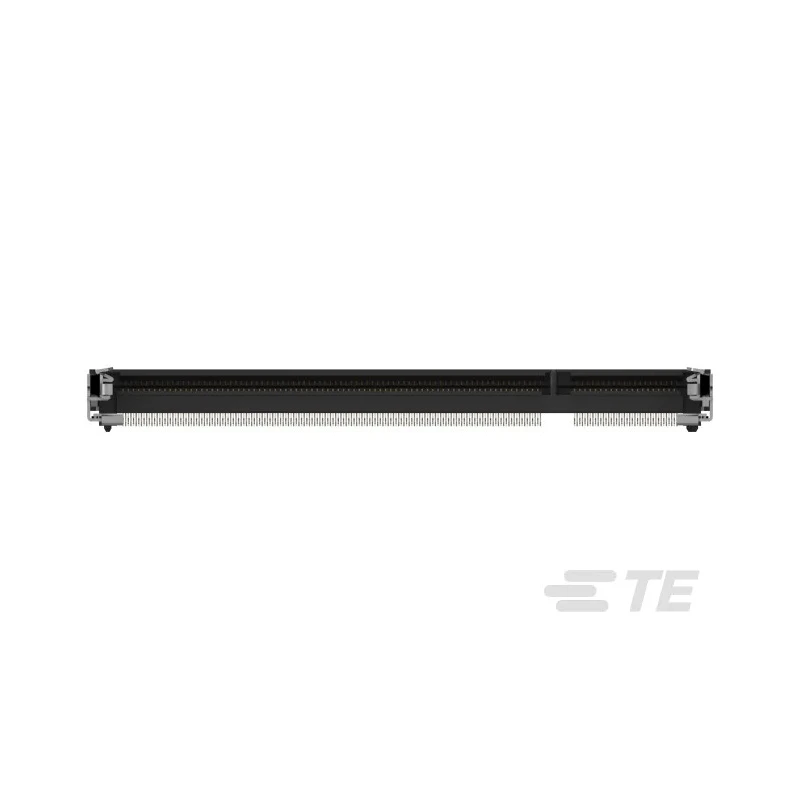

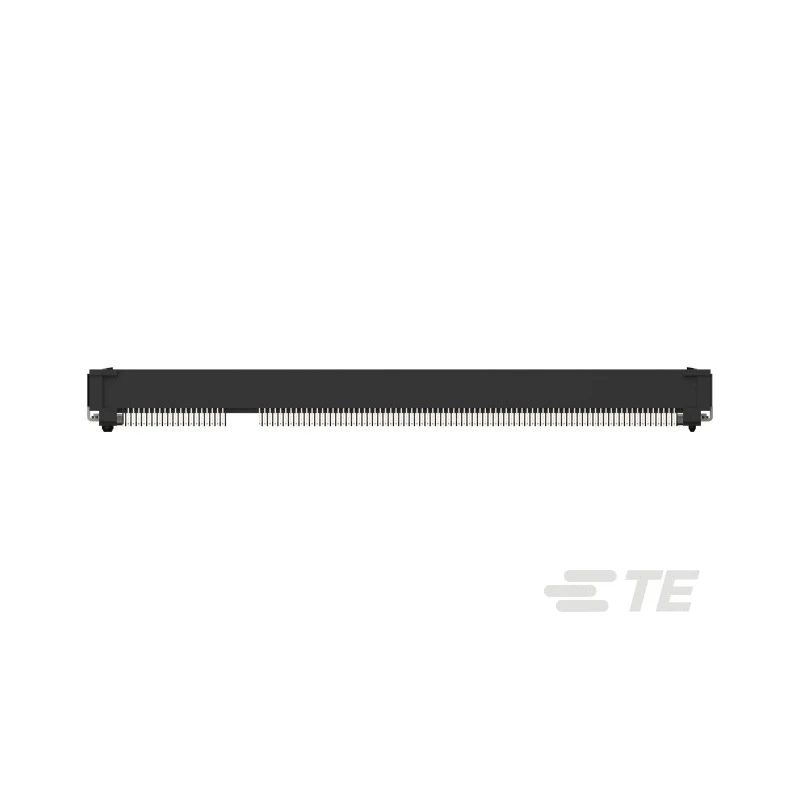

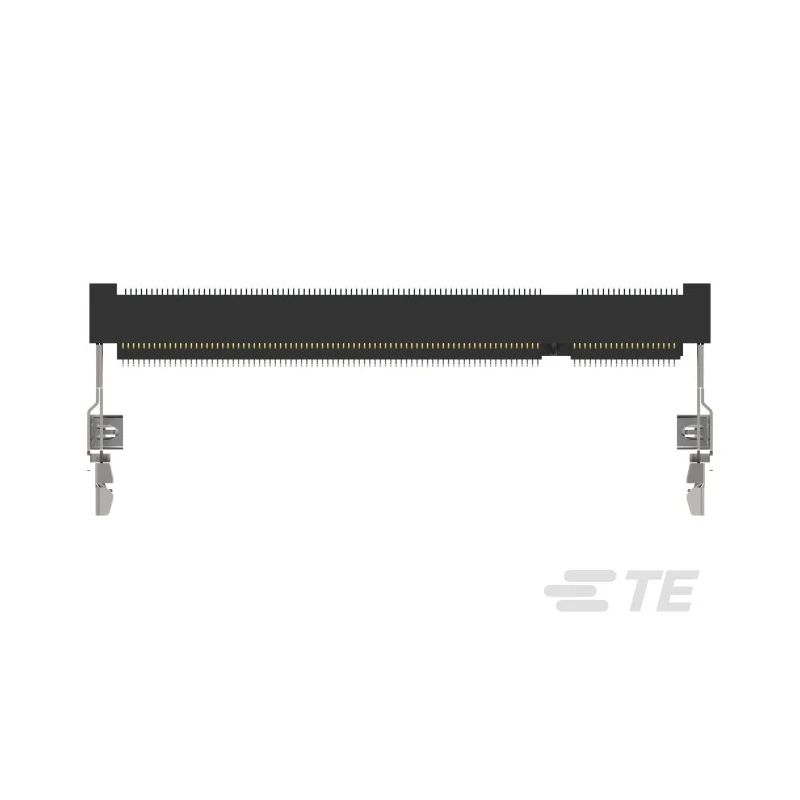

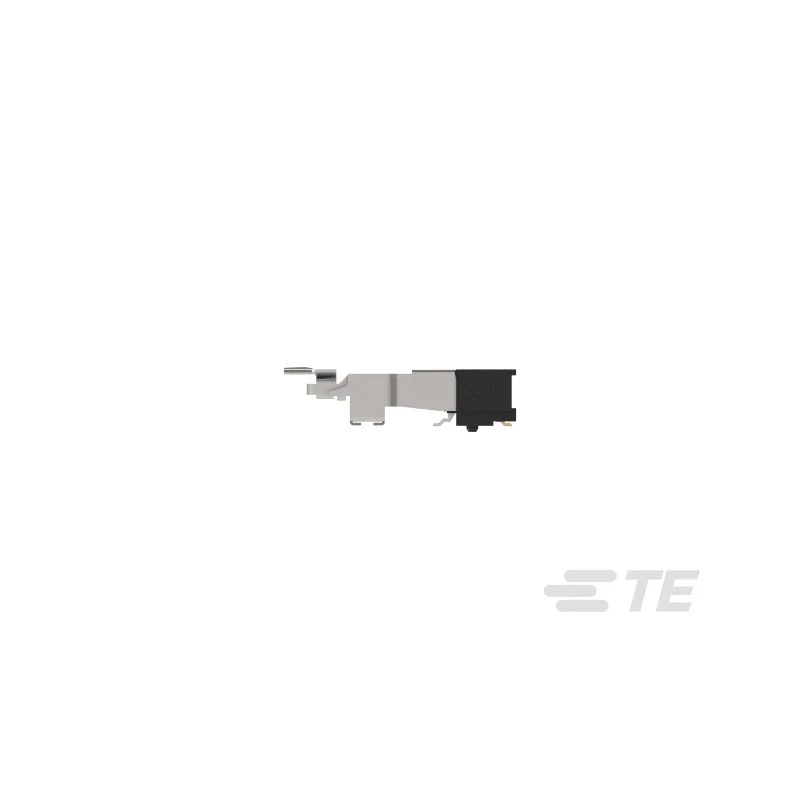

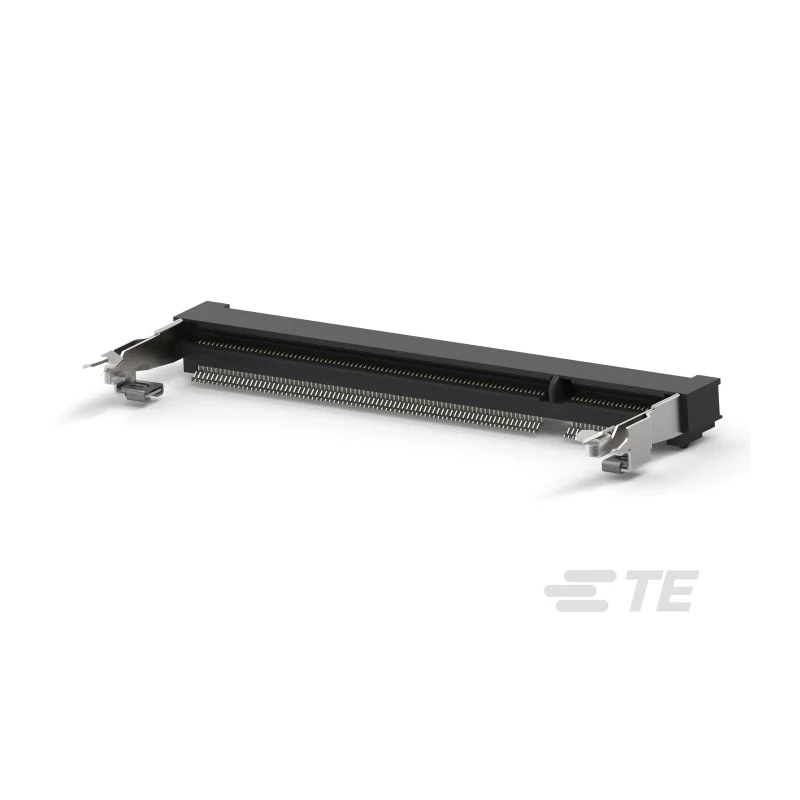

TE Connectivity DDR2 SO DIMM Series Right Angle Edge Connector Female, PCB Mount, 200-Contacts, 0.6 mm Pitch, 2 Row DDR2

TE Connectivity DDR2 SO DIMM Series Right Angle Edge Connector Female, model DDR2, is designed for high-density PCB connections in electronic components and computing devices. It features 200 gold-plated copper alloy contacts arranged in 2 rows with a 0.6 mm pitch, ensuring precise and durable connections in sensitive signal applications.

This edge connector is mounted on the PCB using a surface mount technique and features a right-angle orientation which is ideal for compact board designs. The housing is made from high-temperature thermoplastic material, enhancing its resilience in industrial and commercial environments.

The connector has a wide operational temperature range from -55°C to 85°C, supporting reliable performance in harsh conditions. It includes a keying mechanism to prevent incorrect mating and ensure proper connector alignment.

Applications include memory modules such as DDR2 SO DIMM, industrial automation systems, and computing hardware. The product is RoHS compliant, confirming its alignment with environmental and safety standards.

Right angle orientation provides reliable board positioning. Gold-plated copper alloy contacts for enhanced conductivity. Housing made of high temperature thermoplastic ensures durability. Operating temperature range from -55°C to 85°C allows robust performance.

Keying way design avoids incorrect mating. Surface mount PCB mounting style simplifies installation. Compatible with DDR2 SO DIMM memory modules. RoHS compliant for environmental safety. This Edge Connector is essential for electronic component assemblies in industrial, computing, and communication applications, offering precision and durability in design.
