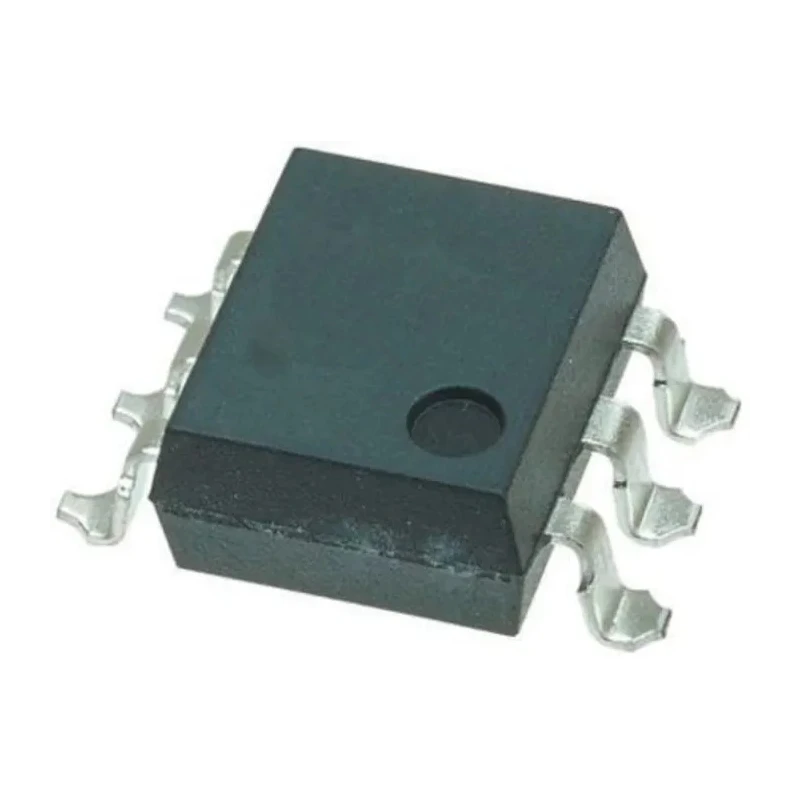

Vishay DC Input Surface Mount Optocoupler 6-Pin SMD MOSFET Output LH1510AABTR

Vishay LH1510AABTR DC Input Surface Mount Optocoupler is a 6-pin SMD device featuring a MOSFET output type designed for high reliability and efficiency in electronic circuitry. It is engineered to provide superior isolation and switching performance, making it highly suitable for industrial, telecommunication, and ground fault detection applications.

This optocoupler has a maximum forward voltage of 1.45V and supports a maximum input current of 2 mA with DC input type. The typical rise and fall times of 0.5 ms and 0.7 ms respectively ensure fast switching capabilities essential for responsive electronic systems. Its isolation voltage rating of 5300 Vrms offers effective protection and noise immunity between input and output circuits.

The device operates reliably over a broad temperature range from -40°C to 85°C, accommodating diverse environmental conditions. The surface mount package (SMD) with 6 pins allows for compact PCB mounting, supporting modern electronics assembly techniques. Packaged in Tape & Reel, it ensures efficient handling for automatic production lines.

The LH1510AABTR complies with multiple safety and environmental standards, including RoHS Directive 2002/95/EC, UL1577, CSA, DIN EN 60747-5-2, WEEE 2002/96/EC, and BSI, reflecting its high manufacturing and environmental compliance standards. Manufactured in Malaysia, it ensures consistent quality and durability.

This optocoupler is part of Vishay’s LH series, well-regarded for professional solid-state relays and optocouplers used in a variety of industrial and electronic applications where stable isolation and signal transfer are critical.

Features a surface mount type package suitable for PCB mounting. Delivers MOSFET output with a maximum forward voltage of 1.45V. Operates at a maximum input current of 2 mA with DC input current type. Typical rise and fall times are 0.5 ms and 0.7 ms respectively, enabling fast switching.

Rated isolation voltage of 5300 Vrms for robust electrical isolation. Wide operating temperature range from -40°C to 85°C for varied environmental conditions. Packaged in Tape & Reel for efficient automated assembly processes.

Complies with multiple standards including RoHS, UL1577, CSA, and WEEE directives. Ideal for telecom and ground fault applications requiring reliable solid-state relay performance. Manufactured in Malaysia with high quality and durability assurance.
