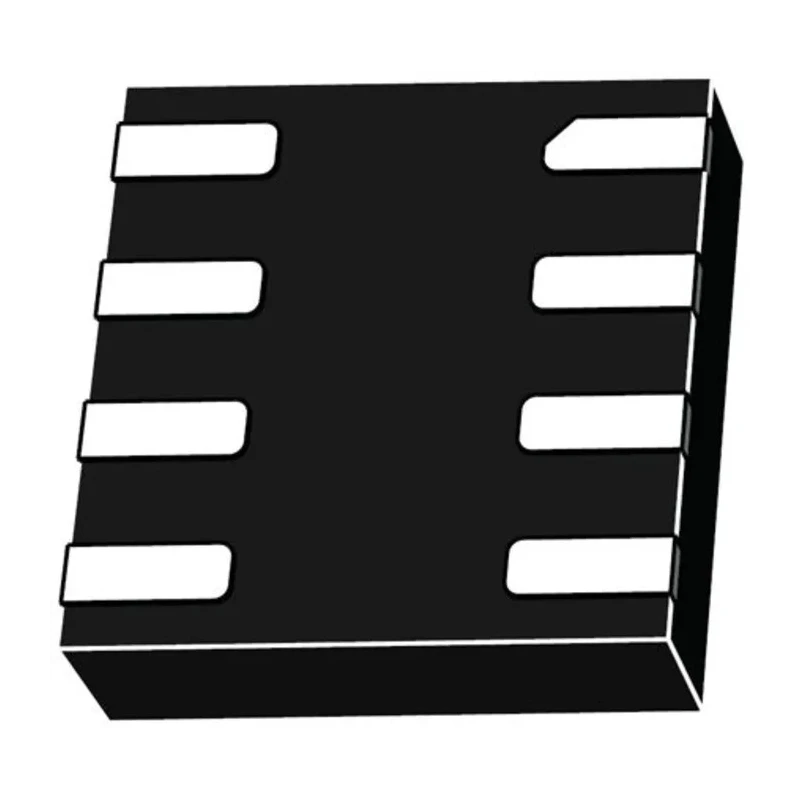

STMicroelectronics Operational Amplifier Dual Channel 8 MHz Gain Bandwidth Product 5.5V DFN 8-Pin TSV912IQ2T

STMicroelectronics TSV912IQ2T is a high-performance dual channel operational amplifier designed for low voltage operation with excellent speed to power consumption ratio. Featuring an 8 MHz gain bandwidth product, this device is housed in a compact 8-pin DFN package suitable for surface mount applications.

This operational amplifier operates reliably across a supply voltage range of 2.5 V to 5.5 V and delivers a low input bias current of 100 pA and input offset voltage of 7.5 mV, enabling precision analog signal processing. Its high slew rate of 4.5 V/μs ensures rapid response to dynamic input signals.

The TSV912IQ2T offers output current capacity up to 35 mA, appropriate for driving a variety of loads in instrumentation, signal conditioning, and automotive electronics. Its wide operating temperature span from -40°C to 125°C confirms suitability for demanding industrial and automotive environments.

Constructed to meet stringent RoHS compliance and automotive quality standards AEC-Q100, the device guarantees reliability and environmental safety. The amplifier’s physical dimensions are 2.15 mm length, 2.15 mm width, and 0.55 mm height, making it ideal for compact PCB layouts.

Additional features include ESD tolerance up to 5 kV, enhancing protection against electrostatic discharges, critical for robust circuit design. Features dual channel design with 8-pin DFN package. Operates at low supply voltage ranging from 2.5 V to 5.5 V.

Low input bias current of 100 pA for precision applications. High slew rate of 4.5 V/μs ensuring fast signal response. Input offset voltage up to 7.5 mV supporting accurate amplification. Output current capability of 35 mA suitable for driving loads.

Wide operating temperature range from -40°C to 125°C for harsh environments. Complies with RoHS and automotive standard AEC-Q100 certifications. Compact dimensions: length and width 2.15 mm, height 0.55 mm. ESD protection rated up to 5 kV for device reliability.

Ideal use cases include industrial electronics, automotive systems, instrumentation amplifiers, and low power analog signal processing circuits where dual low voltage operational amplifiers are required.
