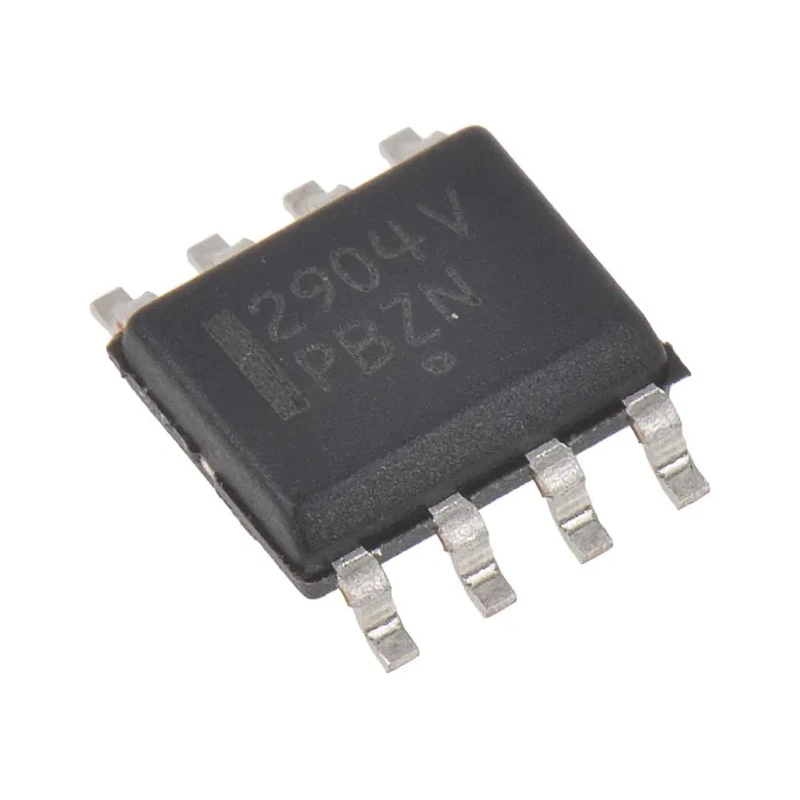

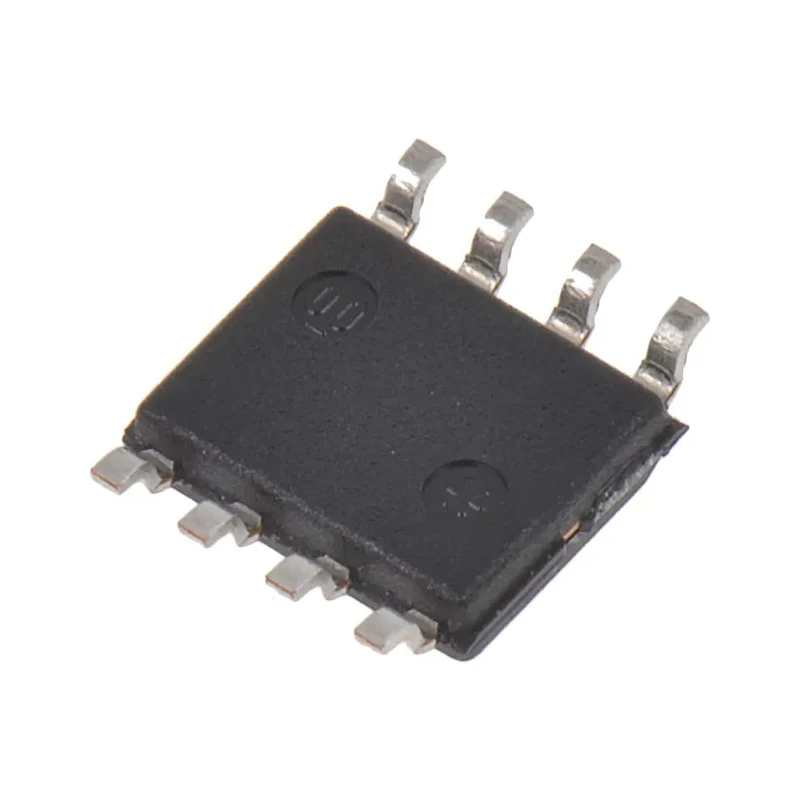

onsemi Operational Amplifier Dual Channel 8-Pin SOIC 3V to 32V LM2904VDR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.5mm |
| Length | 5mm |
| Model | LM2904VDR2G |
| Width | 4mm |
| Mount Type | Surface |
| Series | LM2904 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 32V |
| Minimum Supply Voltage | 3V |
| Input Bias Current | -250 nA |
| Vos - Input Offset Voltage | 7 mV |
| Input Offset Current | 200 nA |
| Single Supply Operation | 3V - 32V |
Key Features
- Features a surface mount SOIC package with an 8-pin configuration.
- Suitable for single supply operation ranging from 3V to 32V.
- Low input bias current and true differential inputs enhance precision.
- Includes ESD clamps on inputs for protection.
- Extended operating temperature from -40°C to 125°C supports automotive and industrial uses.
- Output current capability of up to 40 mA provides driving power for diverse applications.
- Complies with automotive standard AEC-Q100 for reliability.
- Common mode input range includes negative supply eliminating external biasing components.
Product Description
onsemi LM2904VDR2G is a dual operational amplifier designed for versatile amplification tasks, packaged in a surface mount 8-pin SOIC format. It supports supply voltages from 3V to 32V, enabling its use in both low and high voltage industrial, automotive and laboratory applications.
This amplifier features a true differential input stage with low input bias currents and internal compensation, ensuring stable and precise performance. The device includes Electrostatic Discharge (ESD) clamps on all input pins to improve durability and reliability under harsh conditions.
The common mode input range extends to the negative supply voltage, eliminating the need for external biasing components in many configurations. The output voltage swing also includes the negative power supply, facilitating improved linearity in signal processing tasks.
Key industrial applications include integrators, comparators, voltage clamps, current regulators, and linear voltage regulators, making this device adaptable in automation, automotive electronics, manufacturing controls, and process instrumentation.
The LM2904VDR2G meets the AEC-Q100 automotive standard, ensuring high reliability and performance in automotive electronics. Features surface mount SOIC package with 8 pins for compact PCB layout. Operates at a supply voltage range of 3V to 32V for flexible power supply options.
Dual channels allow concurrent amplification of two signals. Low input bias current and input offset voltage improve signal accuracy. Wide operating temperature from -40°C to 125°C suitable for harsh environments. Output current capability of 40mA to drive moderate loads.
Includes ESD protection clamps on inputs enhancing device longevity.
Package dimensions measure 5 mm in length, 4 mm in width, and 1.5 mm in height. This operational amplifier is ideal for integration into electronic circuits requiring reliable dual channel amplification.
Explore more Operational Amplifiers and semiconductor products on EnvMart to find solutions tailored for your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This operational amplifier operates with a supply voltage range from 3V to 32V, allowing for flexibility in various applications.
It has an output current capability of up to 40 mA, which is suitable for driving moderate loads in various applications.
The package dimensions are 5 mm in length, 4 mm in width, and 1.5 mm in height, making it suitable for compact PCB layouts.
Yes, it complies with the AEC-Q100 automotive standard, ensuring reliability in automotive electronics.
It comes in a surface mount SOIC package with an 8-pin configuration, facilitating easy integration into electronic circuits.
The input bias current for this operational amplifier is -250 nA, which enhances its precision in signal processing tasks.
The common mode input range includes the negative supply voltage, which eliminates the need for external biasing components in many configurations.
The input offset voltage is specified at 7 mV, contributing to the accuracy of the amplifier's performance.
This model features two channels, allowing for concurrent amplification of two signals.
