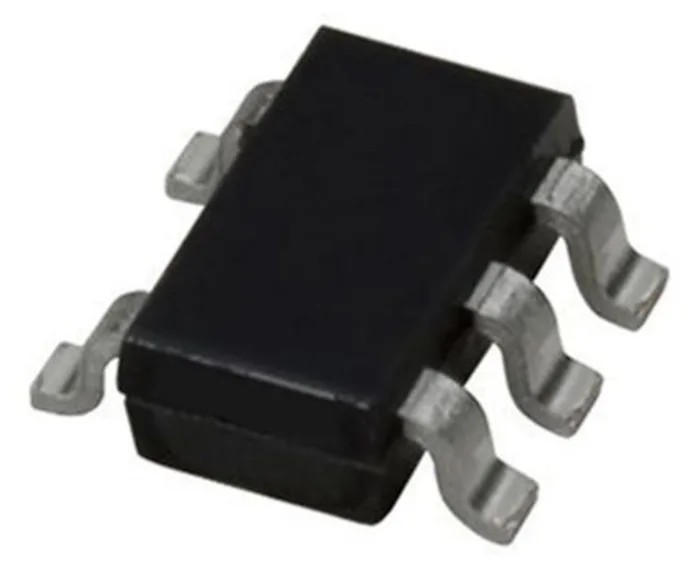

onsemi Operational Amplifier LMV321SQ3T2G, 1 MHz Gain Bandwidth, 6V Max Supply, 5-Pin SC-70 Package
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 2.2mm |
| Model | LMV321SQ3T2G |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | NCV321 |
| Output Current | 60mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 1 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 1V/μs |
Key Features
- Amplifier operates from 2.7 V to maximum supply voltage of 6 V.
- Low input bias current of 1 nA enables precision applications.
- Input offset voltage is 7 mV with a slew rate of 1 V/μs.
- Suitable for operation from -40°C to 85°C and meets AEC-Q100 automotive standards.
- Rail-to-rail output with low quiescent current conserves power.
- Compact SC-70 surface-mount package measures 2.2 mm by 1.35 mm by 1 mm.
- Single channel device with 5-pin configuration supports up to 60 mA output current.
- Fully RoHS compliant for environmental safety.
Product Description
onsemi LMV321SQ3T2G operational amplifier is a low power, single-channel device with a 1 MHz gain bandwidth product, housed in a compact 5-pin SC-70 surface-mount package. It operates efficiently from 2.7 V to 6 V supply voltages, making it ideal for portable and battery-powered applications.
Featuring a low input bias current of 1 nA and an input offset voltage of 7 mV, this amplifier ensures high precision and stability. The slew rate of 1 V/μs supports moderately fast signal processing tasks. The device operates reliably across a temperature range of -40°C to 85°C, complying with AEC-Q100 automotive standards for quality and robustness.
The rail-to-rail output stage allows maximum dynamic signal range, and low quiescent current makes it suitable for energy-efficient designs. The 5-pin SC-70 package dimensions of 2.2 mm length, 1.35 mm width, and 1 mm height provide a compact footprint suitable for dense PCB layouts.
This operational amplifier supports one channel with pin count of 5. Maximum output current capability is 60 mA. The device is fully RoHS compliant ensuring environmental safety. Typical applications include signal conditioning, general-purpose amplification, and industrial control systems.
Its compact packaging and robust electrical characteristics enable deployment in automotive and industrial sectors.
This onsemi operational amplifier LMV321SQ3T2G fits within the Semiconductor category, appropriate for use in electronics, industrial, automotive, and manufacturing environments. Its precise electrical characteristics and compact design layout support a broad range of engineering solutions requiring dependable analog signal amplification.
Browse the EnvMart category for more semiconductor amplifiers and Operational Amplifier products to find the perfect fit for your designs and projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz.
The maximum supply voltage for the LMV321SQ3T2G is 6 V.
This operational amplifier has a low input bias current of 1 nA.
It operates reliably within a temperature range of -40°C to 85°C.
This model supports one channel.
The maximum output current capability is 60 mA.
It comes in a compact 5-pin SC-70 surface-mount package.
The input offset voltage is 7 mV.
The slew rate of this operational amplifier is 1 V/μs.
Yes, it is fully RoHS compliant, ensuring environmental safety.
It meets the AEC-Q100 automotive standard.
The dimensions of the SC-70 package are 2.2 mm in length, 1.35 mm in width, and 1 mm in height.
