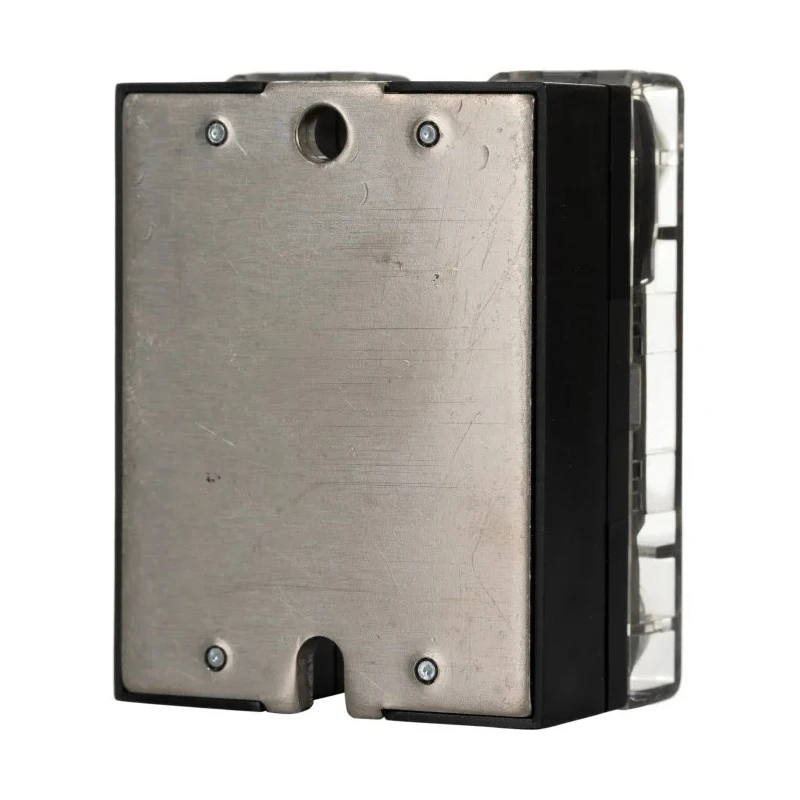

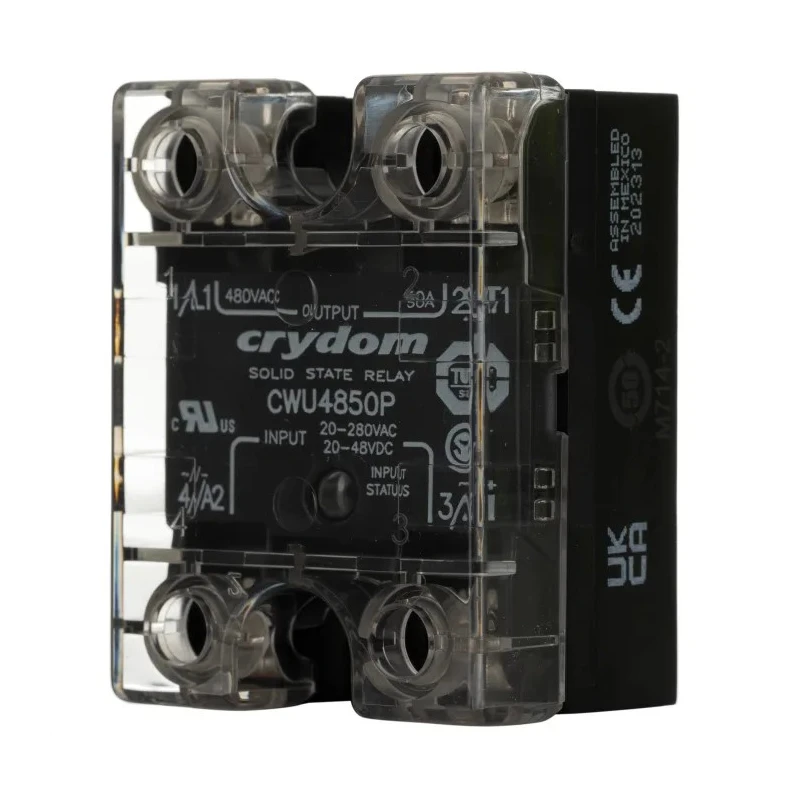

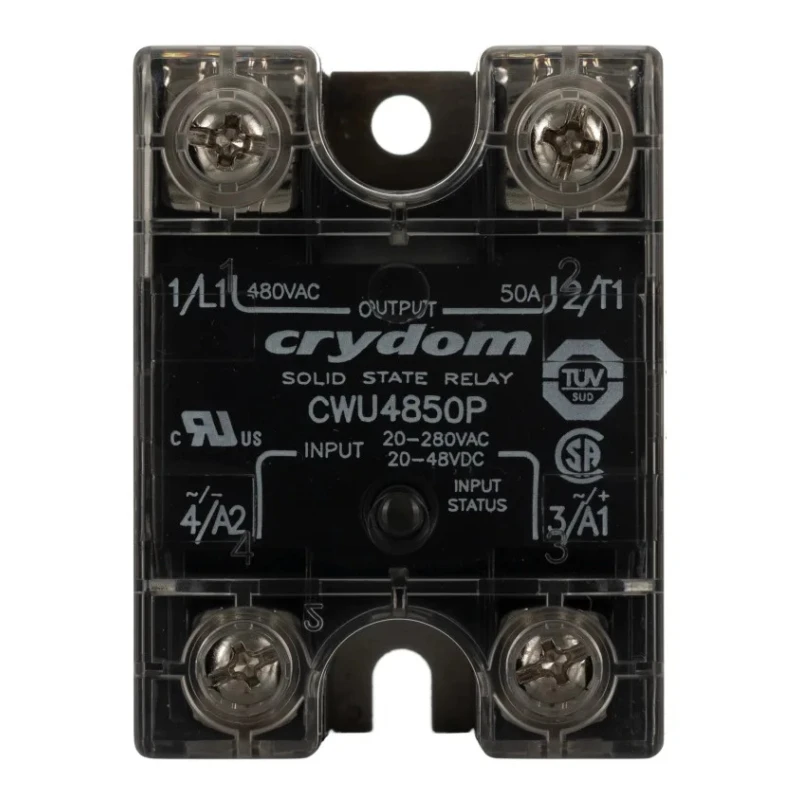

Crydom CW48 Series Solid State Relay 50 A Load Panel Mount 660 V AC Load 280 V AC Control CW48
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 57.3mm |
| Length | 44.5mm |
| Model | CW48 |
| Mount Type | Panel |
| Output type | SCR |
| Series | CW48 |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Maximum Load Current | 50A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 660V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 20V ac/dc |
| Maximum Control Voltage | 280V ac |
| Off State Leakage Current | 1mA |
Key Features
- IP20-rated removable cover ensures protection against touch and large tool ingress.
- Rated for 50 A load current for demanding electrical switching operations.
- Wide input control voltage range accommodates 20 to 48 V DC and 20 to 280 V AC inputs.
- Compact and lightweight design with 81.53 g weight minimises load on circuits.

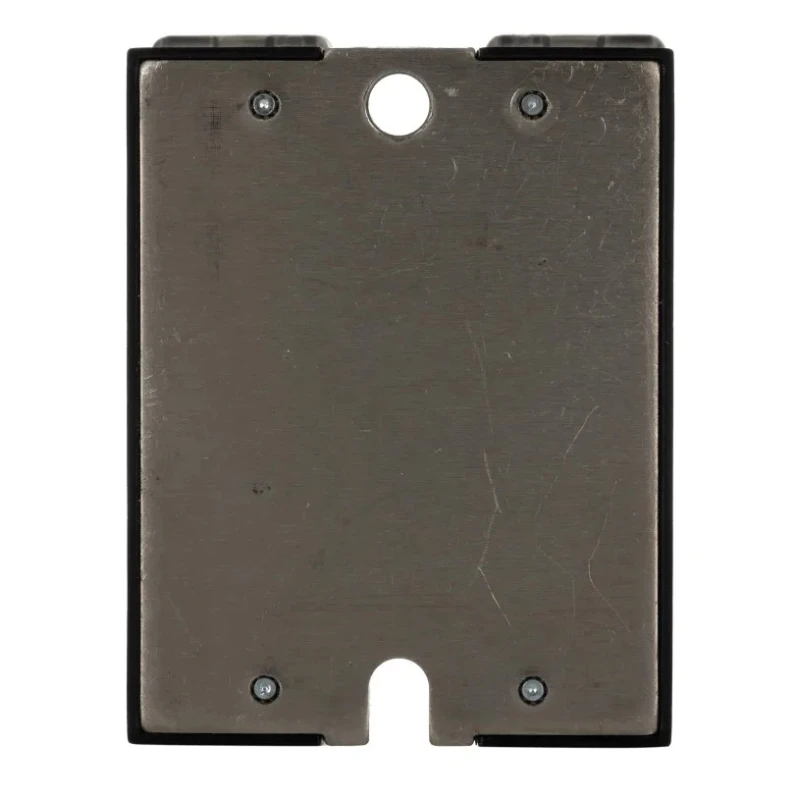

- Aluminium baseplate provides resistance to corrosion and impact for long service life.
- Operating temperature range from -40°C to 80°C ensures suitability for harsh environments.
- Output type is SCR with a maximum turn-on time of 20 ms for fast switching.
- Compliance with RoHS standards for environmental safety.
Product Description
Crydom CW48 Series Solid State Relay CW48 is a high-performance industrial relay designed for efficient switching of electrical loads up to 50 A at 660 V AC. Featuring a panel mount form factor and screw terminal connections, it offers durable installation and reliable operation across varied industrial, manufacturing, medical, and automation environments.
This SSR supports control voltages ranging from 20 V AC/DC minimum up to 280 V AC maximum, allowing versatile compatibility with different control circuits. Its off-state leakage current is a minimal 1 mA, and the device uses an SCR output for robust conduction and fast actuation with a maximum turn-on time of 20 milliseconds.
The relay’s aluminium baseplate resists corrosion and impact, extending durability in challenging conditions, while its removable cover rated at IP20 ensures operator safety by preventing accidental contact with internal components. Operating temperature ranges from -40°C to 80°C, facilitating use in cold or heated industrial settings.
Crydom CW48 Series SSRs are frequently used in I/O subsystems, integrated circuit equipment, medical technologies, and other automation systems requiring silent, maintenance-free electrical switching without mechanical wear.
IP20 touch-proof cover protects against dust and contact with conductors larger than 12 mm. Load current capacity up to 50 A enables control of substantial electrical devices. Control voltage compatibility with 20 - 48 V DC and 20 - 280 V AC inputs for versatile deployment.
Compact dimensions (Height: 57.3 mm, Length: 44.5 mm) suitable for panel installations. Low off-state leakage current of 1 mA improves energy efficiency. Conforms to RoHS directives ensuring environmental compliance.
With reliable performance, compact size, and flexible voltage ranges, the Crydom CW48 Series SSR is an ideal solid-state relay solution for industrial automation, electrical control panels, manufacturing equipment, and medical device control applications.
Explore the complete Crydom range and related Solid State Relays at EnvMart to enhance your electric control systems with professional-grade components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 50 A, making it suitable for demanding electrical switching operations.
It accommodates a wide control voltage range from 20 to 48 V DC and 20 to 280 V AC, allowing for versatile compatibility with various control circuits.
The operating temperature range is from -40°C to 80°C, enabling its use in both cold and heated industrial environments.
This model uses an SCR output type, which allows for robust conduction and fast actuation with a maximum turn-on time of 20 milliseconds.
The dimensions are 57.3 mm in height and 44.5 mm in length, making it compact for panel installations.
The off-state leakage current is minimal at 1 mA, which improves energy efficiency during operation.
This relay supports panel mounting with screw terminal connections for durable installation.
Yes, it conforms to RoHS standards, ensuring environmental compliance and safety.
It features an aluminium baseplate that provides resistance to corrosion and impact, extending its durability in challenging conditions.
This solid state relay is frequently used in industrial automation, electrical control panels, manufacturing equipment, and medical device control applications.
This model weighs 81.53 g, which helps minimize the load on circuits during installation.
It has an IP20-rated removable cover that protects against touch and large tool ingress, ensuring operator safety.
