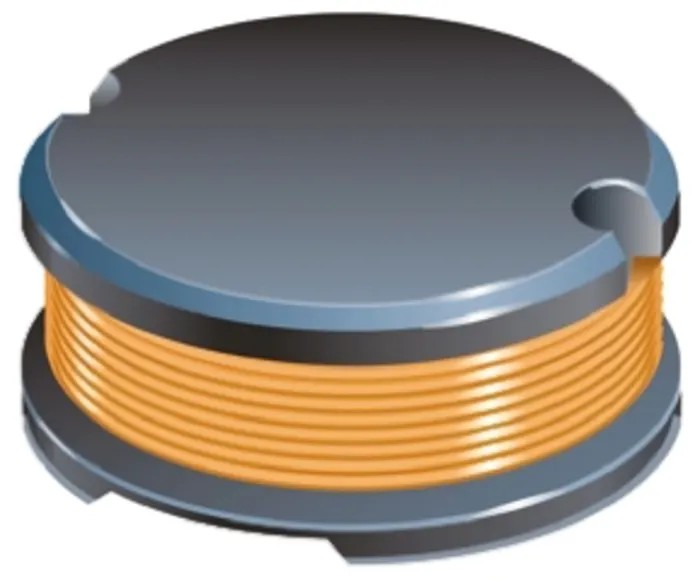

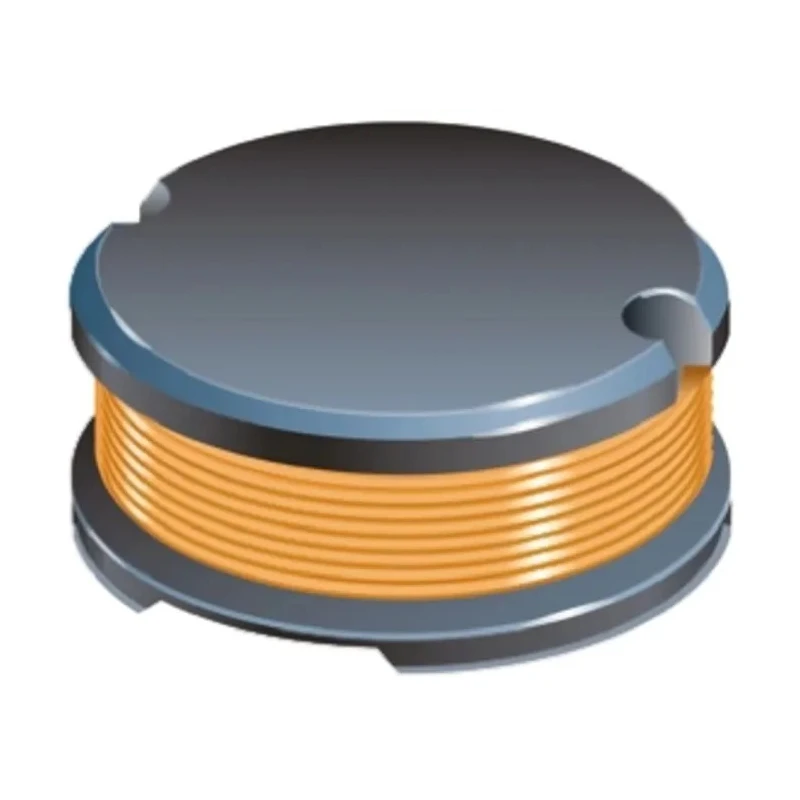

Bourns Wirewound Surface Mount Inductor 0805 Case, 330 μH ±10 %, 400 mA DC Current, Ferrite DR Core SDR0805
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 7.8mm |
| Brand | Bourns |
| Height | 5.3mm |
| Length | 7.8mm |
| Model | SDR0805 |
| Depth | 7.8mm |
| Packaging | Reel |
| Series | SDR0805 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 330μH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 400mA |
| Maximum DC Resistance | 1.26Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 4MHz |
| Minimum Quality Factor | 12 |
| Inductor Construction | Wirewound |
Key Features
- The inductor features a compact 0805 package case suitable for surface mounting.
- Constructed with a Ferrite DR core for efficient magnetic flux conduction.
- Maximum DC resistance of 1.26 Ω ensures low power loss in circuits.
- Operates reliably within a temperature range of -40°C to 125°C.
- Designed for use in power supplies, DC/DC converters, and other electronic circuits.
- Compliant with RoHS environmental standards.
- Maximum self-resonant frequency is 4 MHz for high-frequency applications.
- Minimum quality factor of 12 supports effective performance in filtering and tuning roles.
Product Description
Bourns SDR0805 model is a high-quality Wirewound Surface Mount Inductor with an 0805 package case designed for compact and efficient PCB layouts. This inductor provides 330 μH inductance with a tolerance of ±10 %, suitable for power regulation and filtering tasks in electronic assemblies.
The component utilizes a Ferrite DR core, delivering stable inductance and minimizing losses, making it ideal for DC/DC converters and power supplies in industrial and commercial electronics.
Its operating temperature range from -40°C up to 125°C ensures dependable performance across demanding environmental conditions. The maximum DC current rating of 400 mA and a maximum DC resistance of 1.26 Ω optimize circuit efficiency by reducing energy loss and heat generation.
With a maximum self-resonant frequency of 4 MHz and a minimum quality factor of 12, this inductor can handle a variety of RF and switching frequency applications. The product is RoHS compliant, reflecting its environmental safety standards and suitability for global electronics manufacturing.
The inductor features a compact 0805 package suitable for surface mounting on printed circuit boards. Wirewound construction enhances magnetic properties and reliability. Ferrite DR core material provides efficient flux conduction and performance stability.
Wide operating temperature range ensures versatility in different working environments. Reel packaging facilitates automated manufacturing processes. Adequate current and resistance ratings support multiple electronic applications.
High-quality factor and self-resonant frequency enable effective signal processing. Compliance with international RoHS standards for environmental and health safety. This surface mount inductor is well suited for use in industrial electronics, telecommunications equipment, power supply circuits, and consumer electronic devices.
It combines compact size and robust electrical characteristics to optimize the performance of next-generation electronic products. Explore Bourns components and other Surface Mount Inductors on EnvMart for high reliability and technical excellence in your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SDR0805 surface mount inductor has an inductance value of 330 μH with a tolerance of ±10%.
This model can handle a maximum DC current of 400 mA, optimizing circuit efficiency and reducing energy loss.
The maximum DC resistance of this inductor is 1.26 Ω, which helps in minimizing power loss in circuits.
It operates reliably within a temperature range of -40°C to 125°C, making it suitable for various environmental conditions.
The maximum self-resonant frequency of this model is 4 MHz, allowing it to be used in high-frequency applications.
This inductor utilizes a Ferrite DR core, which provides efficient magnetic flux conduction and stable inductance.
The inductor is housed in a compact 0805 package case, suitable for surface mounting on printed circuit boards.
The minimum quality factor for this model is 12, supporting effective performance in filtering and tuning applications.
Yes, the Bourns SDR0805 is compliant with RoHS environmental standards, indicating its suitability for global electronics manufacturing.
The dimensions of this inductor are 7.8 mm in length, width, and depth, with a height of 5.3 mm.
This surface mount inductor is designed for use in power supplies, DC/DC converters, and various electronic circuits.
The inductor is packaged in a reel, facilitating automated manufacturing processes.
