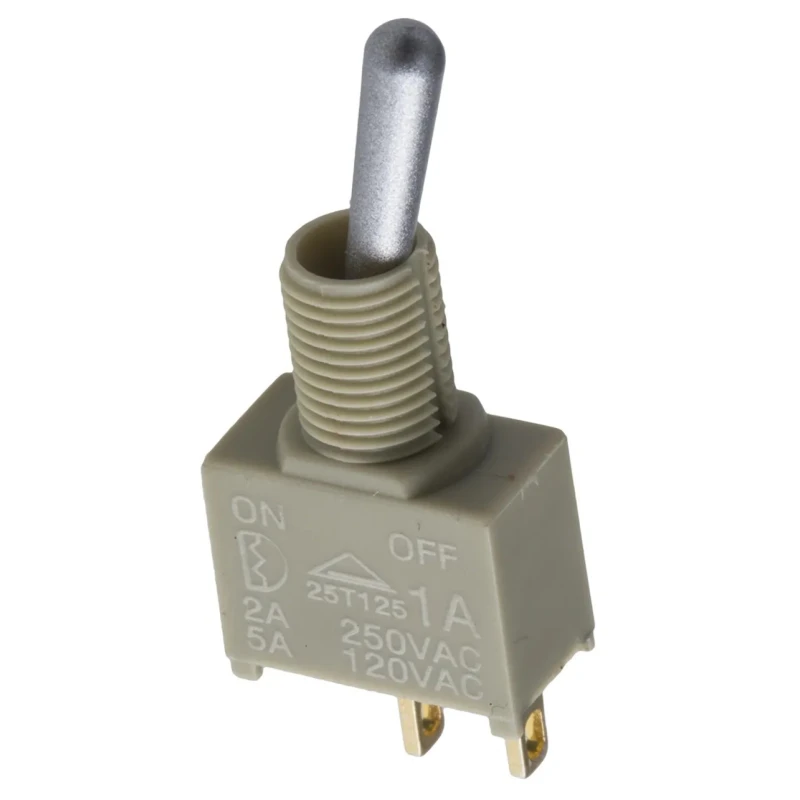

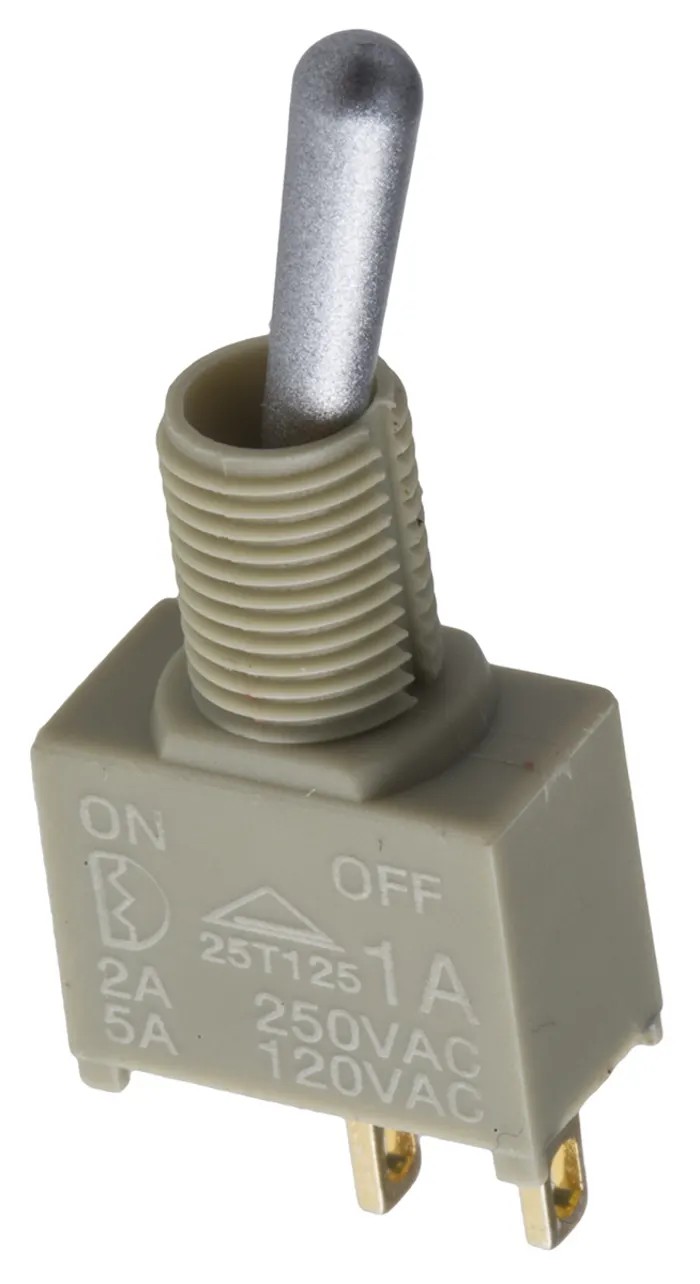

RS PRO PCB Mount Toggle Switch On-On SPDT Solder Terminal 12 V dc 112 V ac 7346987P

RS PRO 7346987P Toggle Switch is a compact, PCB mounted miniature toggle switch designed for electrical and automation applications requiring robust and reliable switching solutions. Rated for 12 V dc and 112 V ac contact voltages, the switch features a single-pole double-throw (SPDT) contact configuration with an On-On switch operation, suitable for on-board control circuits and system integrations.

The actuator is crafted from chrome plated brass to provide durable mechanical performance, supported by a mechanical life expectancy of 30000 cycles. This toggle switch also carries an IP67 rating, ensuring resistance against dust ingress and water immersion, making it ideal for use in demanding industrial environments including manufacturing equipment, control panels, and instrumentation.

The switch handles a contact current of 5 amperes and is designed to operate reliably across a temperature range from -30°C to 85°C. The minimum insulation resistance is 1000 MΩ along with a dielectric strength of 1000 Vrms at sea level, ensuring secure electrical isolation and operational safety.

With compact dimensions of 33.71 mm length, 12.7 mm height, and 6.6 mm width, this miniature toggle switch optimizes space on densely populated PCBs. It uses solder terminals for mounting, facilitating straightforward installation in automated assembly processes.

The product is RoHS compliant and lead-free, aligning with modern environmental standards and safety regulations. This makes it well suited for industrial automation, electrical equipment, and electronic device manufacturing sectors.

This Toggle Switch features a robust chrome plated brass actuator material ensuring durability. It has a compact form factor with dimensions 33.71mm length, 12.7mm height, and 6.6mm width. The switch operation is On-On with SPDT contact configuration supporting a contact current of 5 A.

IP67 rating guarantees excellent sealing for use in harsh environments. The switch supports a mechanical life of 30000 cycles for long-term reliability. It operates over a wide temperature range from -30°C to 85°C. The minimum insulation resistance is 1000 MΩ with dielectric strength of 1000 Vrms at sea level.

The switch is RoHS compliant and lead-free, suitable for environmentally friendly applications. This product is non-illuminated and uses solder terminal connection for PCB mounting. Explore more industrial switches and automation components in the Electronics & Electricals category on EnvMart for efficient and reliable system integration.
