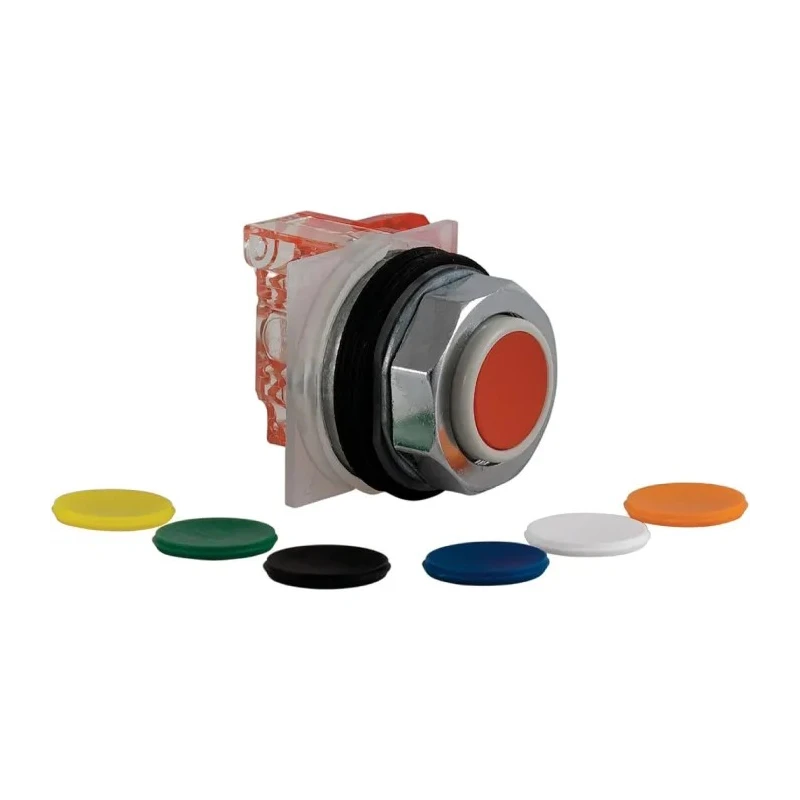

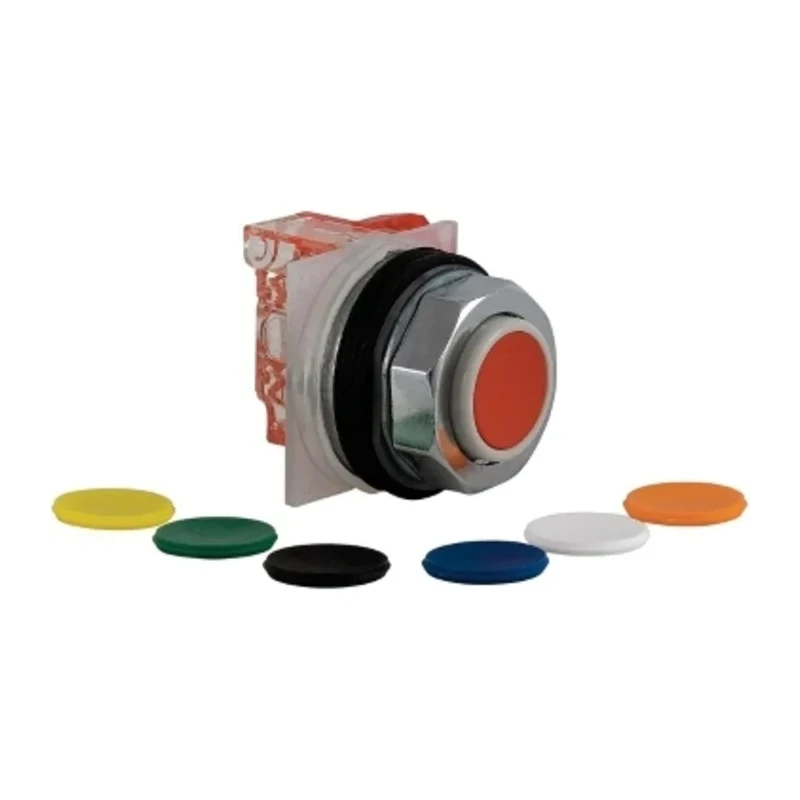

Square D Harmony 9001K Series Push Button Switch Spring Return Panel Mount 30 mm Cutout SPST 10A 125V dc 240V AC 9001KR3UH5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Square D |
| Length | 91.4mm |
| Model | 9001KR3UH5 |
| IP Rating | IP66 |
| Width | 55.9mm |
| Mount Type | Panel |
| Series | Harmony 9001K |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | 1 NO |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 30 mm |
| Terminal type | Screw |
| LED Colour | Black, Blue, Green, Orange, Red, White, Yellow |
| Switch Operation | Spring Return |
| Contact DC Voltage | 125V dc |
| Actuator Style | Octagonal |
| Switch Contact Current | 10A |
| Contact AC Voltage | 240V |
| Legend | Blank |
| Projecting non illuminated square switchBrand | Square D |
Key Features
- Equipped with 1 normally open single pole single throw (SPST) switch contacts rated for 10A current.
- Suitable for operating voltages of 125V DC and 240V AC.
- Octagonal actuator with interchangeable coloured heads including black and blue.
- IP66 protection for dust tightness and resistance to powerful water jets.
- Mechanical durability rated at 5 million cycles for reliable performance.
- Operating temperature range from -25°C to 70°C ensures use in varied industrial environments.
- Terminals use screw clamps for secure electrical connection.
- Complies with CSA, UL, EN/IEC, and JIS standards for safety and reliability.
Product Description
Schneider Electric 9001KR3UH5 Harmony 9001K Series Push Button Switch is a robust industrial control device designed for panel mounting with a 30 mm cutout size. Featuring spring return operation and SPST 1 NO contact configuration, it enables reliable momentary control.
This push button includes an octagonal actuator with chromium plated metal finish and a Zamak based fixing collar offering excellent durability and ease of maintenance. The switch supports contact currents up to 10A suitable for both 125 V DC and 240 V AC applications.
With an IP66 rating, the switch is dust-tight and protected against powerful water jets, making it suitable for harsh environments both indoors and outdoors. It withstands extreme temperature ranges from -25°C to 70°C and mechanical endurance rated for 5 million cycles, ensuring long-lasting performance.
Terminals are secured by screw clamp connections facilitating safe and stable wiring. The dimensions of 91.4 mm length and 55.9 mm width allow easy integration into control panels. The switch meets strict international safety and quality standards such as CSA C22.2 No. 14, UL 508, EN/IEC 60947-5-1, and JIS C 4520 among others.
Typical industrial applications include emergency stop scenarios in automotive manufacturing, factory automation lines, and commercial warehouse control panels requiring durable and dependable push button switches.
Equipped with 1 normally open (NO) single pole single throw (SPST) contact rated for 10A switching current. Operates at 125 V DC and 240 V AC voltages. Octagonal actuator style with multiple interchangeable color profiles including black and blue.
IP66 rated for dust and water protection per IEC 60529 standards. Mechanical durability of 5 million cycles ensures reliable operation. Operating temperature range from -25°C to 70°C. Screw terminal connection for ease of wiring.
Compact size suitable for panel mounting with 30 mm cutout. Compliant with multiple international standards for safety and performance. Ideal for industrial control stations, emergency stop circuits, and automation environments.
Explore the full range of Push Button Switches in the Electronics & Electricals category at EnvMart for comprehensive industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch has a maximum current rating of 10A.
It operates at 125V DC and 240V AC.
This model has an IP66 rating, making it dust-tight and resistant to powerful water jets.
The operating temperature range is from -25°C to 70°C.
It features a single pole single throw (SPST) configuration with one normally open (NO) contact.
The required cutout size for panel mounting is 30 mm.
The mechanical durability is rated for 5 million cycles, ensuring reliable performance over time.
It uses screw terminals for secure electrical connections.
The switch features an octagonal actuator style.
It complies with CSA, UL, EN/IEC, and JIS standards for safety and reliability.
The dimensions are 91.4 mm in length and 55.9 mm in width.
The actuator heads are available in multiple colors, including black, blue, green, orange, red, white, and yellow.
