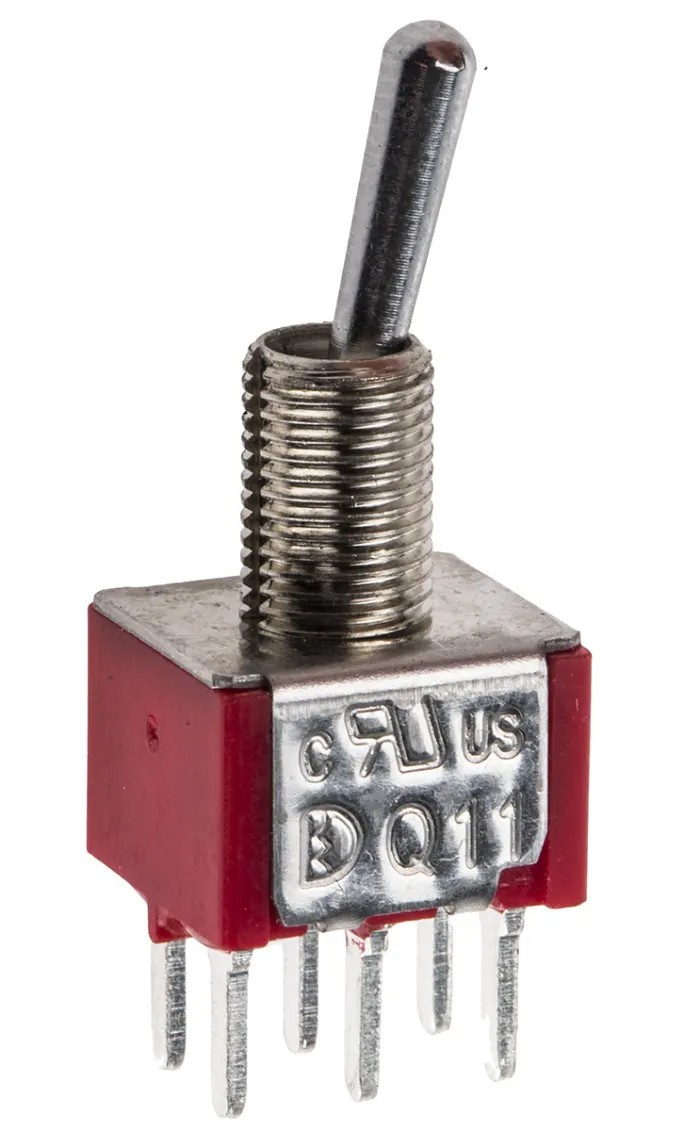

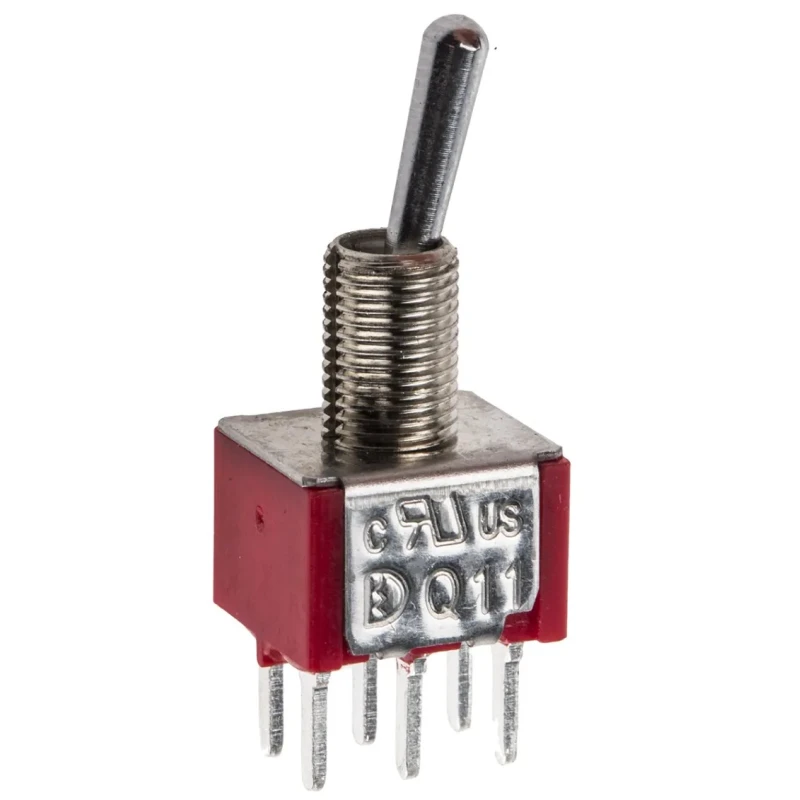

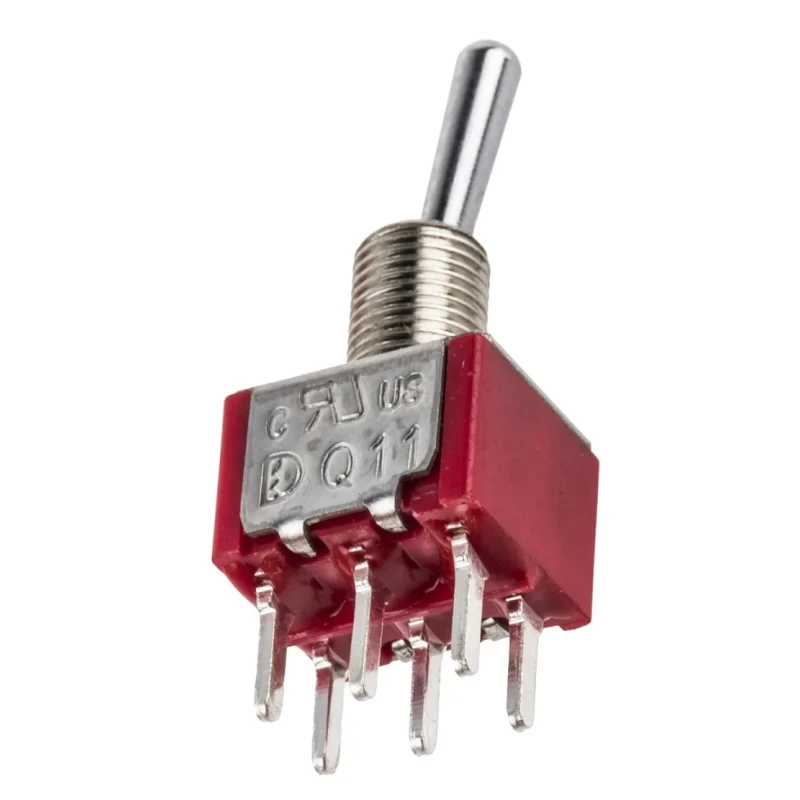

RS PRO Toggle Switch PCB Mount On-None-On DPDT Through Hole Terminal 26 V dc 112 V ac 734-7025

Name: RS PRO Toggle Switch PCB Mount On-None-On DPDT Through Hole Terminal 26 V dc 112 V ac 734-7025
Brand: RS PRO
SKU: 408778
Price: 366.4 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	734-7025
Mount Type	PCB
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-None-On
Minimum Operating Temperature	-30°C
Panel Cutout Size	6.35 mm
Terminal type	Through Hole
Standards/Approvals	RoHS & Lead Free
Switch Operation	On-None-On
Actuator Length	10.41mm
Contact DC Voltage	26V dc
Switch Contact Current	5A
Mechanical Life	40000Cycles
Contact AC Voltage	112V ac
Actuator Material	Chrome Plated Brass
RND Toggle Switch, Panel Mount Mount, On-On, DPDT, Solder Lug TerminalBrand	RND

Key Features

DPDT contact configuration provides double pole double throw switching control.
Switch operation type is On-None-On, enabling momentary off position.
Suitable for PCB mounting with through hole terminal type for secure connection.
Rated for 5 A contact current, compatible with moderate electrical loads.
Panel cutout size of 6.35 mm ensures easy installation in control panels.
Operates reliably between -30°C to 85°C ambient temperatures.
Actuator length is 10.41 mm, made of chrome plated brass for durability.
Designed with minimum insulation resistance of 1000 MΩ and dielectric strength of 1000 Vrms.

Product Description

The RS PRO 734-7025 toggle switch is a PCB mount miniature switch featuring an On-None-On DPDT configuration suitable for a wide range of industrial, automation, and electrical applications. Designed with through hole terminals, it ensures robust and secure connections to printed circuit boards for reliable switching performance.

This switch supports a maximum contact current of 5 A and operates safely up to 26 V dc and 112 V ac voltage levels, making it ideal for moderate power control tasks in manufacturing, HVAC control panels, laboratory instrumentation, and commercial electrical systems.

Featuring a chrome plated brass actuator 10.41 mm in length, the switch offers excellent mechanical durability with a life expectancy of 40,000 cycles. Its operating temperature range spans from -30°C to +85°C, allowing it to function effectively under varied environmental conditions.

The RS PRO toggle switch complies with RoHS and Lead Free standards, ensuring environmentally responsible manufacturing. Its low contact resistance and high insulation resistance (minimum 1000 MΩ) combined with a dielectric strength rating of 1000 Vrms guarantee secure electrical isolation and minimal signal loss.

DPDT contact configuration for versatile electrical routing capabilities. On-None-On switch operation enables momentary off state functionality. PCB mount type with through hole terminals facilitates mounting and soldering.

5 A rated contact current suitable for a variety of electrical devices. Operating temperatures from -30°C to 85°C suitable for harsh environments. Actuator crafted from chrome plated brass enhances durability and tactile feel.

Compliant with RoHS and Lead Free directives. Long mechanical life of 40,000 switching cycles ensures reliability.

This miniature Toggle Switch is widely used in electrical panels, automation devices, and laboratory equipment requiring dependable on-off switching with a momentary neutral position. Its robust design and compliance with industry standards make it an excellent choice for engineering professionals and manufacturers.
