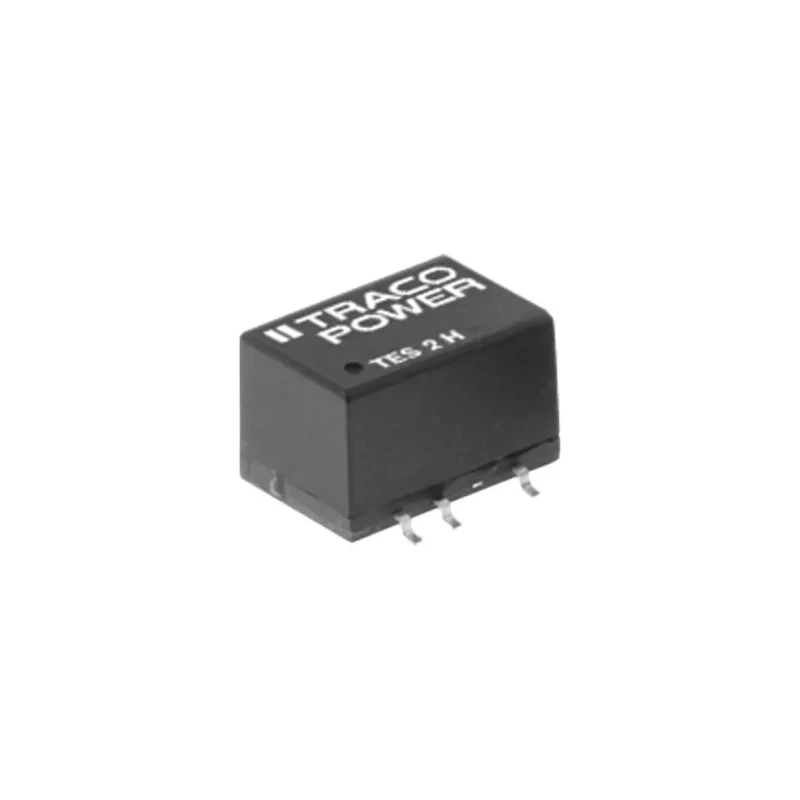

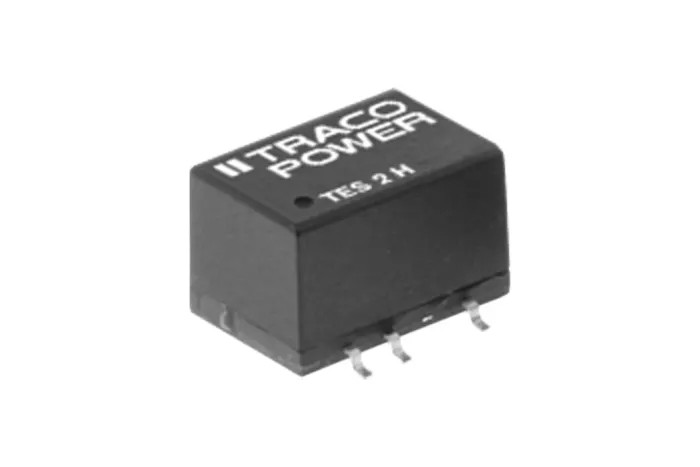

TRACOPOWER Dual Output 2 W Surface Mount DC/DC Converter, 15V dc/ 66 mA, 13.2V dc Input, 10.8V Input TES 2-1223H

TRACOPOWER TES 2-1223H is a high-reliability dual output DC/DC converter designed for industrial and electronic applications requiring stable isolated power with low power consumption and compact size. It delivers 2 watts of output power with output voltages of ±15V dc at 66 mA output current each, supporting a wide input voltage range from 10.8 V to 13.2 V dc. The compact surface mount package measures 16.3 mm in length and 8.6 mm in depth, enabling integration into space-constrained printed circuit boards.

This TES 2H series converter features an input voltage ratio of 2:1, providing flexibility in power supply options and ensuring stable output under varying input conditions. The device guarantees an isolation voltage of 1.5 kV dc between input and output, ensuring protection and noise immunity in industrial environments.

With an efficiency rating of 80%, the converter minimizes energy loss and heat generation, making it suitable for applications with thermal constraints. It possesses a high mean time between failures (MTBF) of approximately 2 million hours, reflecting exceptional reliability for demanding applications.

The operating temperature range from -40°C to 90°C allows the converter to function reliably in extreme thermal environments, making it ideal for industrial automation, embedded systems, telecommunications, and instrumentation powering needs. It is qualified for lead-free reflow soldering processes aligning with IPC/JEDEC J-STD-020 standards for modern electronic manufacturing.

Compact surface mount design with standard footprint dimensions. Dual isolated outputs with ±15V dc output voltages at 66 mA output current. Isolation voltage of 1.5 kV dc for safety and noise immunity. High efficiency of up to 80% reduces power loss and thermal load.

Wide input voltage range from 10.8 V to 13.2 V dc with 2:1 input ratio. Long MTBF of 2,000,000 hours ensures high reliability. Operating temperature from -40°C to 90°C for harsh industrial use. Lead-free reflow solder process compliant for modern PCB integration.

Unregulated isolated outputs suitable for industrial and electronic devices. Manufactured in Taiwan, Province Of China with quality standards.

This DC/DC converter is highly suited for industrial power supplies, control systems, communication equipment, and embedded electronics requiring isolated dual voltage rails and stable power under challenging environmental conditions. It supports efficient and reliable power conversion in compact form factor surface mount packages.
