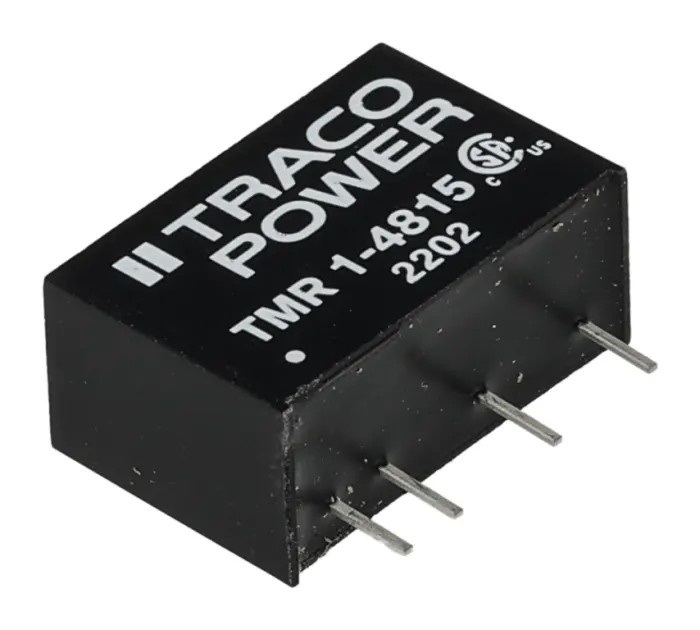

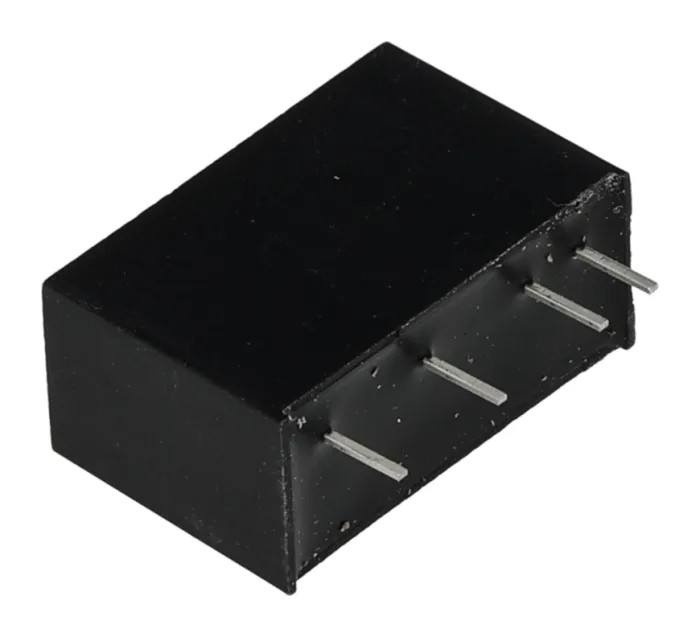

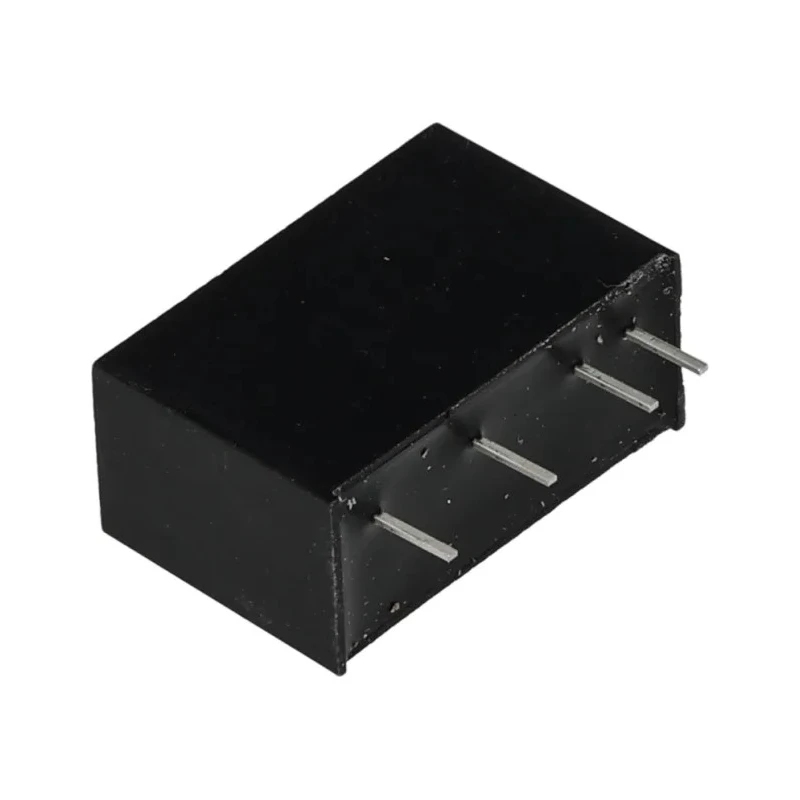

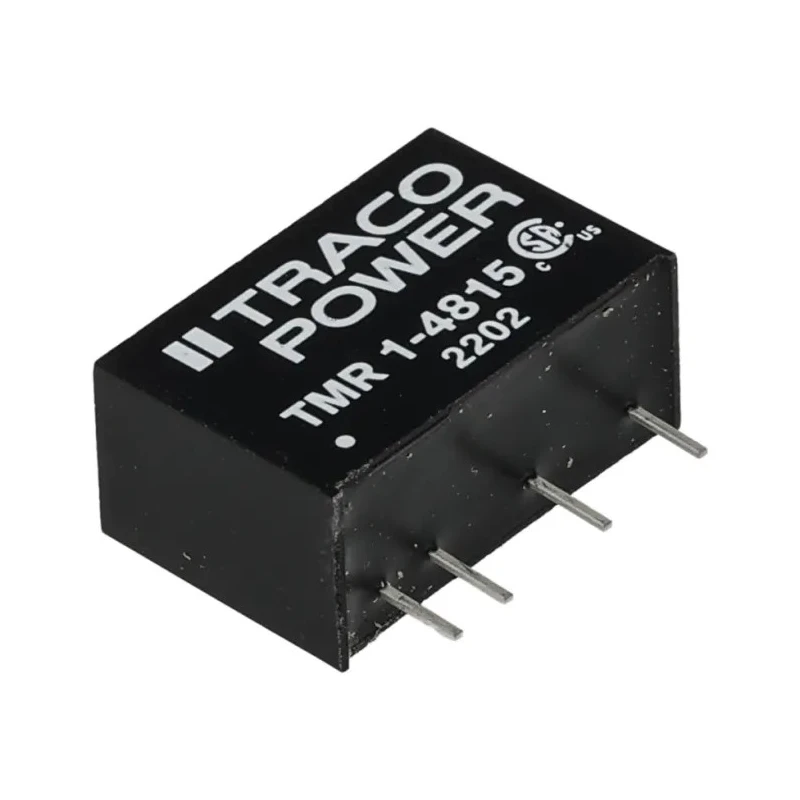

TRACOPOWER 1W Fully Regulated Isolated DC/DC Converter 24V DC Output 42mA 75V DC Max Input TMR 1-4815
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMR 1 DC/DC Converter, 24V dc/ 42 mA, 7 |
| Brand | TRACOPOWER |
| Efficiency | 78% |
| Length | 17mm |
| Model | TMR 1-4815 |
| Depth | 7.62mm |
| Width | 11mm |
| Mount Type | Through Hole |
| Series | TMR 1 |
| Maximum Operating Temperature | 95°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2800000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 36V |
| Number of Pins | 5 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 42mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 2 | 1 input voltage range |
Key Features
- Output current up to 42mA with fully regulated 24V DC output.
- SIP package type with 5 pins and through hole mounting.
- Isolation voltage of 1500 VDC ensures electrical safety.
- Operating temperature range from -40°C to +95°C for harsh environments.
- Compact dimensions with length 17mm, width 11mm, and depth 7.62mm.
- High reliability with MTBF of 2,800,000 hours.
- Efficiency of 78% enabling low power loss designs.
- No minimum load required and short circuit protection included.
Product Description
TRACOPOWER TMR 1-4815 is a compact 1 watt fully regulated isolated DC/DC converter designed for industrial and electronic power applications requiring reliable voltage conversion. It provides a stable 24V DC output current up to 42mA from a wide input range of 36V to 75V DC. The single in-line package (SIP) with through hole mounting and 5 pins makes it suitable for PCB integration in various equipment.
This converter ensures electrical safety with a high isolation voltage of 1500 VDC, supporting use in sensitive or noisy industrial environments. Its wide operational temperature range of -40°C to +95°C allows for deployment in harsh environmental conditions including outdoor and automotive uses. The converter features high efficiency at 78%, reducing energy loss and heat generation.
Additional attributes include no minimum load requirements and built-in short circuit protection, enabling safe and reliable operation in demanding applications. With a robust MTBF rating of 2.8 million hours, the TMR 1 series ensures long term durability.
The device's compact dimensions of 17 x 11 x 7.62 mm aid space-saving designs in power supplies, instrumentation, telecommunications, industrial controls, and automation systems. Manufactured in Taiwan, this component meets strict quality standards.
Wide 2:1 input voltage range from 36V to 75V DC. Fully regulated 24V DC output at 42mA current. High isolation voltage of 1500 VDC for safety. Compact SIP package with through hole mount and 5 pins. Operating temperature from -40°C to +95°C for harsh conditions.
Efficiency of 78% lowers power losses. No minimum load required and short circuit protection included. Long MTBF of 2,800,000 hours ensures reliability. Ideal for industrial, instrumentation, and automation applications.
Manufactured in Taiwan, Province Of China. Explore TRACOPOWER DC/DC Converters on EnvMart for high performance power solutions suited for varied industrial and electronic systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a fully regulated output voltage of 24V DC with a maximum output current of 42mA.
This model operates within a wide input voltage range of 36V to 75V DC.
The isolation voltage is 1500 VDC, ensuring electrical safety in sensitive applications.
The dimensions are 17mm in length, 11mm in width, and 7.62mm in depth.
It has an efficiency rating of 78%, which helps reduce power loss.
The operating temperature range is from -40°C to +95°C, suitable for harsh environments.
No minimum load is required for this converter, allowing flexible usage.
It features a through hole mounting type with a single in-line package (SIP) design.
The MTBF is rated at 2,800,000 hours, indicating high reliability.
It is designed for industrial, instrumentation, and automation applications requiring reliable voltage conversion.
This model has one output channel.
The package type is a single in-line package (SIP) with 5 pins.
