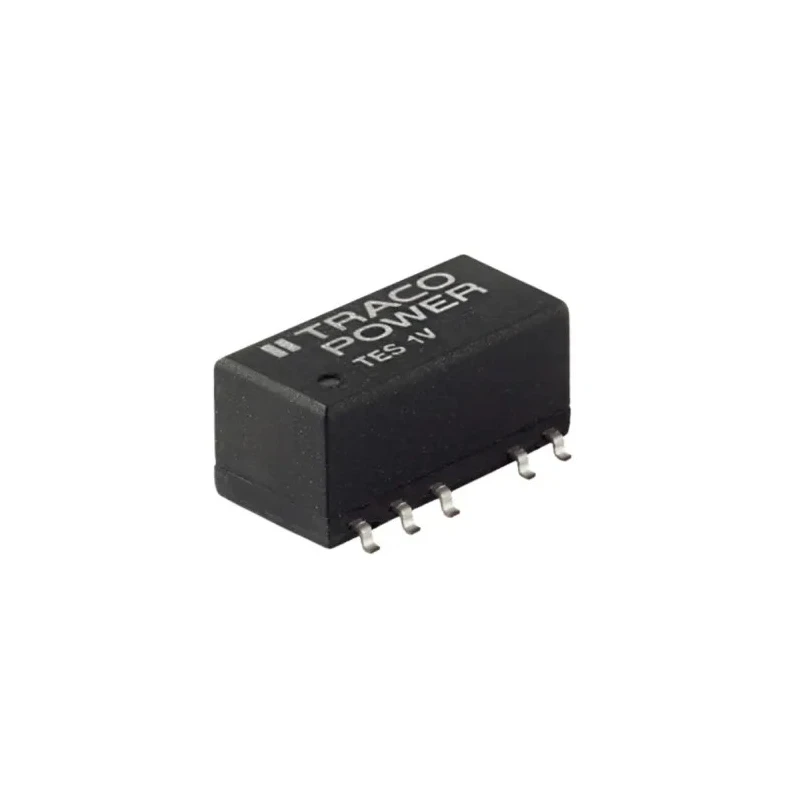

TRACOPOWER 2-Output Surface Mount 1W DC/DC Converter Dual Output ±12V dc, 21.6V-26.4V Input, 3kV Isolation, 79% TES 1-2422V
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TES 1V DC/DC Converter, 12V dc/ 42 mA |
| Brand | TRACOPOWER |
| Efficiency | 79% |
| Length | 16.3mm |
| Model | TES 1-2422V |
| Depth | 7.67mm |
| Mount Type | Surface |
| Series | TES 1V |
| Maximum Operating Temperature | 90°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 26.4V dc |
| Minimum Input Voltage | 21.6V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 42mA |
| Isolation Voltage | 3kV dc |
| Output Voltage 2 | -12V dc |
Key Features
- Operates with an input voltage range of 21.6V to 26.4V dc.
- Delivers an output current of 42 mA per output.
- Features 3000 V dc isolation voltage for enhanced safety.
- Maximum operating temperature of 90°C and minimum of -40°C for reliability in harsh environments.
- Offers an efficiency of 79% ensuring optimized energy use.
- Suitable for mounting on surfaces with a small footprint of 16.3 mm length and 7.67 mm depth.
- Unregulated outputs designed for industrial and electronic component power supply applications.
- Complies with IPC/JEDEC J-STD-020 lead free reflow solder process qualification.
Product Description
TRACOPOWER TES 1-2422V is a high-performance, dual output DC/DC converter designed for industrial, electronic, and power supply applications. This surface mount device provides isolated, unregulated outputs of +12V and -12V dc from an input voltage range between 21.6V and 26.4V dc, delivering a maximum output power of 1 watt.
The converter features a 3000 V dc isolation voltage, providing reliable electrical isolation suitable for sensitive industrial environments. Its small SMD footprint with dimensions of 16.3 mm length and 7.67 mm depth makes it ideal for compact PCB layouts. Operating within a temperature range of -40°C to 90°C, this device ensures stable performance under varying environmental conditions.
With an efficiency rating of 79%, the TES 1-2422V helps reduce energy losses and heat generation, which enhances system reliability. The product meets industrial standards for lead-free reflow soldering according to IPC/JEDEC J-STD-020, supporting contemporary manufacturing processes.
This converter is ideal for use in electronic equipment, industrial automation, communication devices, and other systems requiring reliable voltage conversion and isolation. The dual outputs allow supplying both positive and negative voltages to different circuit sections.
Dual output ±12V dc to power split circuits. High isolation voltage of 3 kV protects sensitive electronics. Compact surface mount design fits tight spaces. Wide operating temperature range for industrial applications. Compliance with IPC/JEDEC standards for soldering quality.
High efficiency reduces power dissipation. Unregulated outputs suit a variety of load conditions. Explore the TRACOPOWER DC/DC Converter range and other power supply solutions at EnvMart to find a product tailored to your exact industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with an input voltage range of 21.6V to 26.4V dc.
This model provides dual outputs of +12V and -12V dc, with a maximum output current of 42 mA per output.
The maximum output power is 1 watt.
It features a high isolation voltage of 3000 V dc, suitable for protecting sensitive electronics.
The efficiency rating is 79%, which helps reduce energy losses.
This model has a length of 16.3 mm and a depth of 7.67 mm, making it suitable for compact PCB layouts.
It operates within a temperature range of -40°C to 90°C, ensuring stable performance in various conditions.
It is designed for surface mounting, which is ideal for space-constrained applications.
It complies with IPC/JEDEC J-STD-020 for lead-free reflow soldering processes.
This converter is suitable for industrial automation, electronic equipment, and communication devices requiring reliable voltage conversion.
It has two outputs, providing both positive and negative voltages for different circuit sections.
The maximum input voltage is 26.4V dc.
