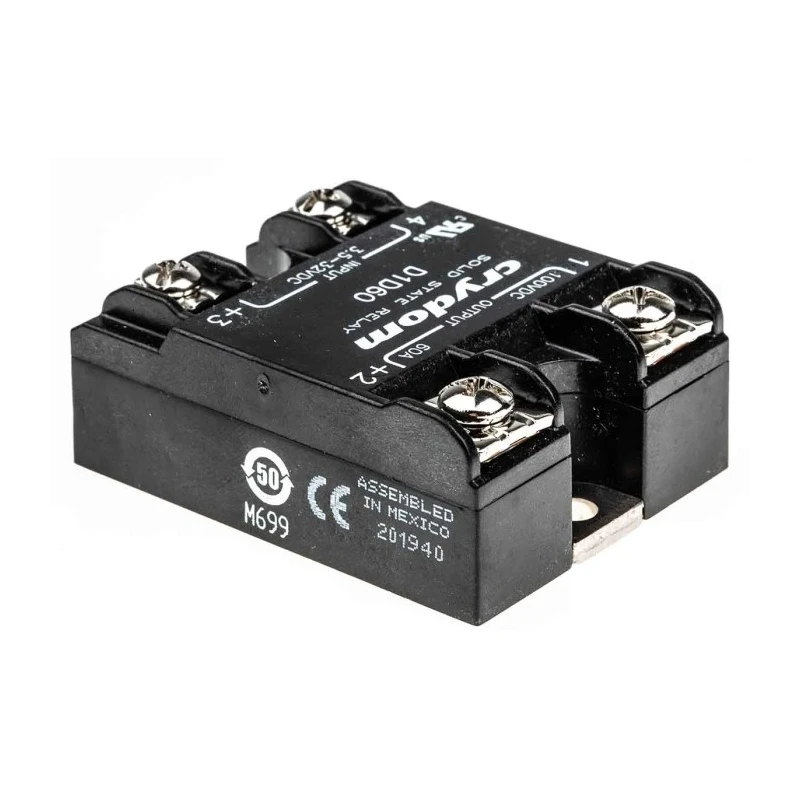

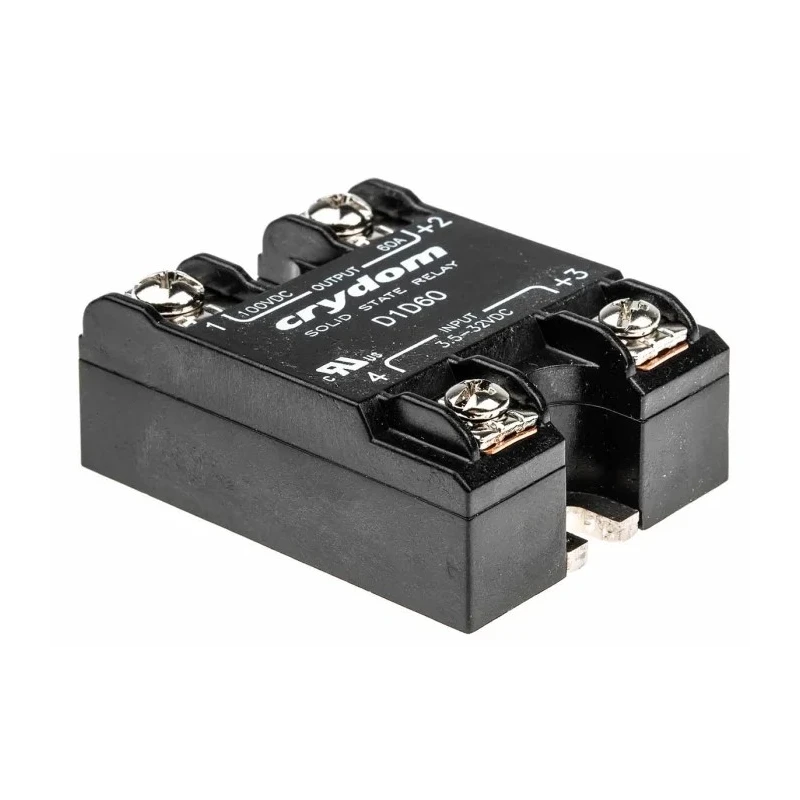

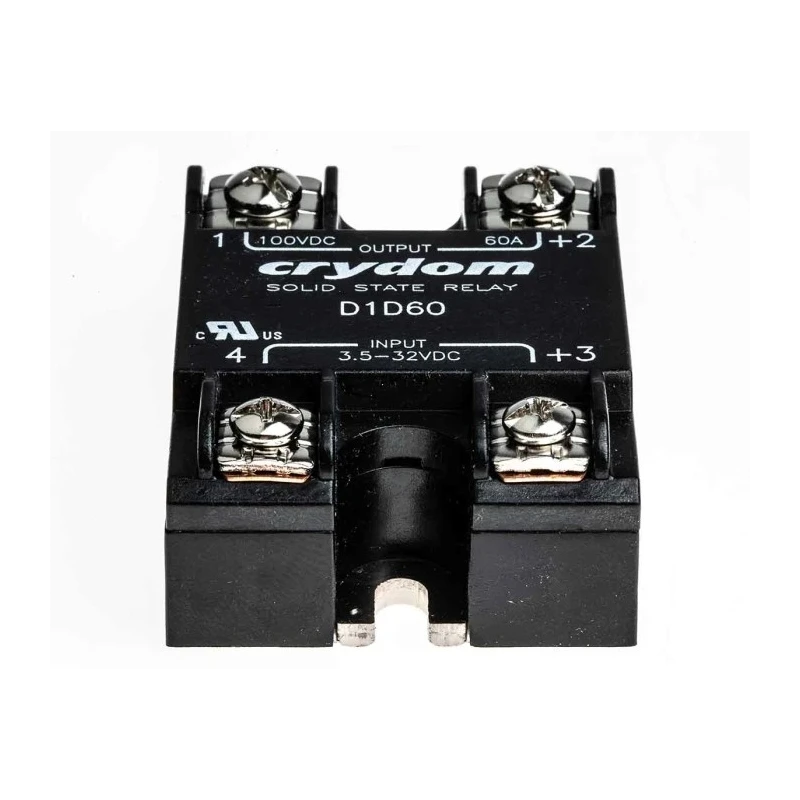

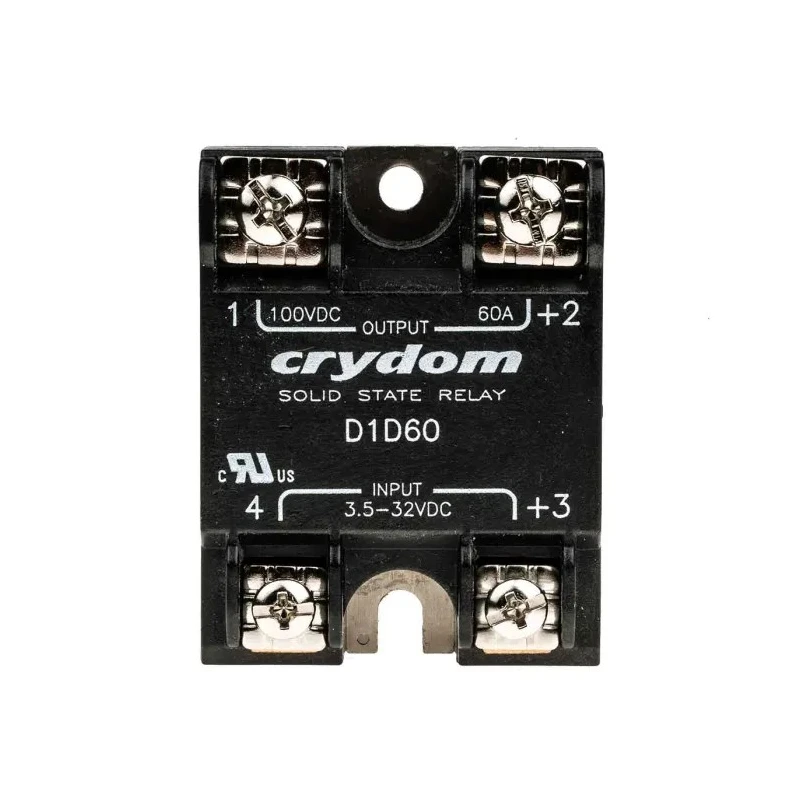

Crydom Solid State Relay, Surface Mount, 60 A Load, 100 V Load, 32V Control, MOSFET Output D1D60
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 22.9mm |
| Length | 58.4mm |
| Model | D1D60 |
| Width | 22.6mm |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | 1-DC |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST-NO |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | DC Switching |
| Maximum Load Current | 60A |
| Standards/Approvals | CE, UL, RoHS, EMC, cLR US |
| Maximum Load Voltage | 100V |
| Minimum Load Voltage | 0V dc |
| Minimum Control Voltage | 3.5V dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 0.1mA |
| On State Resistance | 10mΩ |
| Crydom Solid State Relay, 60 A Load, Panel Mount, 60 V dc Load, 32V ControlBrand | Crydom |
Key Features
- Compact surface mount design optimized for heavy load switching.
- Rated for a maximum load current of 60 amps and load voltage up to 100 volts DC.
- Operates with control voltages from 3.5 V to 32 V DC for versatile control applications.
- Low on-state resistance of 10 milliohms ensures efficient current conduction.
- Wide operating temperature range from -30°C to 80°C supports diverse industrial environments.
- Equipped with screw terminal type and SPST-NO contact configuration.
- Extremely fast turn-on time of 100 microseconds for improved cycle response.
- Lightweight at approximately 75.5 g reducing mechanical strain on installation.
Product Description
Crydom D1D60 Solid State Relay is a high-performance surface mount relay designed for precise DC switching applications. It supports a maximum load current of 60 A and a maximum load voltage of 100 V, controlled by voltage inputs ranging from 3.5 V to 32 V DC. The relay utilises a MOSFET output stage allowing a low input current trigger and fast switching.
Constructed with a flame-retardant housing, this relay helps prevent flame spread in hazardous conditions. The anti-rotation barriers enhance connection security, ensuring reliable locking within circuitry installations. Measuring 58.4 mm in length, 22.6 mm in width, and 22.9 mm in height, the compact form factor is suitable for confined installation environments.
The relay exhibits an on-state resistance of just 10 milliohms, minimizing power dissipation and enhancing energy efficiency. An off-state leakage current of only 0.1 mA minimizes undesired electrical flow when switched off. Additionally, the capacitance is specified at 8 pF, contributing to optimal performance during switching cycles.
Operating reliably across a temperature range from -30° to 80°C, this relay suits industrial and commercial applications including HVAC systems, industrial machinery, packaging automation, and injection molding equipment. It is engineered to provide a long service life due to the absence of moving parts and low wear components.
Compact surface mount design with screw terminal connection. Rated load current of 60 amps and load voltage max 100 volts DC. On-state resistance of 10 mΩ for efficient conduction. Fast switching with 100 µs turn-on time.
Wide operating temperature from -30°C to 80°C. Flame-retardant housing for enhanced safety. Lightweight at 75.5 grams reducing mechanical stress. Fits tightly with anti-rotation barriers for secure mounting. Ideal for demanding industrial automation applications.
This Crydom Solid State Relay offers a reliable solution in electrical control with proven durability and efficiency. It is manufactured in Mexico under strict quality standards and holds certifications including CE, UL, RoHS, EMC, and cULus. Please explore additional Crydom relay products and related automation items at EnvMart for comprehensive industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum load current of 60 amps and a maximum load voltage of 100 volts DC.
It operates with control voltages ranging from 3.5 V to 32 V DC.
The on-state resistance is 10 milliohms, which ensures efficient current conduction.
It has an extremely fast turn-on time of 100 microseconds, improving cycle response.
The relay measures 58.4 mm in length, 22.6 mm in width, and 22.9 mm in height.
It features a compact surface mount design with screw terminal connections.
It operates reliably within a temperature range of -30°C to 80°C.
The off-state leakage current is specified at only 0.1 mA, minimizing undesired electrical flow when switched off.
It holds certifications including CE, UL, RoHS, EMC, and cULus.
The output type is MOSFET, allowing for a low input current trigger and fast switching.
It is suitable for industrial and commercial applications including HVAC systems, industrial machinery, packaging automation, and injection molding equipment.
It is constructed with a flame-retardant housing to help prevent flame spread in hazardous conditions.
