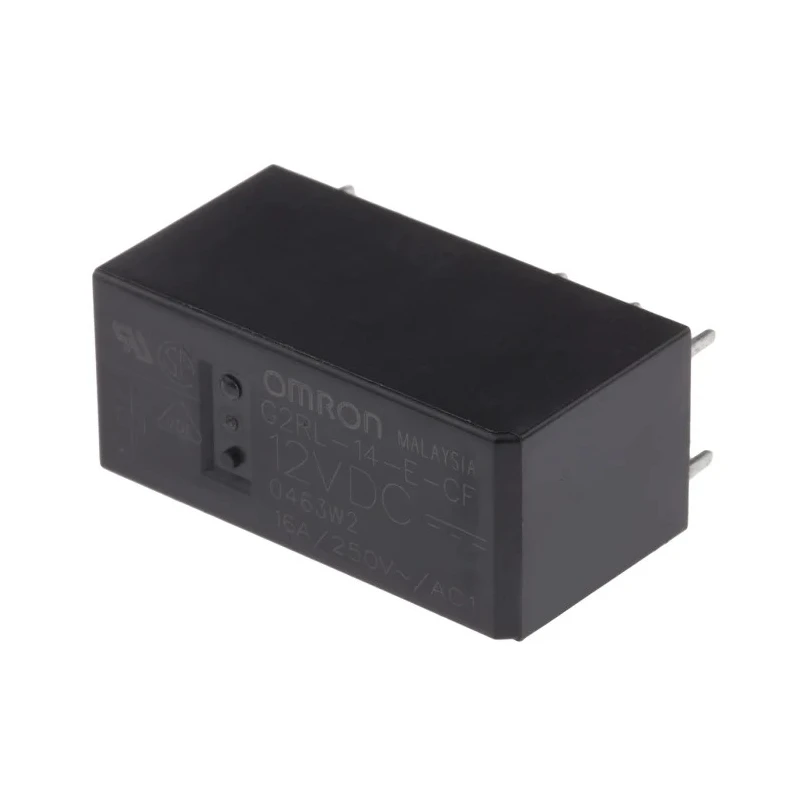

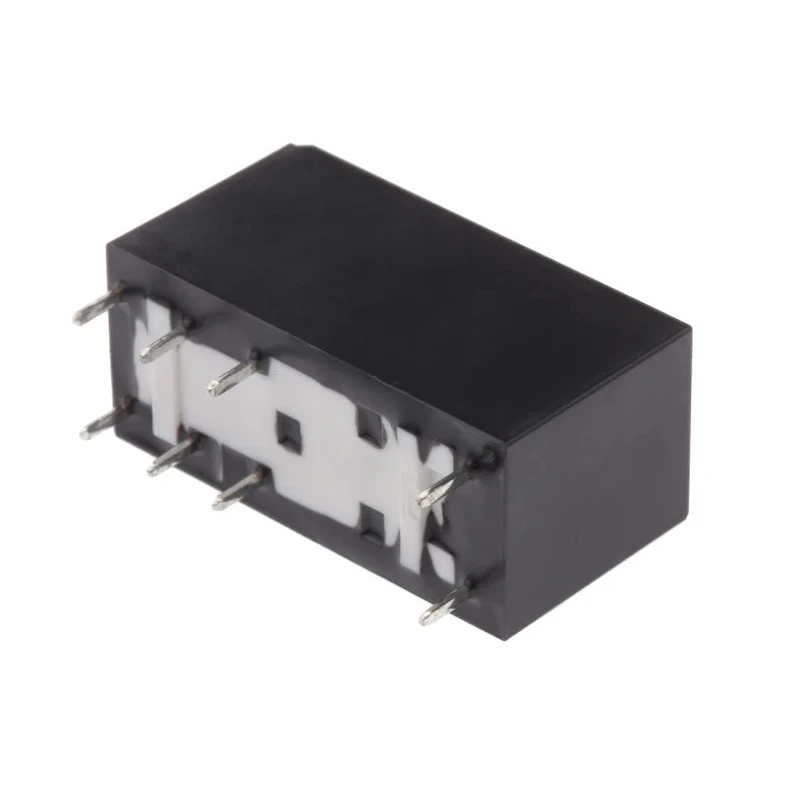

Omron PCB Power Relay 12V DC Coil Voltage 10A Switching Current SPDT G2RL-14-E-CF DC12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G2RL-14-E-CF DC12 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Through Hole |
| Standards/Approvals | VDE, UL, CSA, EN, IEC, RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 250V ac |
Key Features
- Low profile design with 15.7mm maximum height for compact PCB mounting.
- Single pole double throw contact configuration suitable for versatile switching applications.
- Coil resistance of 360 ohms ensures stable coil operation.
- Switching capability up to 10 amperes at 250V AC for robust power control.
- Operating temperature range from -40°C to 85°C for reliable performance in various environments.
- Contact material made of silver alloy for excellent conductivity and durability.
- Complies with international standards including VDE, UL, CSA, EN, IEC, and RoHS for quality assurance.
- Through hole terminal type and PCB mount for ease of installation in electronic assemblies.
Product Description
Omron G2RL-14-E-CF DC12 is a high-quality PCB Power Relay designed for precision control in electrical and automation systems. It features a 12V DC coil voltage and supports a switching current of 10A with SPDT contact configuration, making it ideal for applications requiring reliable and efficient switching. The relay’s low profile height of 15.7mm allows compact installation on PCB boards.
Constructed with a silver alloy contact material, this relay ensures excellent electrical conductivity and long service life. It operates efficiently within a wide temperature range from -40°C to 85°C, meeting varied industrial and commercial environment demands.
The relay supports a switching AC voltage up to 250V AC and has a coil resistance of 360 ohms for optimized coil performance. It is compliant with major standards such as VDE, UL, CSA, EN, IEC, and RoHS, providing assurance of quality and environmental sustainability.
Designed specifically for PCB mounting with through hole terminals, the Omron G2RL-14-E-CF DC12 relay is suitable for use in industrial automation, electrical control panels, manufacturing equipment, HVAC systems, and other commercial electrical applications demanding reliable power relay solutions.
Low profile 15.7mm height maximizes space efficiency on PCBs. SPDT contact configuration for flexible switching options. 10A switching current supporting robust electrical loads. Wide operating temperature range ensures durability in harsh environments.
International standards compliance guarantees reliability and safety. Silver alloy contacts provide long electrical life and stable performance. Through hole PCB mounting simplifies integration in electronic assemblies. Explore Omron Power Relays and related electrical and automation components in EnvMart for trusted quality and performance in your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 10A.
The coil voltage of this model is 12V DC.
The dimensions of the relay are 15.7mm in height, 29mm in length, and 12.7mm in width.
This relay features a single pole double throw (SPDT) contact configuration.
The operating temperature range for this relay is from -40°C to 85°C.
This relay is designed for PCB mounting with through hole terminals.
The coil resistance of this relay is 360 ohms.
This relay can switch AC voltage up to 250V.
The contact material used in this relay is silver alloy.
This relay complies with VDE, UL, CSA, EN, IEC, and RoHS standards.
This relay is suitable for industrial automation, electrical control panels, manufacturing equipment, and HVAC systems.
This relay belongs to the G2RL series.
