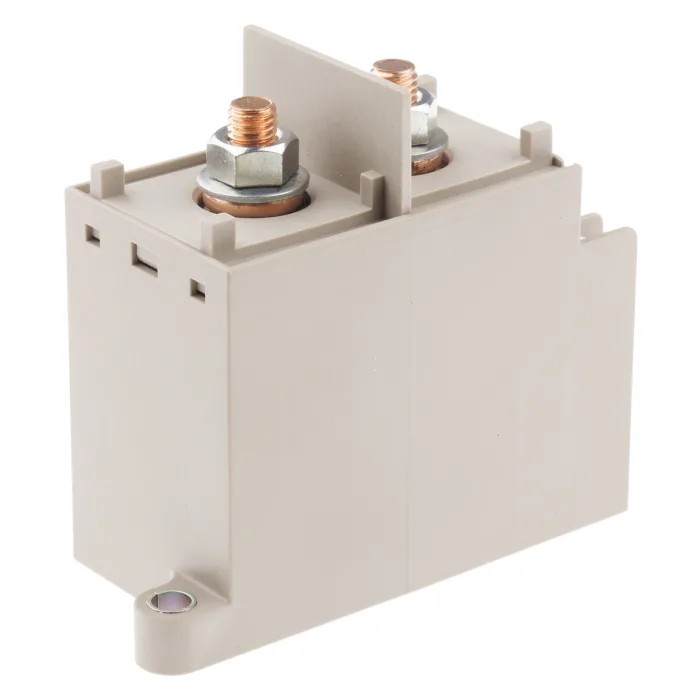

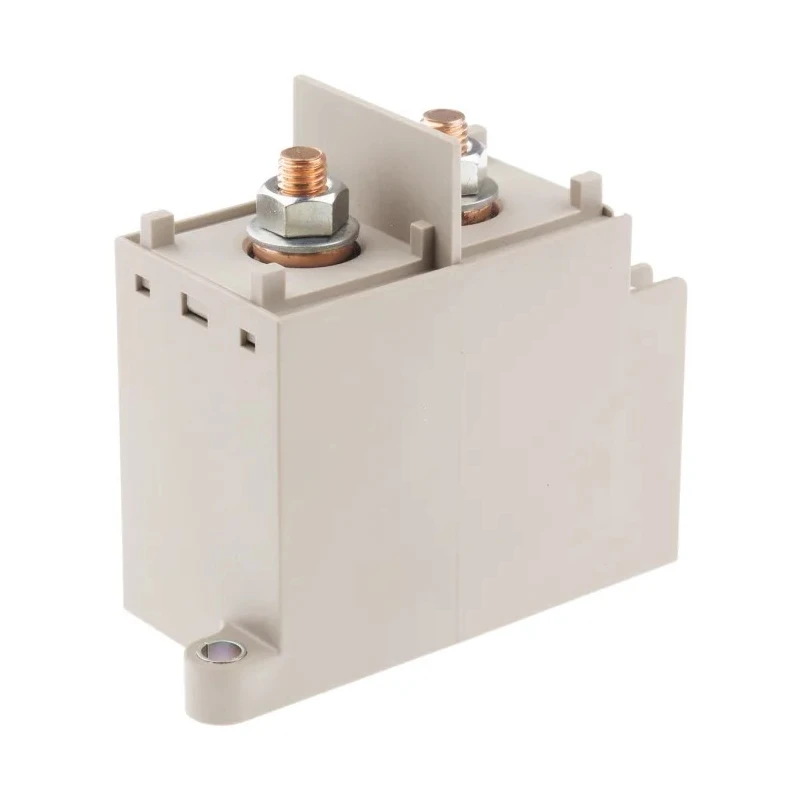

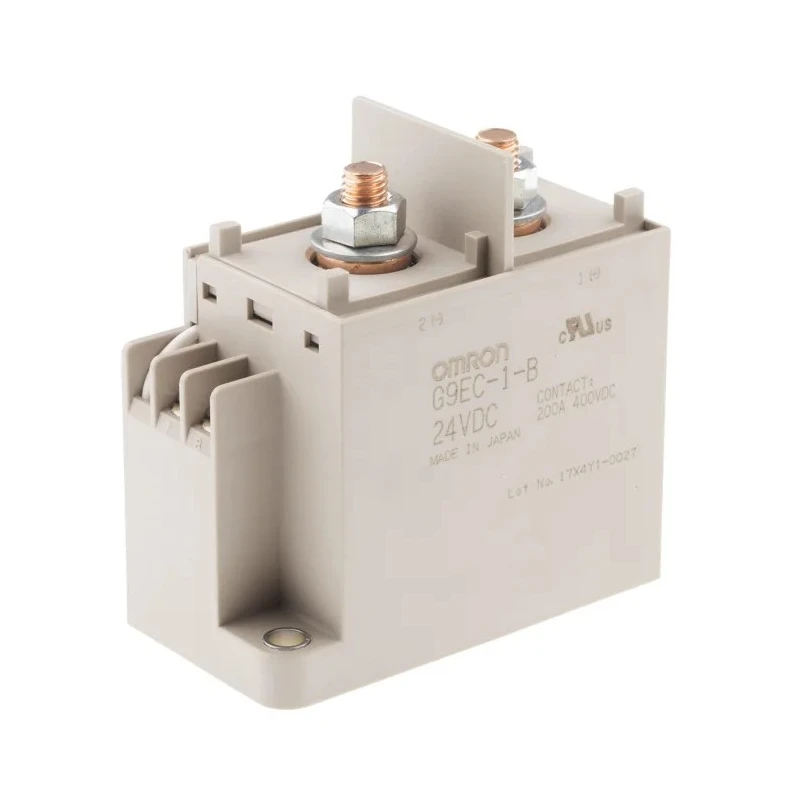

Omron Surface Power Relay SPST 24V DC Coil 200A Switching Current G9EC-1-B DC24

Omron G9EC-1-B DC24 Surface Power Relay is a high-performance power relay suitable for industrial, electrical, and automation applications requiring interruption of large DC loads with low noise and enhanced safety. This relay operates with a 24V DC coil voltage and offers a robust switching current capacity of 200A, capable of handling both 400V DC and AC voltages.

The relay features a single pole single throw (SPST) contact configuration ideal for controlling circuits with simplified switching needs. Its surface mount design equipped with screw terminals allows for secure and straightforward installation in control panels or machinery setups.

Designed for durability, the relay operates effectively within a broad temperature range from -40°C minimum to 50°C maximum operating temperatures, making it suitable for varied industrial environments. The coil resistance stands at 51.2Ω with a coil power rating of 11W, enabling efficient coil activation and performance.

The compact dimensions (L98 x W44 x H86.7 mm) enable it to fit within constrained spaces without compromising functionality. The gas-injected and hermetically sealed construction ensures long-term reliability by protecting internal components from environmental contaminants and reducing audible noise during operation.

Compliance with CSA and UL standards further verifies the relay’s safety and quality credentials. The low contact resistance of 30mΩ supports consistent contact performance under load conditions. Produced in Japan, this product assures manufacturing excellence and quality control.

Capable of switching high capacity DC loads safely and efficiently. Compact design suitable for tight installations. Gas injected and hermetically sealed for durability and noise reduction. Meets CSA and UL certifications for safety and reliability.

Wide operating temperature range enhances environmental adaptability. Surface mount with screw terminals ensures robust mechanical fixation. Low contact resistance promotes minimal energy loss. Efficient coil operation with 11W power rating.

Manufactured in Japan with high-quality standards.

This relay is ideal for use in industrial automation, electrical control systems, and power management applications requiring reliable high-current DC switching. Explore additional Power Relays and related components in the Electronics & Electricals category at EnvMart to enhance your system design and maintenance.
