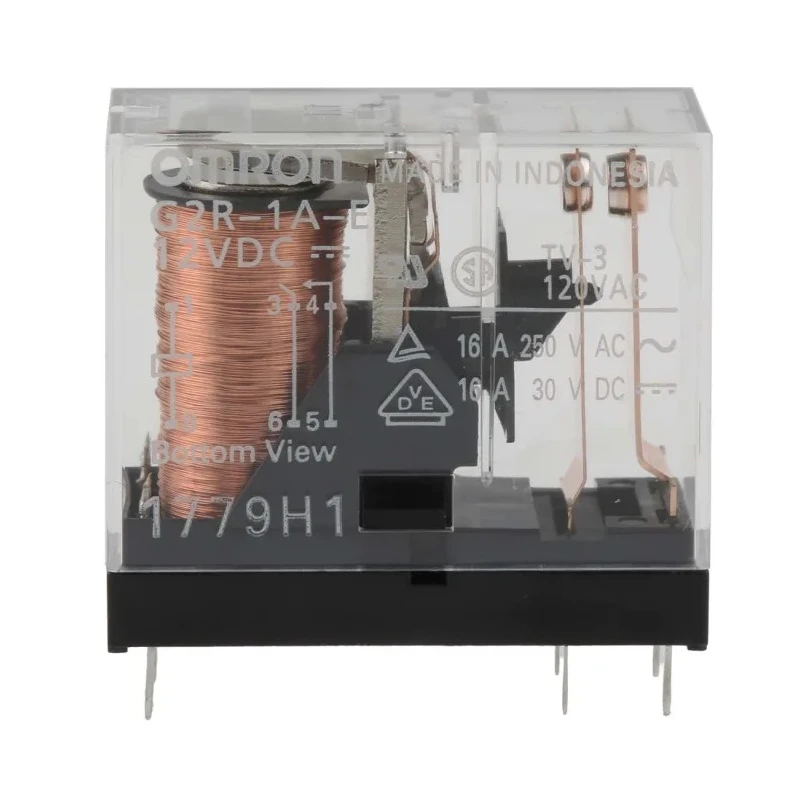

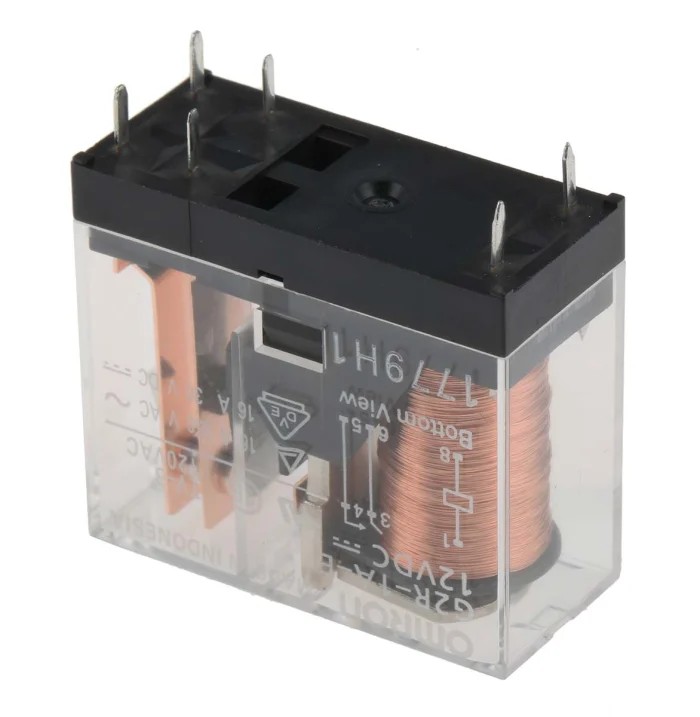

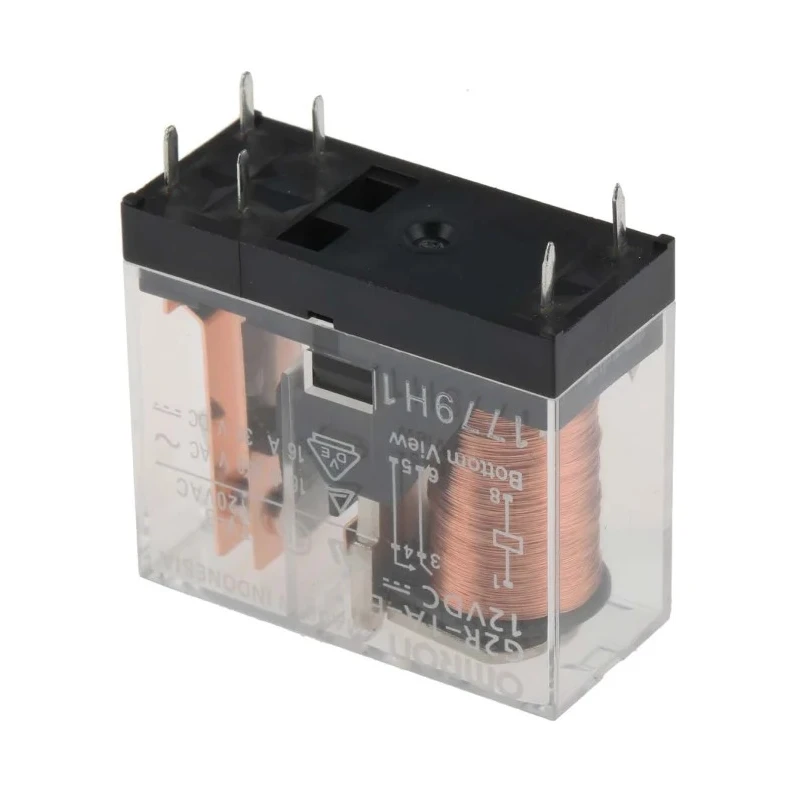

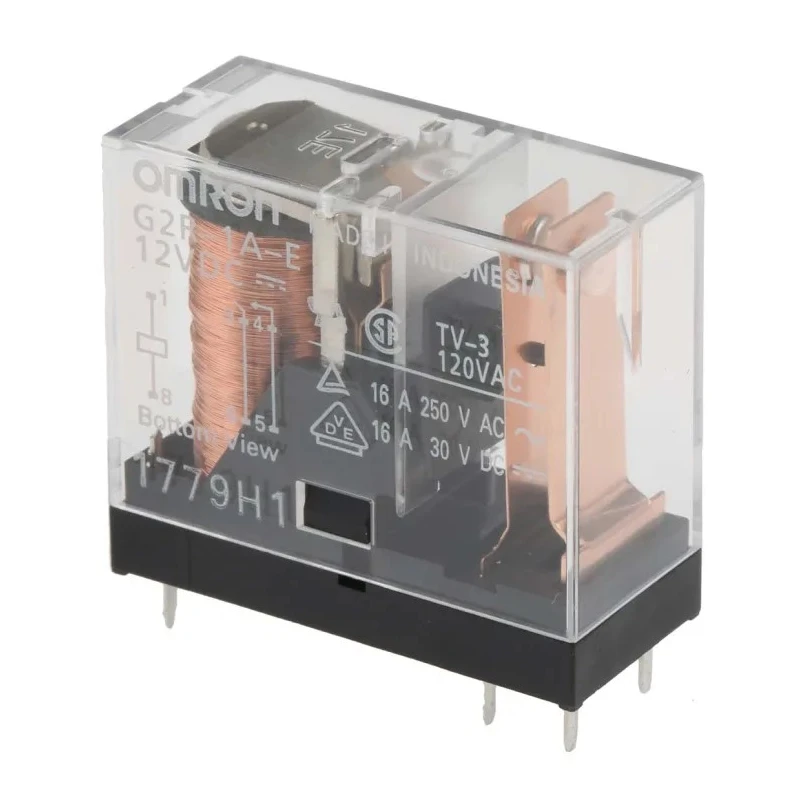

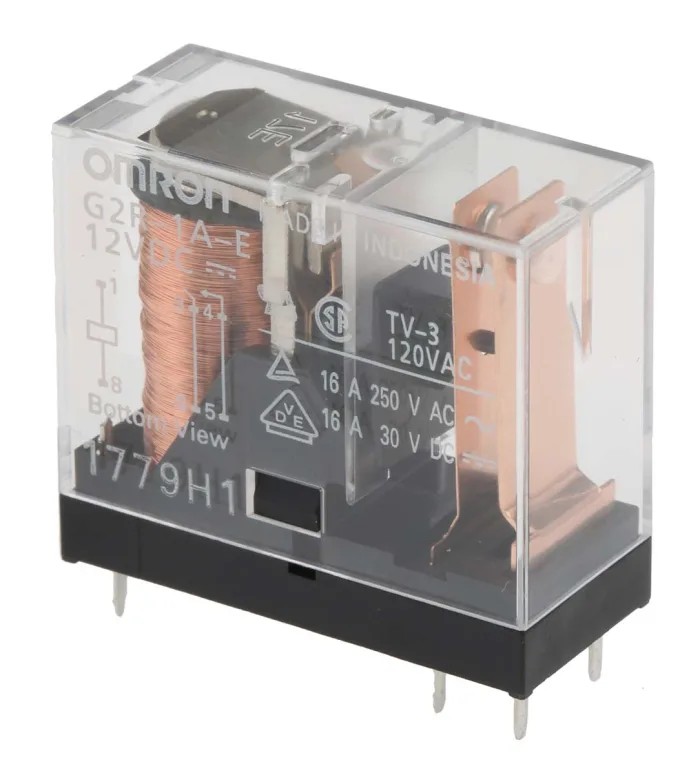

Omron PCB Power Relay 12V DC Coil, 16A Switching Current, SPST, Through Hole Terminal, G2R-1A-E DC12
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 25.5mm |
| Length | 29mm |
| Model | G2R-1A-E DC12 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R-1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 275Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Switching Power | 150W |
Key Features
- The relay supports switching AC voltage up to 380V AC and switching DC voltage up to 125V DC.
- It uses a fully sealed, through-hole terminal design suitable for PCB mounting.
- Coil resistance is 275 ohms with coil power consumption of 0.9 VA.
- Operating temperature ranges from -40°C to 70°C, ensuring reliable performance in diverse environments.
- Contact material is silver alloy with a contact resistance of 30 milliohms.
- This non-latching relay complies with RoHS standards and is made in Indonesia.
- Designed for use in domestic and commercial electrical and automation applications.
- Offers creepage and clearance of 8 mm and dielectric strength of 5,000 V between coil and contacts.
Product Description
Omron G2R-1A-E DC12 PCB Power Relay is a non-latching single pole single throw (SPST) relay designed for PCB mounting applications, powered by a 12V DC coil voltage. It supports a 16A switching current suitable for various AC and DC switching needs.
This relay incorporates a through-hole terminal type and a fully sealed construction, which enhances durability and reliability in electronic circuits. The coil resistance is 275 ohms, with a coil power consumption of 0.9 VA, efficiently managing power without excessive heat generation.
With a compact form factor measuring 29 mm in length, 13 mm in width, and 25.5 mm in height, this relay fits neatly onto circuit boards in industrial automation, electrical control systems, and domestic applications.
The contact material is silver alloy, ensuring low contact resistance (30 milliohms) and high conductivity, while the relay supports switching voltages up to 380V AC and 125V DC and a switching power of 150W. Operating temperature range is from -40°C to 70°C, making it suitable for harsh environmental conditions.
Safety features include an 8 mm creepage and clearance distance, with dielectric strength between coil and contacts rated at 5,000 volts and surge resistance up to 10,000 volts. This meets industry RoHS environmental compliance standards, with manufacturing origin in Indonesia.
The relay uses a bifurcated contact design to ensure reliable switching. Designed with safety and industrial compliance in mind. Applications include PCB based automation controls, power switching circuits, and general industrial relay tasks.
Its non-latching nature facilitates efficient switching without memory retention requirements.
Omron power relays are trusted in industrial, laboratory, and commercial electrical applications for control and automation tasks. Explore the Power Relays category on EnvMart for similar high-quality components and complete your PCB designs with dependable relay solutions like the G2R-1A-E DC12.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of 16A, making it suitable for various electrical applications.
The coil voltage for this relay is 12V DC, which is required for its operation.
It can switch AC voltage up to 380V and DC voltage up to 125V, accommodating a range of applications.
This relay features a single pole single throw (SPST) contact configuration.
The operating temperature range is from -40°C to 70°C, allowing it to function in diverse environments.
The relay measures 29 mm in length, 13 mm in width, and 25.5 mm in height.
It utilizes a through-hole terminal design, making it suitable for PCB mounting applications.
The contact material is silver alloy, which ensures low contact resistance and high conductivity.
The coil resistance is 275 ohms, which is important for determining power consumption.
The dielectric strength is rated at 5,000 volts, ensuring safety during operation.
Yes, it complies with RoHS standards, indicating it meets environmental regulations.
It is designed for use in domestic and commercial electrical and automation applications, such as power switching circuits and PCB-based automation controls.
