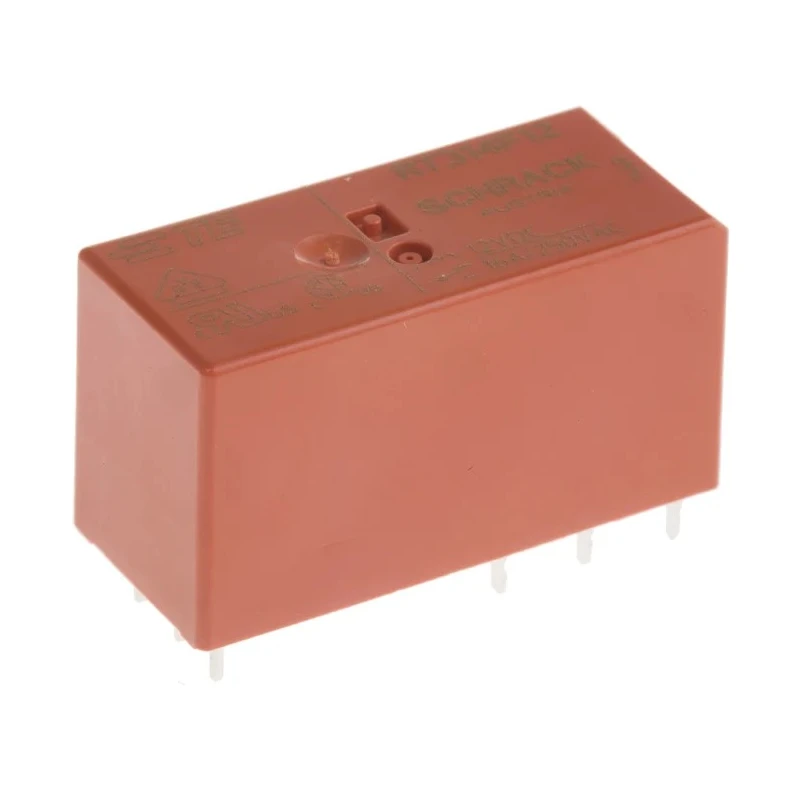

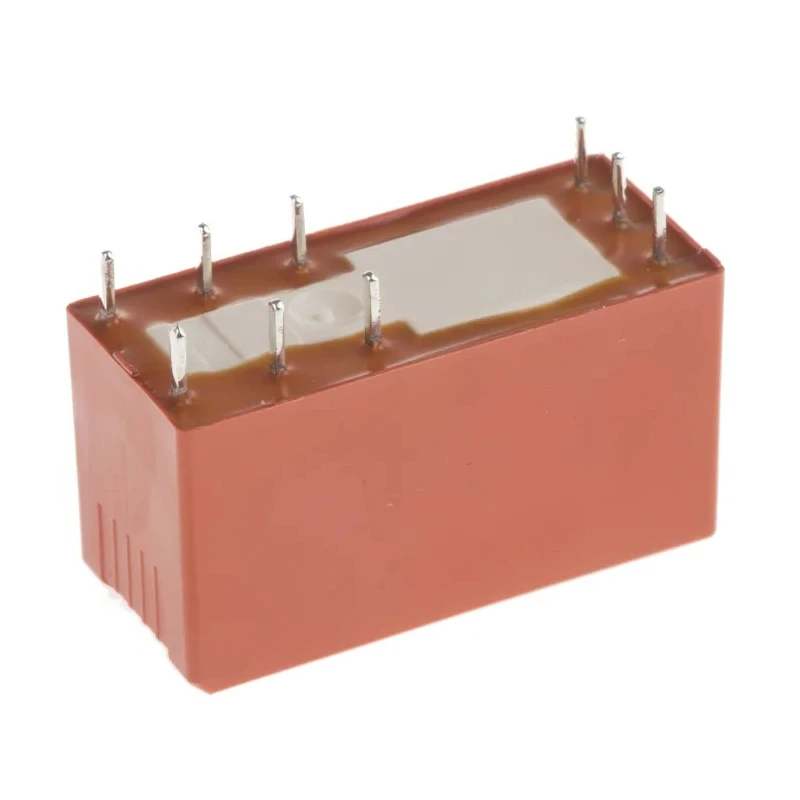

TE Connectivity PCB Power Relay 12V dc Coil 16A Switching Current SPDT RT314F12
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314F12 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | cULus, VDE |
| Coil Resistance | 240Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 600mW |
| TE Connectivity PCB Mount Latching Relay, 12V dc Coil, SPDTBrand | TE Connectivity |
Key Features
- Designed for PCB mounting with solder terminals for reliable connections.
- Operates between -40°C to 85°C ensuring durability in various environments.
- Constructed with silver alloy contacts providing excellent conductivity.
- Part of the SCHRACK series, known for reinforced insulation and shock resistance.
- Coil resistance of 240Ω with coil power consumption of 600mW.
- Rated for switching AC voltage up to 400V AC and switching power of 4kVA.
- Approvals include cULus and VDE ensuring compliance with international standards.
Product Description
TE Connectivity RT314F12 PCB Power Relay is engineered for industrial and commercial applications requiring a robust switching solution with a 12V dc coil and single-pole double-throw (SPDT) contact configuration. This relay is ideal for automation, electrical equipment, and signal conditioning systems mounted directly on printed circuit boards.
The relay supports a switching current of 16A and a switching power rating of 4kVA, capable of handling voltages up to 400V AC, making it suitable for demanding environments. Its compact design with dimensions of 29mm length, 15.7mm height, and 12.7mm width allows for convenient integration where space is limited.
The SCHRACK series offers enhanced electrical performance with reinforced insulation and shock resistance up to 100g, making it resilient against mechanical stress. The coil resistance of 240Ω and power rating of 600mW ensure efficient operation with minimal power consumption.
Silver alloy contacts provide reliable conductivity and durability over prolonged use. Operating temperature range from -40°C to 85°C enables performance stability across diverse industrial environments.
The relay complies with international standards, having cULus and VDE approvals, ensuring safety and reliability in industrial, laboratory, HVAC, manufacturing, and automation applications.
Designed for PCB mounting with solder type terminals. Coil voltage rating at 12V dc with coil power of 600mW. Switching current capacity of 16A with SPDT contact configuration. Reinforced insulation and shock resistant construction.
Compact physical size for space-constrained applications. Wide operating temperature range from -40°C to 85°C. Silver alloy contacts for enhanced conductivity and durability. Certified to cULus and VDE standards for quality assurance.
This TE Connectivity RT314F12 relay is perfect for use in power relays, automation control panels, renewable energy systems, telecommunications equipment, and motor controls where switching performance and reliability are critical. Explore EnvMart's range of Power Relays for compatible industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A.
The coil voltage rating for this relay is 12V DC.
The dimensions of the relay are 29mm in length, 15.7mm in height, and 12.7mm in width.
It is rated for switching AC voltage up to 400V AC.
This unit features a single-pole double-throw (SPDT) contact configuration.
The coil resistance is 240Ω.
The coil power consumption is 600mW.
It operates within a temperature range of -40°C to 85°C.
The contacts are made of silver alloy, providing excellent conductivity.
This relay has cULus and VDE approvals, ensuring compliance with international standards.
It is designed for PCB mounting with solder terminals for reliable connections.
This model is part of the SCHRACK series, known for reinforced insulation and shock resistance.
