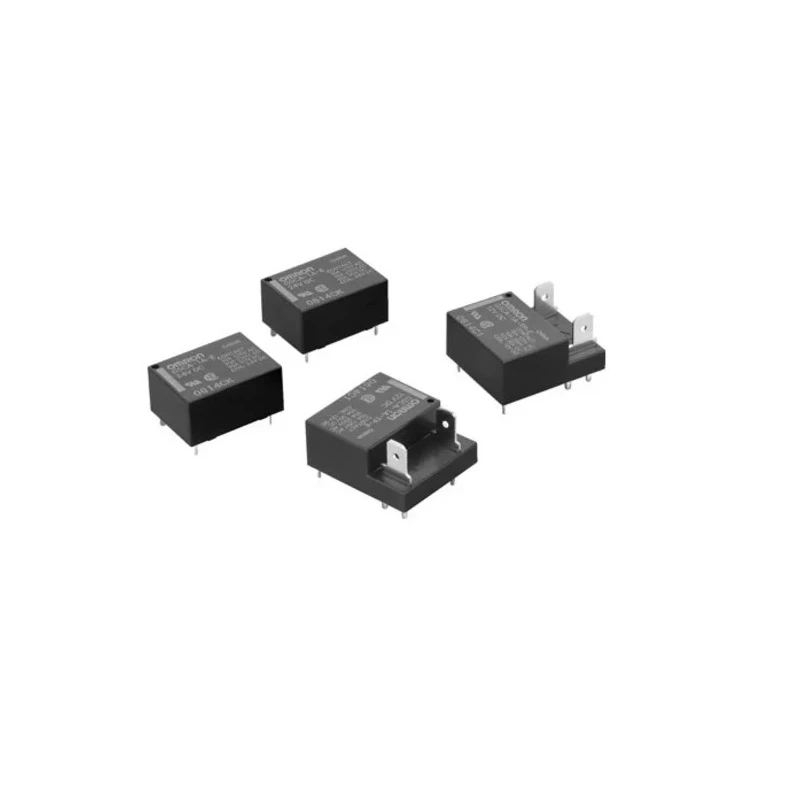

Omron PCB Relay 5V DC Coil 15A Switching Current SPST Through Hole Mount G5CA-1A-E DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11mm |
| Length | 22mm |
| Model | G5CA-1A-E DC5 |
| Width | 16mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5CA |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 200mW |
Key Features
- The relay features a 5V DC coil voltage with a coil resistance of 2.9 kΩ and a coil power of 200 mW.
- SPST contact configuration supports switching currents up to 15A with silver alloy contacts for high conductivity.
- Designed for through hole PCB mounting, measuring 22 mm in length, 16 mm in width, and 11 mm in height.
- Suitable for switching DC voltage up to 60V and AC voltage up to 240V with contact resistance of 100 mΩ.
- Operates reliably between -25°C and 70°C operating temperature range.
- The relay complies with RoHS standards and is manufactured in China.
- High-sensitivity model suitable for household appliances and industrial device outputs.
- Silver alloy contacts provide durability and efficient switching performance.
Product Description
Omron G5CA-1A-E DC5 PCB Relay with a 5V DC coil voltage and supporting a switching current of up to 15A, is engineered for efficient PCB mounting with a SPST contact configuration. This relay series is widely used in industrial applications and household appliances to switch power loads reliably.
The coil resistance of 2.9 kΩ and a coil power consumption of 200 mW ensure low power operation. The relay's compact dimensions of 22 mm length, 16 mm width, and 11 mm height allow for easy integration on PCB layouts.
It is designed to switch DC voltages up to 60V as well as AC voltages up to 240V, featuring silver alloy contacts that guarantee low contact resistance of 100 mΩ and long service life. With a robust operating temperature range from -25°C to 70°C, it is capable of functioning in harsh environments.
The relay complies with RoHS standards ensuring environmental safety and is produced in China. This model offers a high-sensitivity relay option suitable for both industrial devices and household appliances, combining low input power with reliable switching capabilities.
The relay features a 5V DC coil voltage with a coil resistance of 2.9 kΩ and a coil power of 200 mW. SPST contact configuration supports switching currents up to 15A with silver alloy contacts for high conductivity. Designed for through hole PCB mounting, measuring 22 mm in length, 16 mm in width, and 11 mm in height.
Suitable for switching DC voltage up to 60V and AC voltage up to 240V with contact resistance of 100 mΩ. Operates reliably between -25°C and 70°C operating temperature range. The relay complies with RoHS standards and is manufactured in China.
High-sensitivity model suitable for household appliances and industrial device outputs. Silver alloy contacts provide durability and efficient switching performance.
Ideal for use in industrial automation, electrical control systems, manufacturing equipment, and household appliance applications. EnvMart offers a comprehensive selection of Power Relays to meet diverse switching needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V DC.
It supports a maximum switching current of 15A.
This model measures 22 mm in length, 16 mm in width, and 11 mm in height.
The relay features a Single Pole Single Throw (SPST) contact configuration.
The contact resistance is 100 mΩ.
The coil resistance is 2.9 kΩ and the coil power consumption is 200 mW.
It can switch DC voltages up to 60V and AC voltages up to 240V.
The relay operates reliably between -25°C and 70°C.
The contacts are made of silver alloy, which provides high conductivity.
Yes, it complies with RoHS standards.
It is designed for through hole PCB mounting.
This model is suitable for use in household appliances and industrial device outputs.
