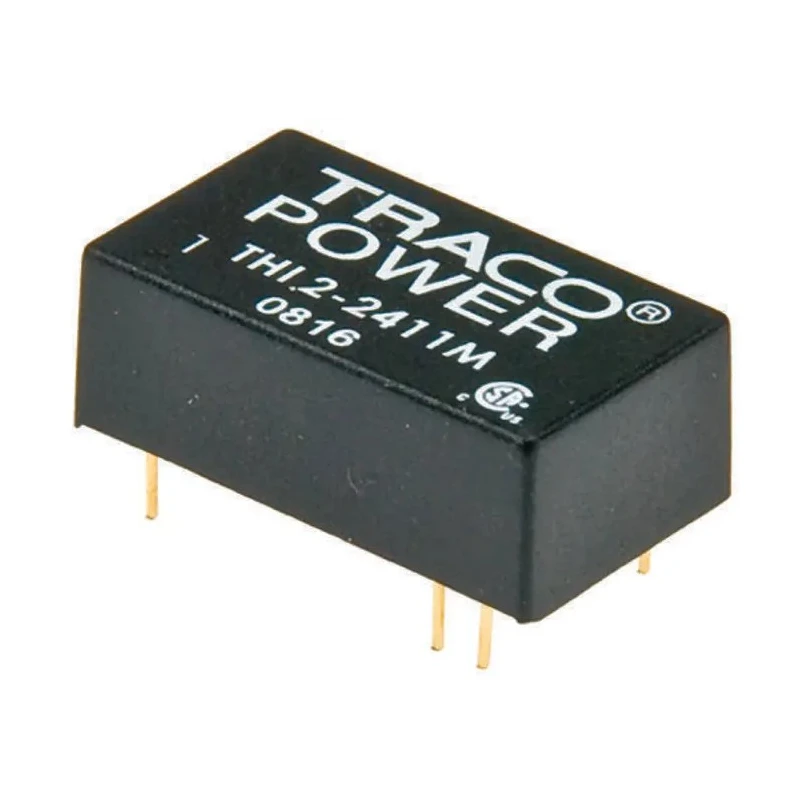

TRACOPOWER 2W PCB Mount DC/DC Converter 5V DC 400mA 24V DC Input 6-Pin THI 2-2411M

TRACOPOWER THI 2-2411M is a 2W DC/DC converter specifically designed for industrial and electronic component applications. This PCB mount unit outputs a regulated 5V DC voltage at a maximum current of 400 mA. It accepts a wide input voltage range of up to 24V DC with 0V as the minimum, featuring a 2:1 input ratio for versatility in power supply design.

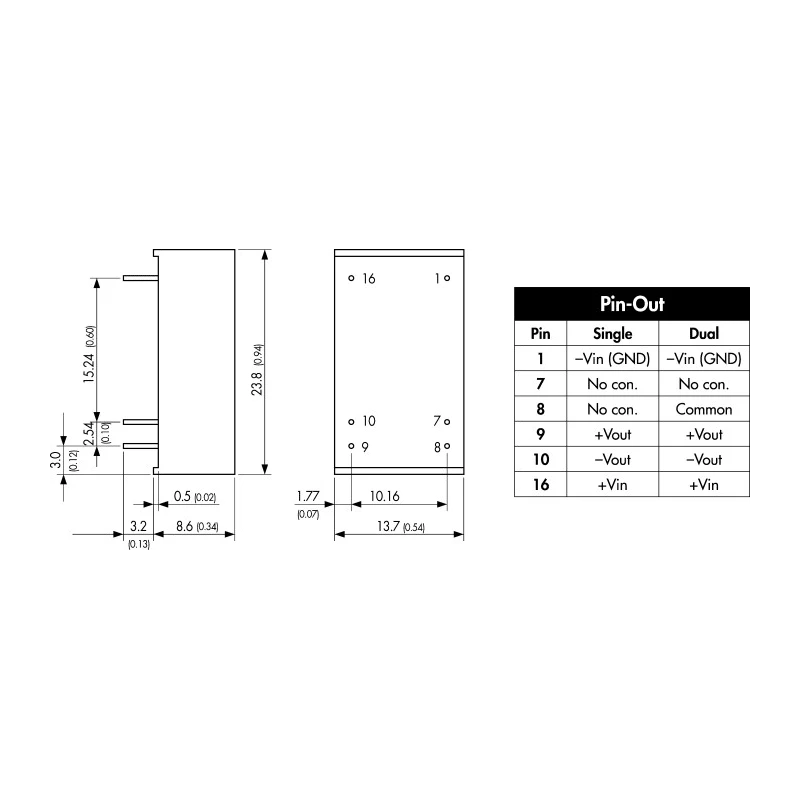

The device is housed in a 6-pin DIP package with compact dimensions of 23.8 mm length and 8.6 mm depth, suitable for efficient PCB layout. It operates effectively across a wide temperature range from -40°C to 71°C, making it well-suited to harsh environmental conditions typically encountered in industrial, medical, and manufacturing equipment.

The THI 2-2411M model meets RoHS compliance with an isolation voltage of 4kV DC and features a built-in pi-filter and short circuit protection to enhance electromagnetic compatibility and reliability. This converter ensures safety and stability in complex electronic systems, with UL94V-0 package material providing flame retardant protection.

With a mean time between failures (MTBF) of two million hours, this TRACOPOWER converter delivers durable and consistent performance, meeting multiple international standards including EN 60950-1 and IEC 60601-1. It supports industrial, laboratory, and medical power applications requiring low power, isolated DC-DC conversion with reinforcement insulation and high isolation test voltage.

The product is manufactured in Taiwan, Province Of China, under rigorous quality controls to certify safe and reliable operation. Ideal for system designers and engineers needing dependable voltage conversion for PCB-based power supply solutions.

This converter offers a maximum output power of 2W with 66% efficiency. It supports an input voltage range from 0V to 24V DC with a 2:1 input ratio. The device features high isolation voltage of 4kV DC and operates within a temperature range from -40°C to 71°C.

Packaged in a 6-pin DIP configuration with dimensions 23.8 mm length and 8.6 mm depth for compact PCB integration. Meets RoHS standards and comes from Taiwan, Province Of China, ensuring quality manufacturing. Includes built-in pi-filter and short circuit protection for enhanced reliability.

MTBF rate is 2,000,000 hours, certifying long-term durability in industrial applications. Explore a wide range of TRACOPOWER voltage converters and DC/DC Converters at EnvMart to meet your industrial and electronic power supply needs.
