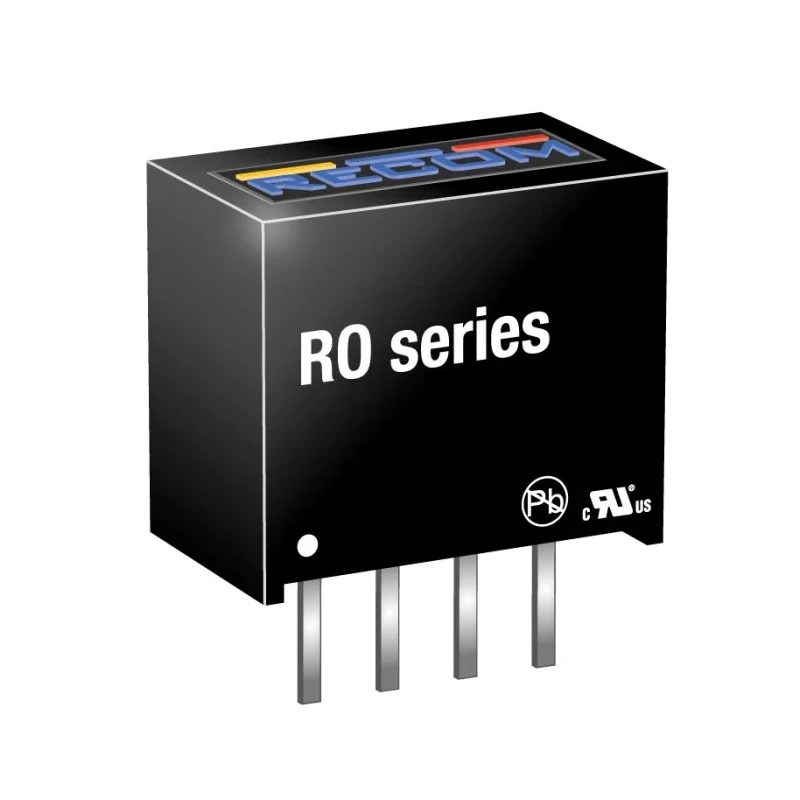

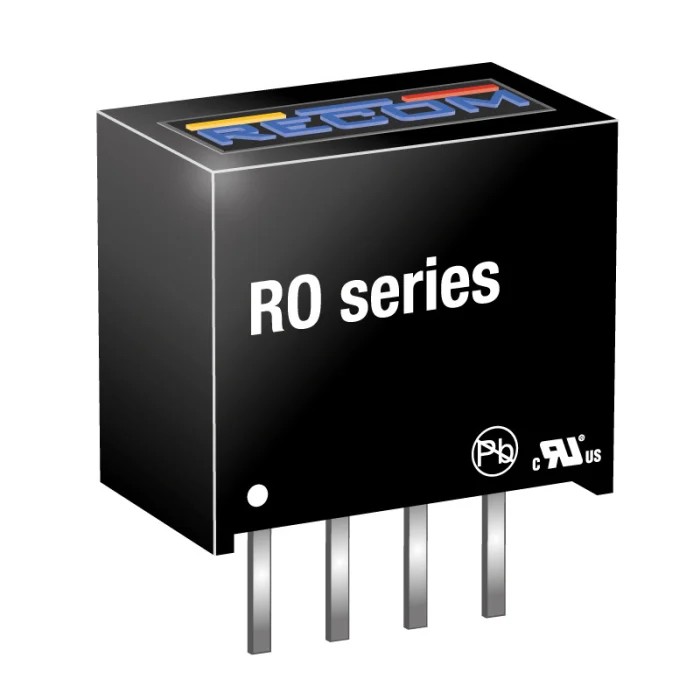

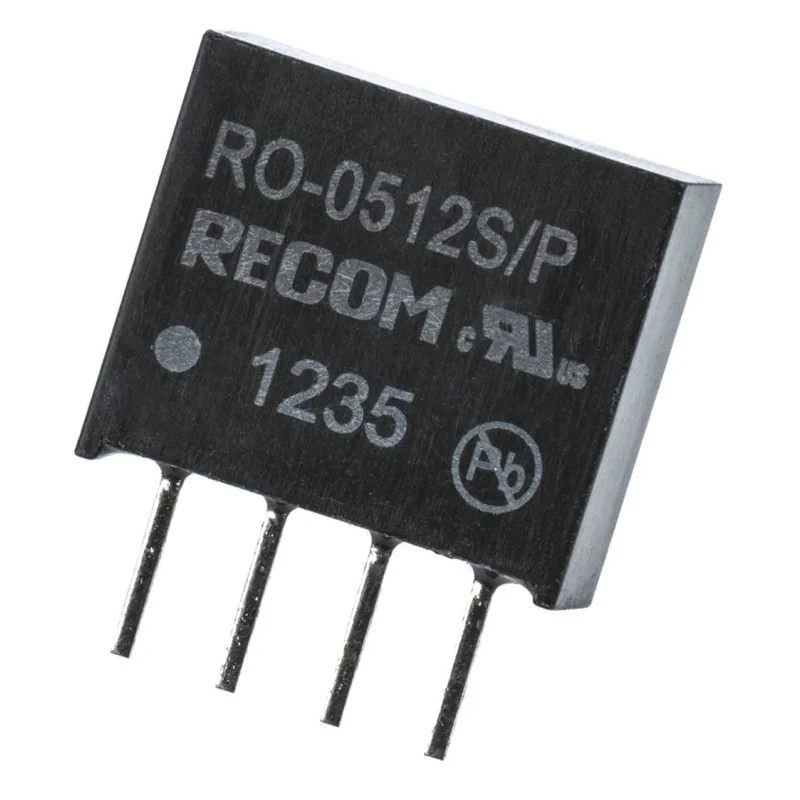

Recom DC/DC Converter, 12V DC Output, 83mA, 5V DC Input, 4.5V Input, 1W, Through Hole, SIP Package, Operating RO-0512S/P
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RO DC/DC Converter, 12V dc/ 83 mA, 5V dc Inp |
| Brand | Recom |
| Efficiency | 84% |
| Length | 11.5mm |
| Model | RO-0512S/P |
| Depth | 10mm |
| Gross Weight | 1.4g |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | RO |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 200000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 83mA |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 1kV dc |
Key Features
- The device features a compact SIP package with a through-hole mount type, ideal for PCB installation.
- Operating temperature ranges from -40°C to 85°C, suitable for industrial environments.
- It offers an output current of 83mA and maintains low ripple and noise of 100mVp-p for signal integrity.
- Provides continuous short-circuit protection to ensure reliable operation and minimal downtime.
- Efficiency reaches up to 84%, reducing heat and power loss during operation.
- Isolation voltage is rated at 1kV DC, enhancing device safety and protection.
- Mean time between failures (MTBF) is 200,000 hours, confirming high reliability.
- Standard approvals include CAN, CSA C22.2 No. 60950-1, IEC60950-1, and UL 60950-1 certifications.
Product Description
Recom RO-0512S/P DC/DC Converter provides a robust 12V DC output with a maximum output power of 1W and 83mA output current. It accepts an input voltage range from 4.5V to 5.5V DC, making it suitable for various DC power conversion needs. This through-hole mounted SIP packaged converter ensures easy installation on printed circuit boards (PCBs).
Featuring a low ripple and noise output of 100mVp-p, the converter maintains signal integrity in sensitive electronic applications. The device operates efficiently with up to 84% efficiency, reducing energy loss and heat generation during operation. Its isolation voltage is rated at 1kV DC, providing electrical isolation and safety for industrial usage.
With a wide operating temperature range from -40°C to +85°C, the RO-0512S/P converter withstands harsh environmental conditions commonly found in industrial and telecommunications equipment. The converter's reliability is further demonstrated with a mean time between failures (MTBF) of 200,000 hours.

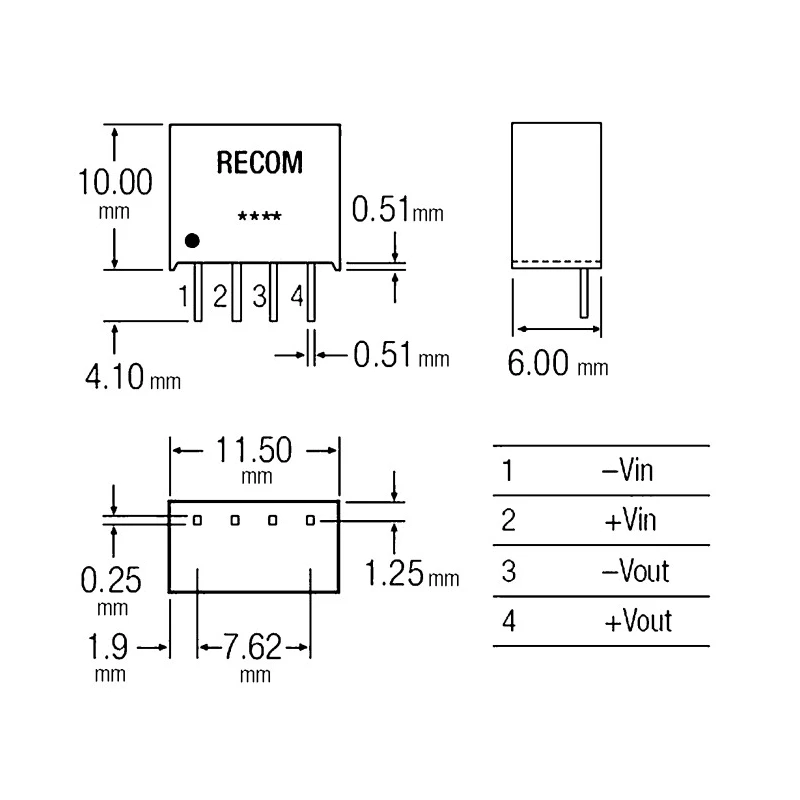

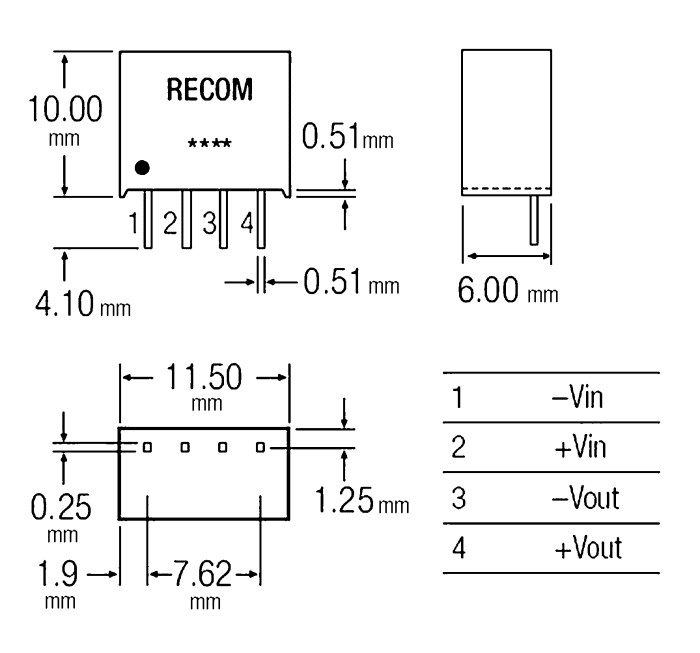

The compact dimensions of 11.5mm length, 6mm width, and 10mm depth allow installation in restricted spaces. This model carries multiple certifications, including CAN, CSA C22.2 No. 60950-1, IEC60950-1, and UL 60950-1, confirming compliance with international safety standards.
The SIP package and through-hole mount type provide secure, stable mounting and ease of assembly. Low noise and ripple output benefit precision electronics and communication equipment. Continuous short-circuit protection limits downtime and enhances operational reliability.
High efficiency contributes to thermal management and energy savings. Applicability in a wide range of industries such as industrial automation, telecommunications, domestic appliances, and renewable energy systems.
This Recom DC/DC converter is an ideal choice for reliable power conversion in industrial and commercial applications. Browse Recom products and DC/DC Converters at EnvMart for similar reliable power components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 12V DC.
It provides a maximum output power of 1W.
This converter accepts an input voltage range from 4.5V to 5.5V DC.
The efficiency of this model reaches up to 84%.
The dimensions are 11.5mm in length, 6mm in width, and 10mm in depth.
It maintains a low ripple and noise output of 100mVp-p.
The isolation voltage is rated at 1kV DC, providing enhanced safety.
It operates within a temperature range of -40°C to +85°C.
This model has one output.
The MTBF is 200,000 hours, indicating high reliability.
It features a through-hole mount type, suitable for PCB installation.
It carries certifications including CAN, CSA C22.2 No. 60950-1, IEC60950-1, and UL 60950-1.
