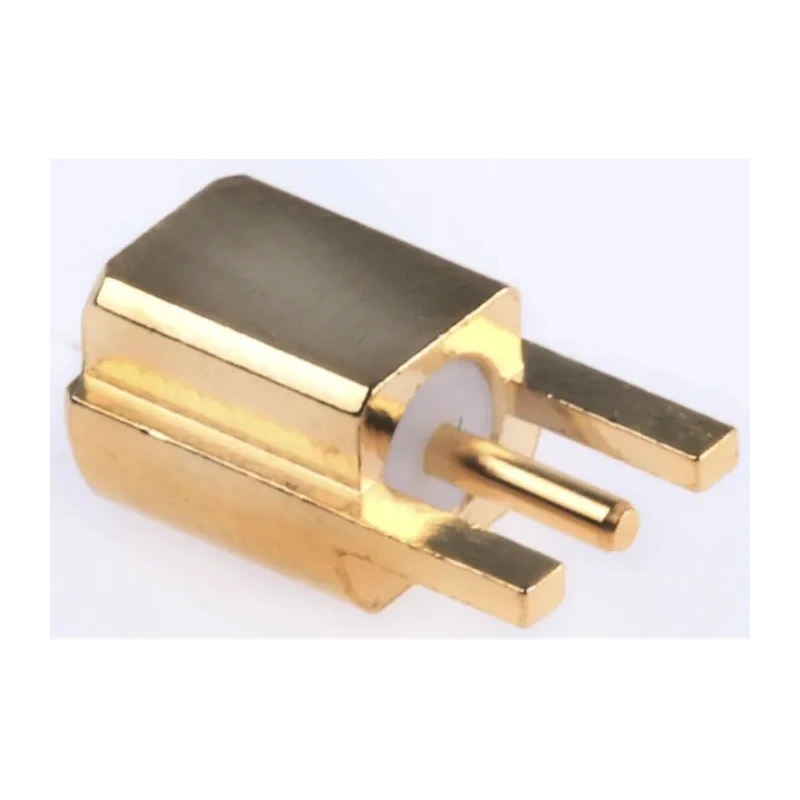

RS PRO Coaxial Connector PCB Female MCX, 50 Ω, Straight Body Solder 656-0148
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Micro Miniature |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 656-0148 |
| Mount Type | PCB |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
| MMCX PCB mount end launcher-RG179 cableBrand | NEUTRAL |
Key Features
- The connector features a micro-miniature size suitable for limited PCB space applications.
- It offers a snap-on coupling mechanism allowing quick connect and disconnect with 360° rotation flexibility.
- Gold plating on the body and contacts provides high conductivity and wear resistance.
- Operating frequency supports up to 6 GHz, suitable for high-frequency applications.
- The connector is constructed with beryllium copper contacts and has normal polarity.
- It supports minimum operating temperature of -55°C and maximum of 165°C.
- Designed for reliable PCB mounting with solder termination ensuring a solid joint.
Product Description
RS PRO 656-0148 is a coaxial connector specifically designed for PCB mounting, featuring a female MCX connector type with a 50 Ω impedance and a straight body design. This micro-miniature coaxial connector is optimal for use in compact PCB layouts where space is limited, such as GPS receivers, wireless devices, and WiFi PCMCIA cards.
The connector employs a snap-on/snap-off coupling mechanism that facilitates fast and easy cable connection and disconnection, enhancing installation efficiency. This mechanism also allows a full 360° rotation, providing flexible PCB layout options.
Its gold-plated body and contacts are crafted from beryllium copper, delivering high electrical conductivity while ensuring durability and resistance to wear. The solder termination type secures solid and reliable mounting onto the PCB.
Operating performance spans from 0 to 6 GHz, supporting high-frequency signal integrity with minimal radio frequency leakage. The connector functions reliably in a wide temperature range from -55°C to 165°C, suitable for various industrial and electronic environments.
The design adheres to RS PRO standards to provide dependable performance in industrial, telecommunications, laboratory, and manufacturing applications requiring robust RF connectivity.
The connector's micro-miniature size enables usage in space-constrained applications. Gold plating on body and contacts enhances conductivity and reduces wear. Snap-on coupling mechanism allows 360° rotation and rapid cable connection.
Solder termination ensures a secure and lasting PCB mount. Operating frequency range up to 6 GHz maintains signal integrity for high-frequency applications. Wide operating temperature range of -55°C to 165°C ensures durability across environments.
Beryllium copper contact material improves electrical performance and longevity.
This RS PRO Coaxial Connector is ideal for electronics manufacturers and engineers requiring a reliable MCX connector for PCB mounting in RF sensitive applications. Explore EnvMart's comprehensive catalog for more connectors and electronic components to suit your industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an operating frequency range of up to 6 GHz, making it suitable for high-frequency applications.
It features a solder termination type, ensuring a secure and reliable mounting onto the PCB.
The impedance of this connector is 50 Ω, which is standard for many RF applications.
The contacts are made of beryllium copper and are gold-plated, providing high conductivity and wear resistance.
It operates reliably within a temperature range of -55°C to 165°C, suitable for various environments.
This connector has a straight body orientation, which is designed for easy integration into PCB layouts.
Yes, its micro-miniature size makes it ideal for limited PCB space applications such as GPS receivers and wireless devices.
It employs a snap-on coupling mechanism that allows for quick connection and disconnection, with 360° rotation flexibility.
This model features a female contact gender, designed for compatibility with other male connectors.
The country of origin for this connector is Taiwan.
It is designed for use in applications requiring robust RF connectivity, such as telecommunications, laboratory, and manufacturing environments.
The body of this connector is also gold-plated, enhancing conductivity and reducing wear over time.
