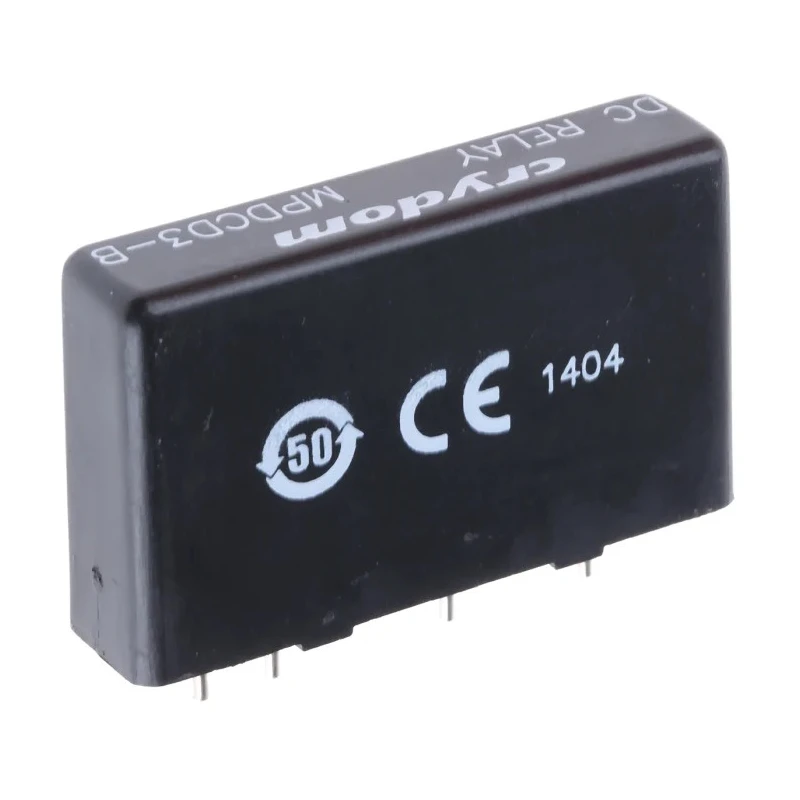

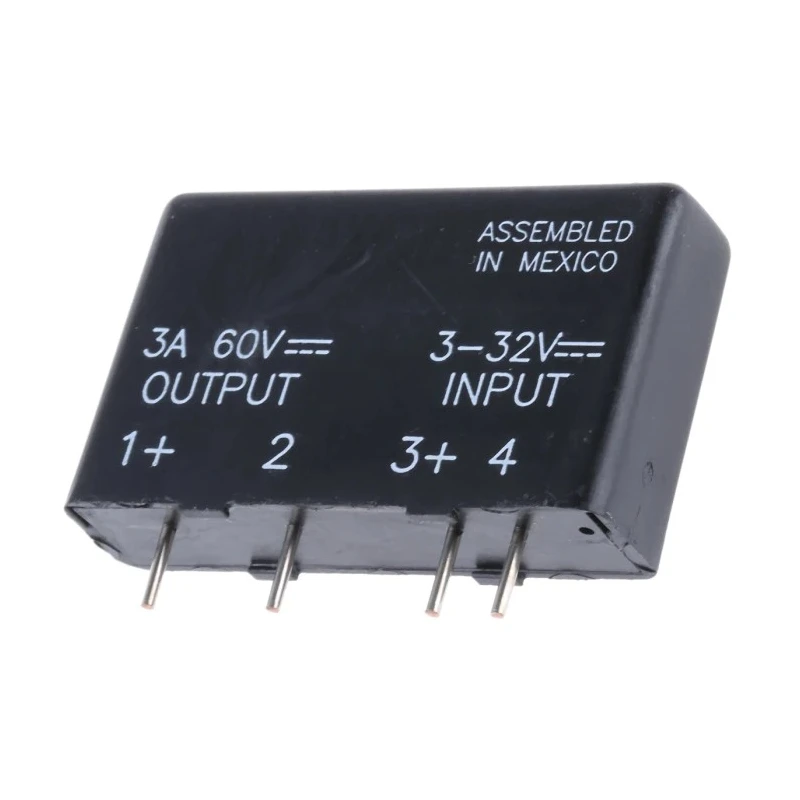

Crydom DRA1 Series Solid State Relay 3 A Load, PCB Mount, 60 V DC Load, 32 V DC Control DRA1

Crydom DRA1 Series Solid State Relay is a high-performance PCB mount relay ideal for controlling electrical equipment requiring swift and reliable switching. It supports a maximum load current of 3 A and operates within a load voltage range of 3 to 60 V DC, while control voltage ranges from 3 V dc to a maximum of 32 V dc.

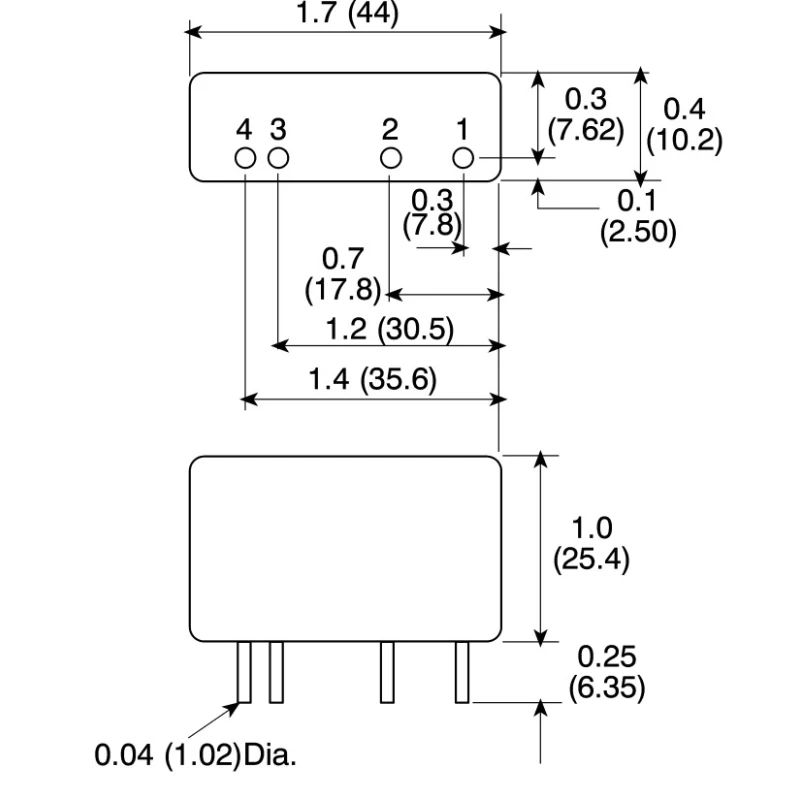

This relay features a compact SIP package measuring 43.1 mm in length, 25.4 mm in height, and a width of 0.25 inches, making it suitable for space-sensitive PCB installations. The device is designed to operate efficiently between -40°C and 80°C, ensuring robustness in industrial and demanding ambient conditions.

The relay is coated with a thermally conductive epoxy compound to effectively dissipate heat generated during switching, enhancing reliability and longevity. Featuring screw terminals allows for secure and convenient electrical connections.

The Crydom DRA1 relay meets multiple international standards including IEC60335-1, IEC 62314, CE, LR 81689, E116950, and EN60950-1, confirming compliance with safety and quality requirements for industrial, medical, and automation applications.

Notable technical features include a minimal off-state leakage current of 5 mA and low capacitance of 8 pF, enhancing efficiency in control circuits. The relay uses a triac output type offering precise control in switching applications.

Commonly used in medical equipment, robotics, automation systems, and other low-power DC electronics, this solid state relay delivers durability without mechanical wear due to the absence of moving parts, enabling rapid switching and extended service life.

Package contents include one solid state relay unit, designed for PCB mounting and immediate integration into electronic assemblies. Explore Crydom solid state relays and related products on EnvMart for reliable industrial-grade electrical components.

Supports maximum load current of 3 A for effective low-power device control. Designed for PCB mounting with a compact SIP package type to save board space. Operates within a voltage range of 3 to 60 V DC load and control voltage up to 32 V DC.

Wide operating temperature range from -40°C to 80°C ensures performance in demanding environments. Constructed with a thermally conductive epoxy coating for enhanced heat dissipation. Equipped with screw terminal type for secure and simple electrical connections.

Complies with IEC60335-1, IEC 62314, CE, LR 81689, E116950, EN60950-1 standards for safety and quality assurance. Off-state leakage current is low at 5 mA to minimize power loss during inactive phase. Features an 8 pF capacitance and triac-type output for precise control.
