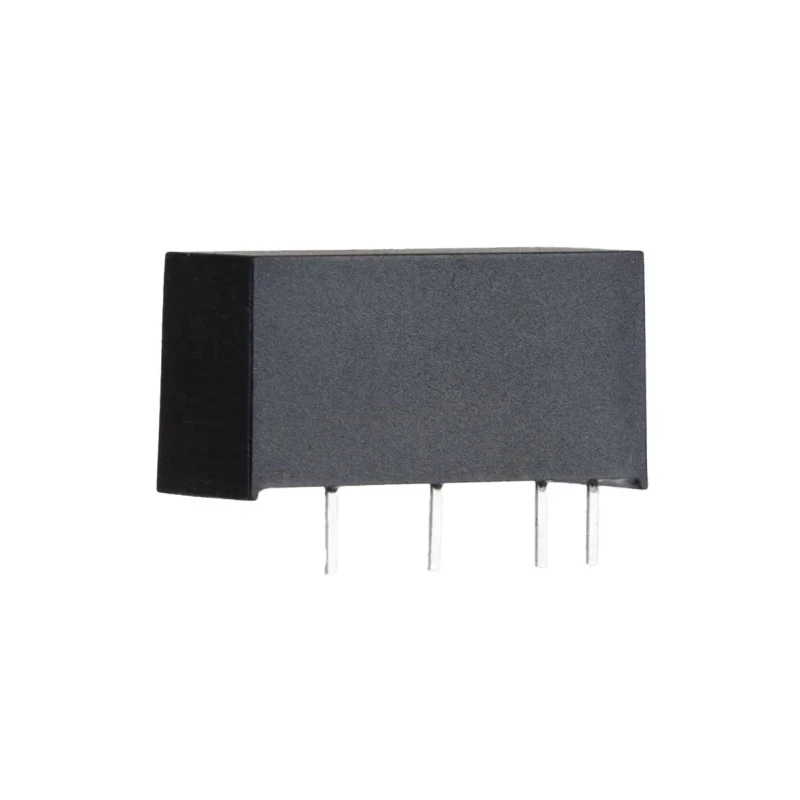

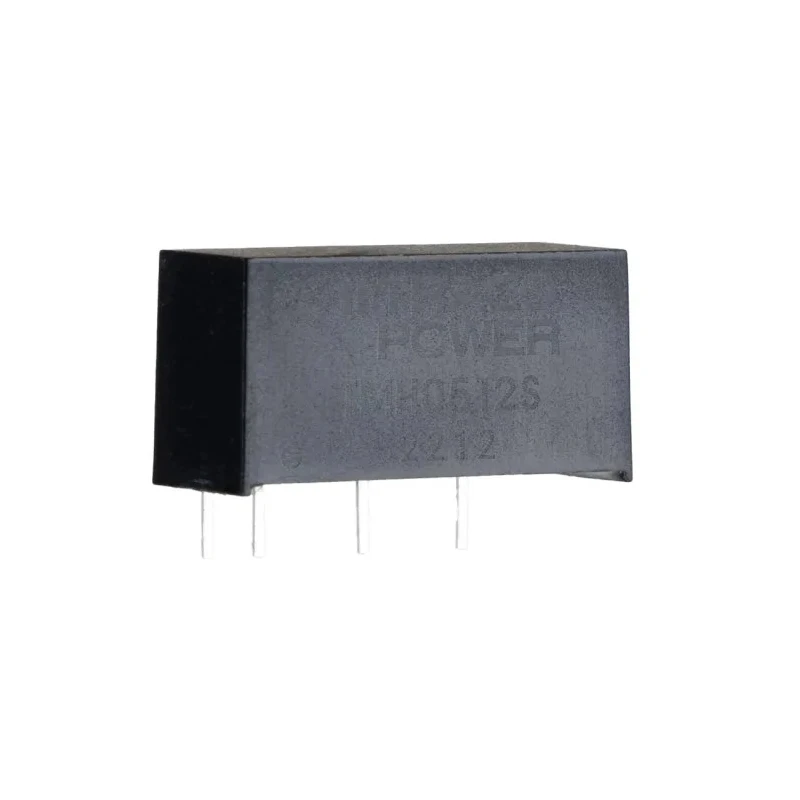

TRACOPOWER DC/DC Converter 12V DC Output 165mA 4.5-5.5V DC Input Through Hole SIP Package 2W TMH 0512S

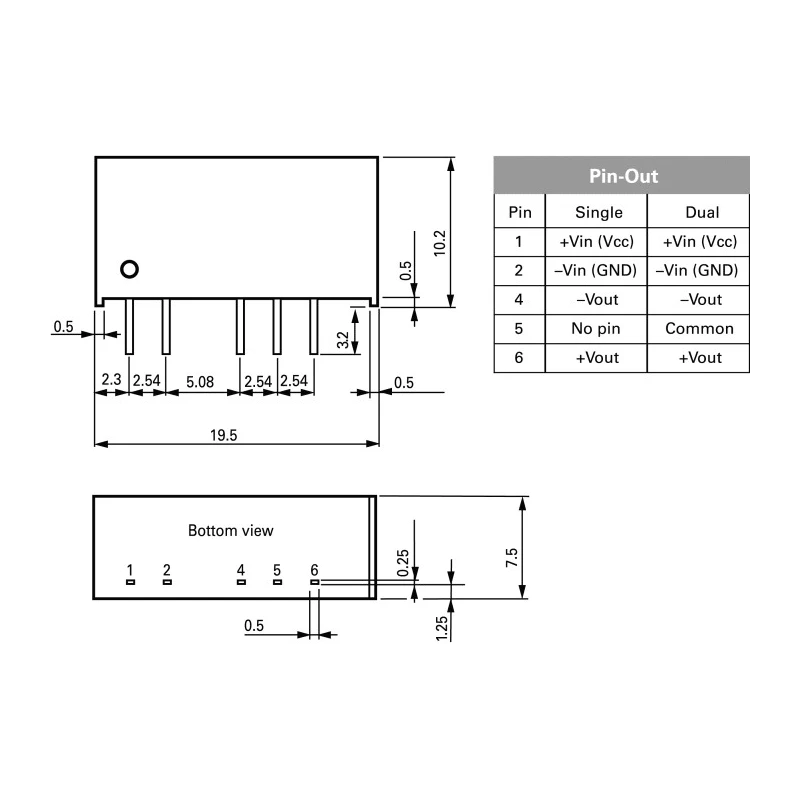

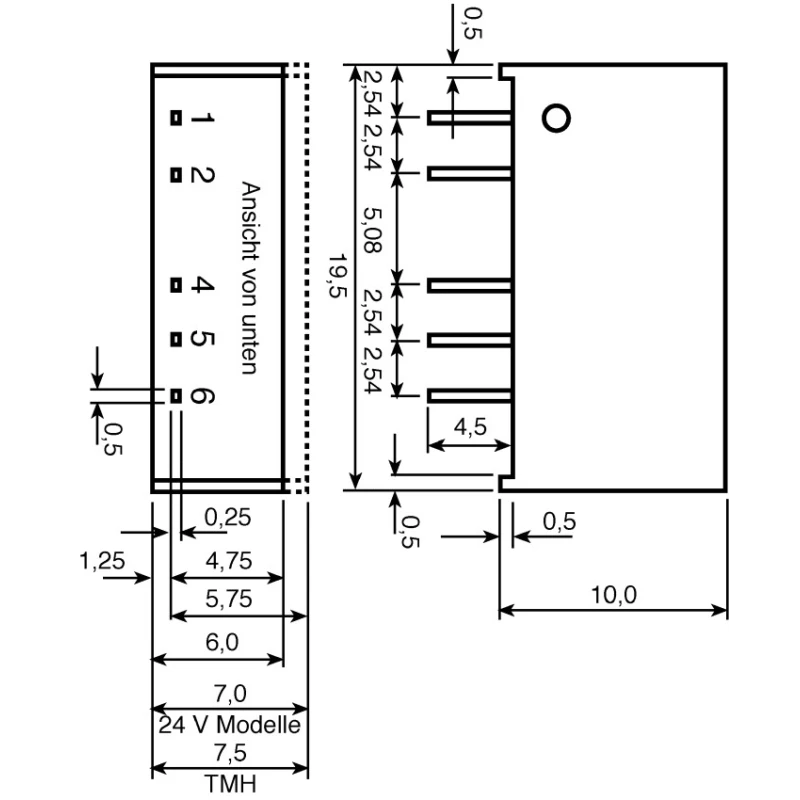

TRACOPOWER TMH 0512S is a high-quality DC/DC converter designed to convert a DC input voltage from 4.5 to 5.5V into a regulated 12V DC output at 165mA current with a power rating of 2 watts. This ultra-compact converter comes in a through-hole SIP package with dimensions 19.5mm length, 7.6mm width, and 10.2mm depth, making it ideal for applications where board space optimization is critical.

The converter features electrical isolation up to 1kV DC, enhancing safety and reducing electrical noise, which is essential for sensitive sensor and instrumentation devices. An efficiency level of 80% ensures reduced energy waste and thermal load, suitable for continuous industrial or embedded use.

Designed to operate reliably in harsh conditions, it supports an operating temperature range from -40°C to +85°C, making it viable for telecommunications, networking equipment, industrial automation, and medical instrumentation requiring isolated power supply modules.

This single output DC/DC converter provides stable voltage conversion with an output adjustment tolerance of ±3%, meeting precision requirements for control circuits.

With a MTBF of 2 million hours, the TMH 0512S delivers dependable long-term performance in demanding environments. It integrates easily with PCB through its standard through-hole pin configuration, including five pins for connections.

Delivers stable 12V DC output voltage for sensitive electronic applications. Provides 165mA output current suitable for low power devices. High efficiency of 80% minimizes energy loss and heat dissipation. Through-hole mounting SIP package measures 19.5 x 7.6 x 10.2 mm for compact PCB integration.

Isolation voltage up to 1kV DC ensures electrical safety and noise suppression. Wide operating temperature range from -40°C to +85°C supports harsh environments. Single output design ideal for embedded systems and telecommunications equipment.

Mean time between failure (MTBF) of 2,000,000 hours demonstrates high reliability. Manufactured in Taiwan, Province Of China with quality control standards.

Ideal for industrial, telecommunications, embedded control, and medical applications, TRACOPOWER’s TMH 0512S DC/DC converter provides reliable isolated power in a miniature footprint. Explore the EnvMart category for DC/DC Converters for more technical options and solutions.
