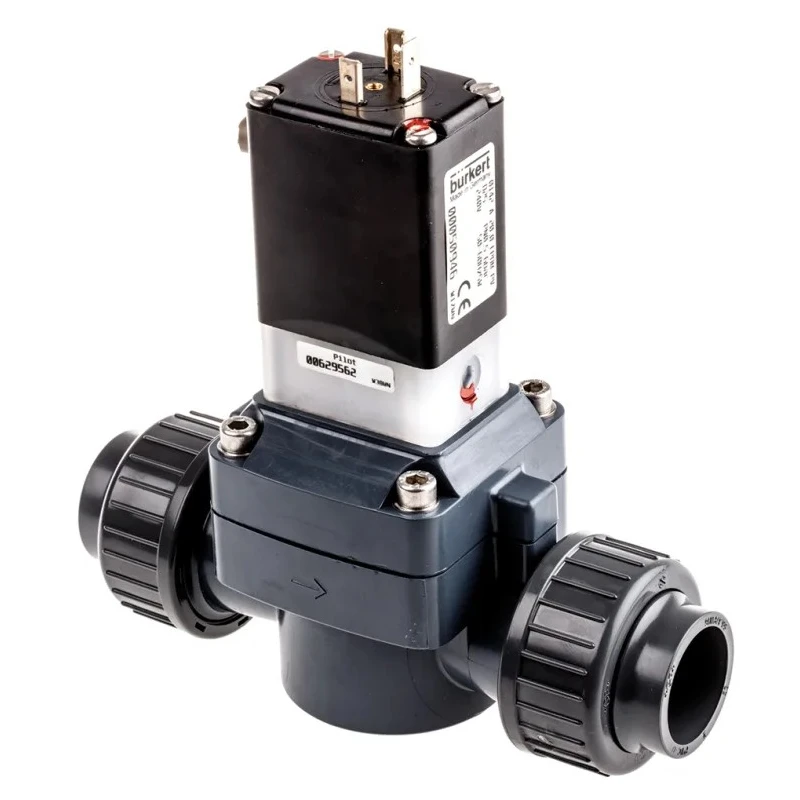

Burkert Solenoid Valve, 2 Port, NC, DN 15 to 50, 240V AC, PVC Body, 6 bar Max Pressure, Flow Factor Kv 14m³/h 050946

Burkert 050946 solenoid valve is a 2 port normally closed (NC) valve designed for piping sizes DN 15 to 50 with a supply voltage of 240V AC. Constructed from robust polyvinyl chloride (PVC), it is suitable for use with aggressive and contaminated media.

The valve operates with a maximum pressure capacity of 6 bar and temperature range from 0°C to 40°C, making it ideal for various industrial applications. Its servo-assisted diaphragm design requires a minimum differential pressure of 0.5 bar for valve actuation.

This valve features true union inlet and outlet connections that facilitate servicing and replacement. The flow factor Kv of 14 m³/h ensures efficient fluid control within the system. The valve includes a lockable manual override feature enhancing operational safety and control.

The maximum closing time is approximately 4 seconds, with an opening time of 800 milliseconds supporting responsive actuation. It meets ISO 12238 standards and has an IP65 rating signifying dust tight and water jet protection.

Applications span across chemical cleaning, food and beverage processing, water treatment, and handling alkalis and acids up to medium concentration. Its non-metallic valve internals prevent corrosion and extend service life.

Maximum operating pressure of 6 bar. Flow factor Kv of 14 cubic meters per hour. Operating temperature range from 0°C to 40°C. Servo assist ensures reliable diaphragm operation. Lockable manual override enhances safety during maintenance.

True union connections facilitate easy installation and upkeep. ISO 12238 certification and IP65 rating guarantee quality and protection. Suitable for aggressive gases and liquids, chemical cleaning, and water treatment.

Originating from Germany, Burkert's 050946 model exemplifies engineering designed for demanding industrial valve applications. Explore more quality industrial valves and Solenoid Valves on EnvMart.
