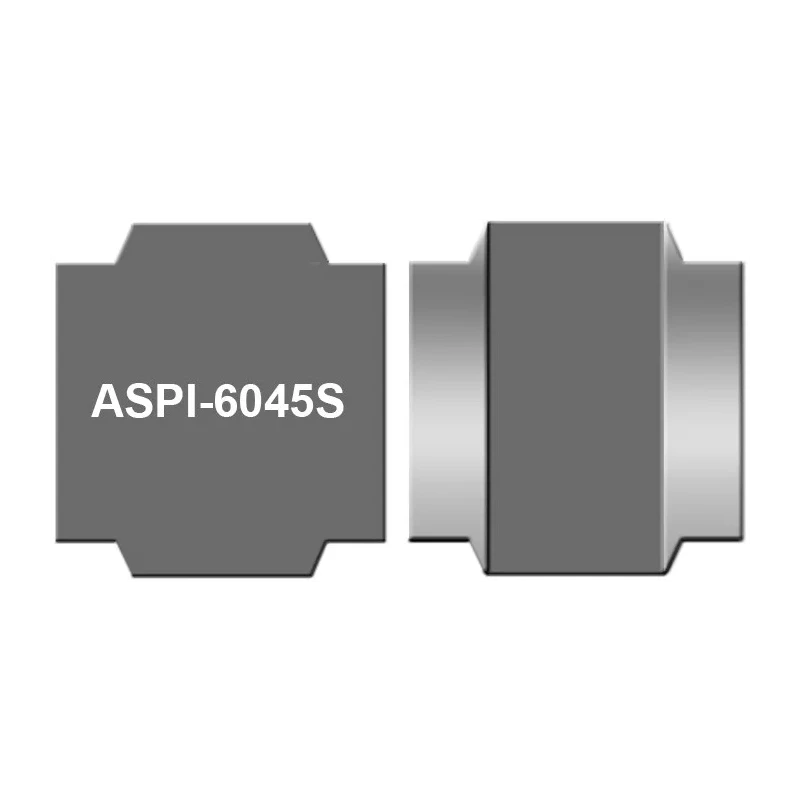

Abracon Shielded Surface Mount Inductor with Ferrite Core 18 μH Flat Wire Winding ±20% 1.85 A Idc ASPI-6045S-180M-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 4.5mm |
| Length | 6mm |
| Model | ASPI-6045S-180M-T |
| Depth | 4.5mm |
| Packaging | Tape & Reel |
| Series | ASPI-6045S |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 18μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 1.85A |
| Pin Count | 2 |
| Maximum DC Resistance | 0.08Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Flat Wire Winding |
Key Features
- The inductor features a ferrite core that provides low core loss and efficient magnetic shielding.
- It has an inductance tolerance of ±20% suitable for various circuit designs.
- The maximum DC current rating is 1.85 amperes, supporting moderate current applications.
- Compact 6 mm by 4.5 mm by 4.5 mm dimensions allow integration in dense PCB layouts.
- The device has a low DC resistance of 0.08 ohms to minimize power loss and heat generation.
- RoHS compliant construction ensures environmentally friendly manufacturing standards.
- Operates reliably across -40°C to 125°C temperature range for industrial usage.
- Packaged in tape & reel format for automated pick-and-place assembly processes.
Product Description
Abracon ASPI-6045S-180M-T is a shielded surface mount power inductor featuring a ferrite core and flat wire winding designed to deliver stable inductance of 18 μH with a tolerance of ±20%. This robust component supports a maximum direct current of 1.85 A, making it ideal for power supply filtering and energy storage in DC/DC converters.
The magnetic shielding minimizes electromagnetic interference, ensuring high signal integrity in portable communication equipment, office automation devices, LCD and DVD players, modems, and set-top boxes. Its compact 6 mm length and 4.5 mm height and depth dimensions optimize board real estate in advanced electronics manufacturing.
With a maximum DC resistance of just 0.08 Ω, this inductor provides efficient current handling and reduced power loss. The component is molded and RoHS compliant, supporting environmentally conscious industrial applications.
Operating across a wide temperature range from -40°C to 125°C, the ASPI-6045S-180M-T is engineered for reliable performance in harsh environments. The inductor comes packaged in tape & reel format to facilitate high-volume automated manufacturing processes.
The ferrite core construction minimizes core loss and enhances energy efficiency. Flat wire windings reduce parasitic capacitance, improving frequency response. Magnetically shielded design limits electromagnetic interference.
High current rating supports demanding DC/DC converter applications. Compact SMD footprint enables dense PCB layouts. RoHS compliance ensures safe, environmentally friendly manufacturing. Wide operating temperature range suits industrial and commercial environments.
Tape & reel packaging supports automated assembly lines.
This Abracon surface mount power inductor is suitable for industrial, commercial, and consumer electronics manufacturing including telecommunications, computing, and multimedia devices.
Explore more Surface Mount Inductors from Abracon and other leading brands at EnvMart for your electronic component needs.
