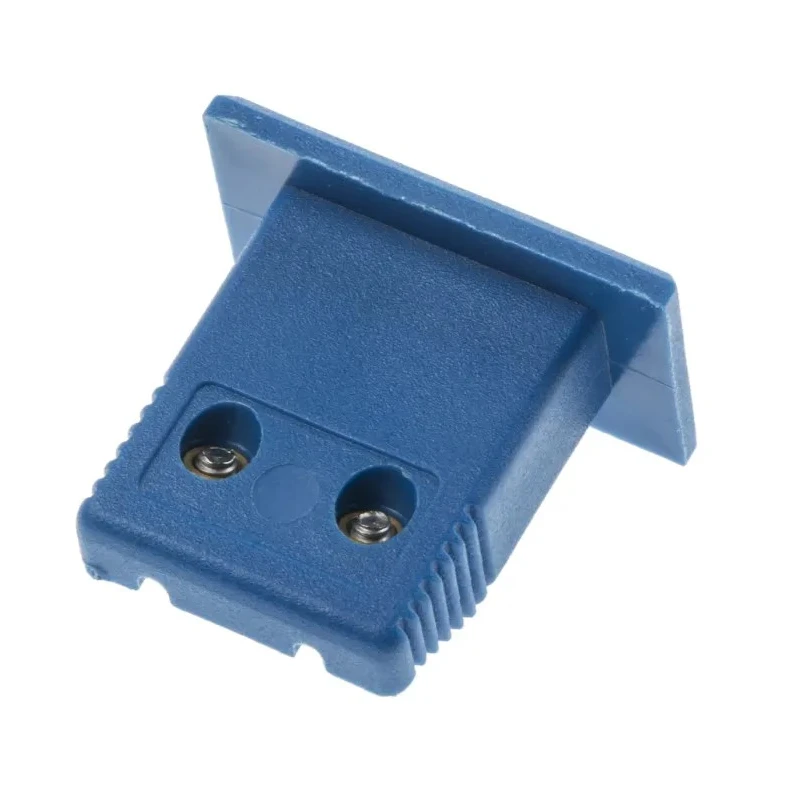

RS PRO Thermocouple Panel for Use with Type T Thermocouple ANSI RoHS Compliant 769-1206
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 769-1206 |
| Accessory Type | Thermocouple Panel |
| For Use With | Type T Thermocouple |
| Standards/Approvals | ANSI, RoHS Compliant |
Key Features
- Colour-coded panel mount thermocouple socket connector for Type T thermocouples.
- Constructed from rugged glass-filled thermoplastic for durability.
- Flush-mounted moulded fascia ensures neat panel installation.
- Includes clip for secure and quick rear panel mounting.
- Accepts polarized flat pin contacts guaranteeing accurate connection.
- Capable of withstanding temperatures up to 120°C.
- Allows thermocouple cables up to 4mm diameter with captive screw clamps.
- Polarity and thermocouple type are clearly marked on the connector housing.
Product Description
RS PRO 769-1206 Thermocouple Panel is a miniature, ANSI colour-coded panel mounting socket connector specifically designed for Type T thermocouples. It is RoHS compliant and constructed using rugged glass-filled thermoplastic material to withstand demanding industrial conditions up to 120°C. This connector features a moulded fascia for flush fitting on the panel front, ensuring a tidy and professional installation while accepting polarized flat pin contacts for precise and reliable signal transmission.

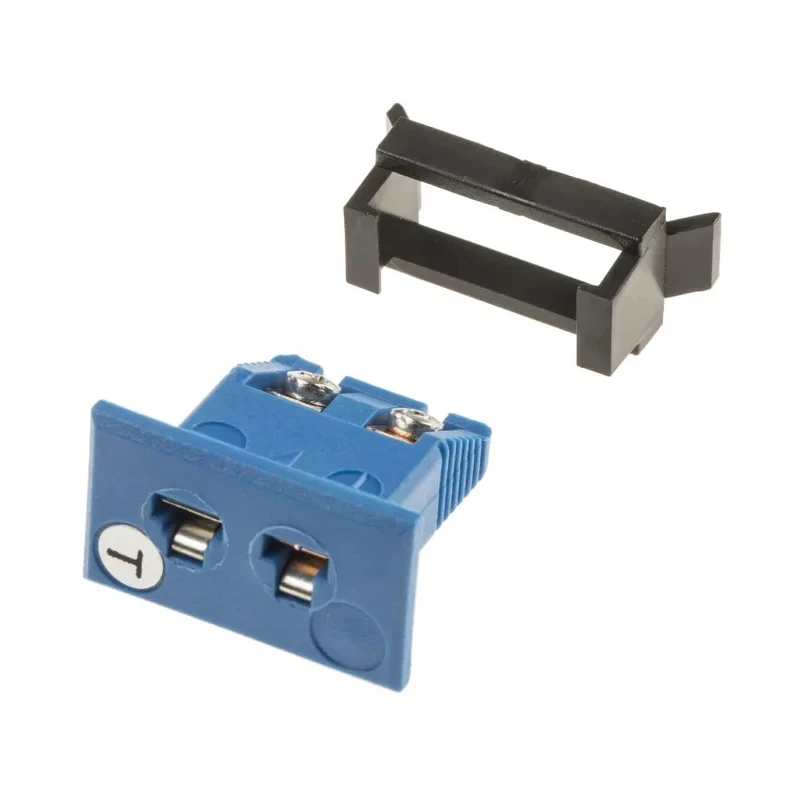

The thermocouple wires are secured via simple captive screw clamps that accommodate cables up to 4mm in diameter. The connector housing is clearly marked with polarity and thermocouple type to prevent incorrect connections. This model is supplied with a clip that enables quick and secure attachment to the rear of the panel, enhancing installation efficiency.
Thermocouple connectors such as this unit are essential for extending or replacing thermocouple wiring in temperature sensing applications. Maintaining the use of the same material in contacts prevents distortion of temperature signals, which this product ensures by matching Type T thermocouple alloys.
Industrially, these connectors are applicable in various sectors requiring accurate temperature measurement, including manufacturing, electrical automation, HVAC systems, and laboratory instrumentation.
Additional accessories including aluminium faceplates are available for multi-way panel mounting applications, supporting 2-way to 24-way configurations for greater system integration flexibility.
Colour-coded for quick thermocouple identification. Accurate signal transmission through alloy-matched contacts. Flush fit fascia for aesthetic panel mounting. High durability with glass-filled thermoplastic construction.
Secure rear panel mounting clip included. Explore more RS PRO Thermocouple Connectors and accessories on EnvMart for reliable and industrial-grade temperature sensing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This panel connector is specifically designed for Type T thermocouples.
It is constructed from rugged glass-filled thermoplastic, ensuring durability in industrial conditions.
This connector can withstand temperatures up to 120°C.
The thermocouple wires are secured via captive screw clamps that accommodate cables up to 4mm in diameter.
Yes, it includes a clip for quick and secure rear panel mounting.
It is compliant with ANSI standards and RoHS regulations.
Yes, the connector housing is clearly marked with polarity and thermocouple type to prevent incorrect connections.
It is used for extending or replacing thermocouple wiring in temperature sensing applications.
The specific dimensions of the connector are not provided in the available data.
Yes, it is applicable in sectors requiring accurate temperature measurement, including manufacturing, electrical automation, HVAC systems, and laboratory instrumentation.
Yes, additional accessories including aluminium faceplates for multi-way panel mounting applications are available.
The country of origin for this thermocouple panel is India.
