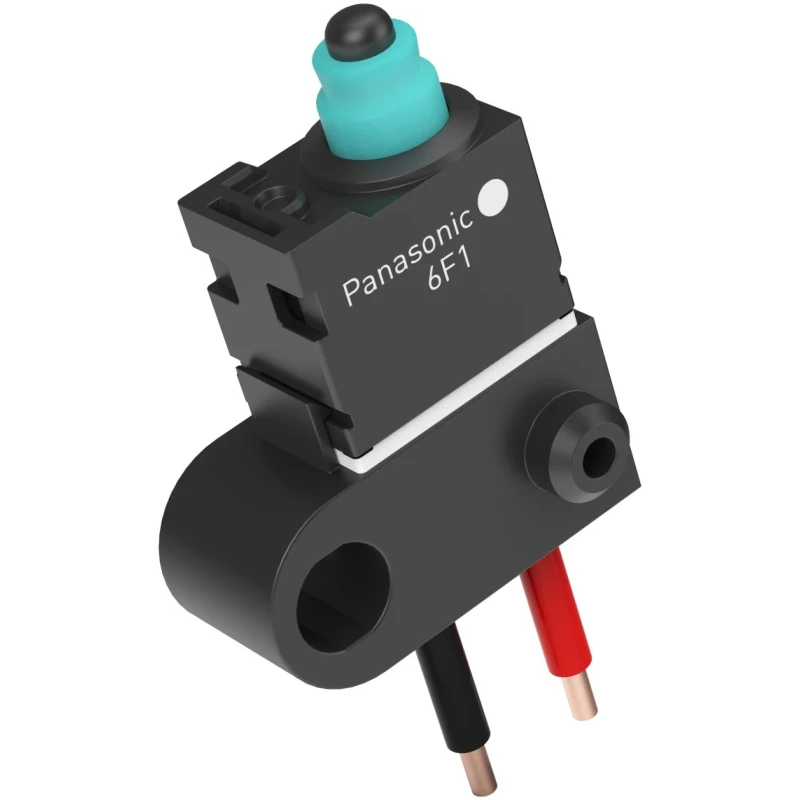

Panasonic Pin Plunger Snap Action Micro Switch, Solder Terminal, 50mA, 16 V dc, SPST, IP67 ASQM17420-A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Model | ASQM17420-A |
| IP Rating | IP67 |
| Series | ASQM1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | REACH, RoHS |
| Contact DC Voltage | 16V dc |
| Switch Contact Current | 50mA |
| Operating Force | 1.5N |
| Microswitch Type | Subminiature |
Key Features
- Equipped with a pin plunger actuator type for precise operations.
- Features solder terminal connection suitable for secure PCB mounting.
- Contact configuration is SPST (Single Pole Single Throw) for simple ON/OFF control.
- Provides IP67 ingress protection ensuring dust-tight and water immersion resistance.
- Operates reliably over a temperature range from -40°C to 85°C.
- Has a low operating force of 1.5N for minimal actuation effort.
- Designed for silent operation with sliding contacts to reduce noise during switching.
- Compliant with REACH and RoHS environmental standards for safety and sustainability.
Product Description
Panasonic ASQM17420-A Pin Plunger Snap Action Micro Switch is a high-precision, subminiature switch that delivers reliable contact performance for low power applications. It features a robust pin plunger actuator and solder terminals, making it ideal for integration into compact electrical and automation systems.
This micro switch supports a contact rating of 50mA at 16 V dc and a single pole single throw (SPST) contact configuration, suitable for simple make/break switching circuits. The IP67 rated enclosure ensures excellent protection against dust ingress and water immersion, making it reliable in harsh industrial environments.
The switch operates silently through sliding contacts and requires an operating force of just 1.5N, supporting smooth and durable operation. It is rated to function efficiently over a wide temperature range from -40°C up to 85°C, allowing usage in automotive, household appliances, power tools, and industrial automation applications.
Compliant with REACH and RoHS standards, the switch meets environmental and safety directives for hazardous substances. Manufactured in Thailand, it guarantees consistent manufacturing quality.
Equipped with a pin plunger actuator type for precise operation and mechanical durability. Solder terminals provide secure and reliable soldered electrical connections. Single Pole Single Throw (SPST) configuration for simple circuit control.
IP67 rated design ensures protection against dust and water ingress. Wide operating temperature range of -40°C to 85°C for diverse environments. Low operating force of 1.5N facilitates easy actuation. Silent operation via sliding contacts reduces electromagnetic noise.
Conforms to REACH and RoHS standards for environmental safety. Manufactured in Thailand with assured quality standards.
This micro switch is well suited for use in industrial automation, electrical equipment, automotive controls such as door and shift lever position detection, household appliances like vacuum cleaners and air conditioners, and various power tools. Its compact and durable design ensures dependable performance in critical switching tasks requiring precise actuation and environmental resistance.
Explore EnvMart's wide range of Panasonic Micro Switches and related automation components designed for professional and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch features a Single Pole Single Throw (SPST) contact configuration, suitable for simple ON/OFF control circuits.
It operates efficiently over a wide temperature range from -40°C to 85°C, making it suitable for various environments.
The switch can handle a maximum contact current of 50mA.
It is equipped with solder terminals, providing secure and reliable soldered electrical connections.
The micro switch has an IP67 rating, ensuring it is dust-tight and resistant to water immersion.
The operating force required for actuation is just 1.5N, allowing for minimal effort during operation.
Yes, it complies with REACH and RoHS environmental standards, ensuring safety and sustainability.
This micro switch is manufactured in Thailand, ensuring consistent manufacturing quality.
It features a pin plunger actuator type, designed for precise operations and mechanical durability.
This model is suitable for applications in industrial automation, automotive controls, household appliances, and power tools.
It belongs to the ASQM1 series, which includes subminiature micro switches.
The contact voltage rating for this model is 16V dc, making it suitable for low power applications.
