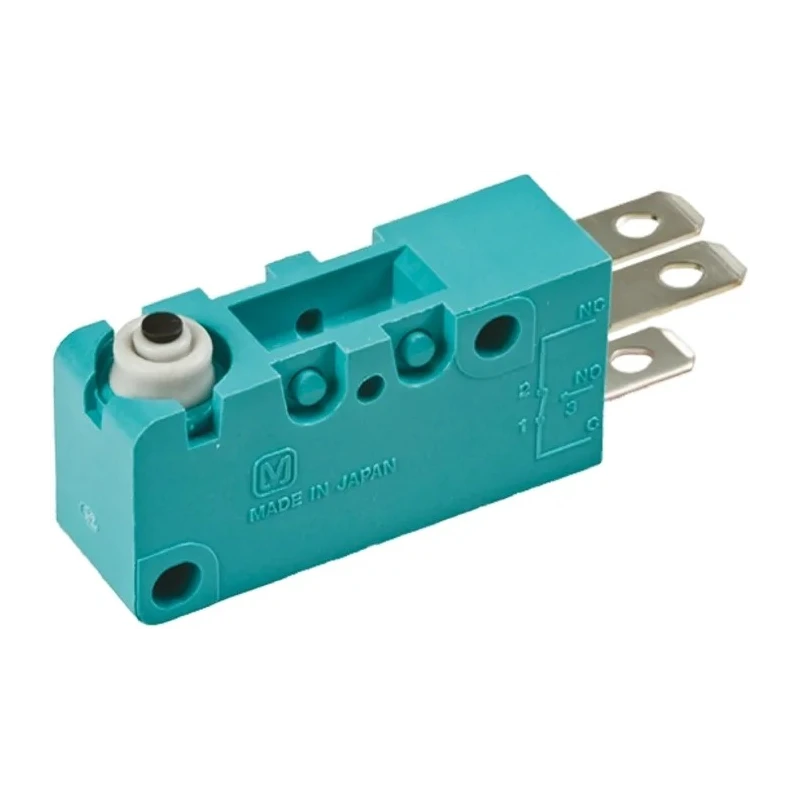

Panasonic Pin Plunger Micro Switch, Tab Terminal, 5A, 250 V ac, 24 V dc, SPCO, IP50 ABV1210403

Panasonic ABV1210403 Pin Plunger Micro Switch is a reliable miniature switch designed for precise electrical control in industrial and consumer applications. Featuring a tab terminal type and single-pole changeover (SPCO) contact configuration, this micro switch supports a 5A contact current rating at both 250 V ac and 24 V dc. Its polypropylene homopolymer housing provides durability and an IP50 ingress protection rating, making it suitable for environments with moderate dust exposure.

The micro switch is engineered for demanding operational conditions with an operating force of 0.98 N and a temperature tolerance ranging from -40°C to 85°C. The switch boasts an extended mechanical life rated for five million operations, ensuring dependable performance over its lifetime.

Certified to multiple international standards including CSA, RoHS, SEMKO, UL, and VDE, this component meets rigorous quality and safety benchmarks. Typical use cases encompass home appliances, automotive systems, and various electrical automation controls requiring precise switch action and long service life.

The compact 33mm length pin plunger actuator adds versatility for installation in limited-space assemblies. Additional design features include sealed construction with elastomer double moulding and ultrasonic swaging technologies, contributing to the switch's uniform sealing and environmental resistance.

The miniature pin plunger design ensures sensitive actuation with low operating force. Polypropylene homopolymer housing delivers resilience against physical and environmental stress. Wide operating temperature range supports diverse industrial and consumer applications.

High mechanical lifespan guarantees longevity in continuous operation scenarios. Multiple safety and compliance certifications confirm product appropriateness for critical uses. Sealed miniature design with IP50 rating protects internal components from dust ingress.

Compact dimensions enable flexible integration into complex electrical assemblies. Single-pole changeover contact configuration facilitates versatile wiring schemes.

This micro switch is a vital component for ensuring reliable control and signal switching in electrical circuits across home appliances, automotive equipment, manufacturing, and automation industries. Panasonic's ABV series is recognized for precision engineering and industrial durability.
