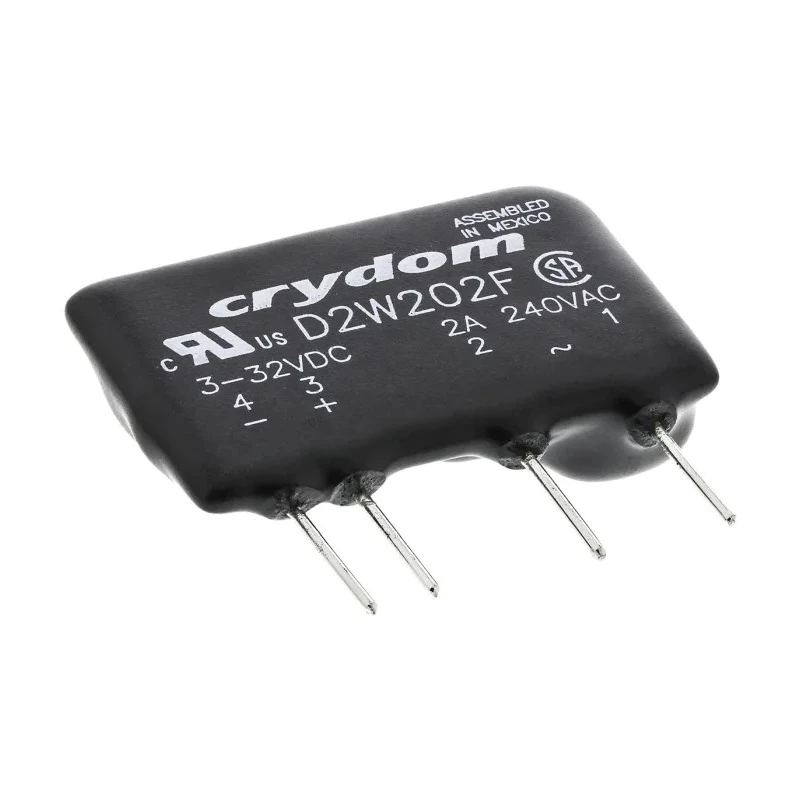

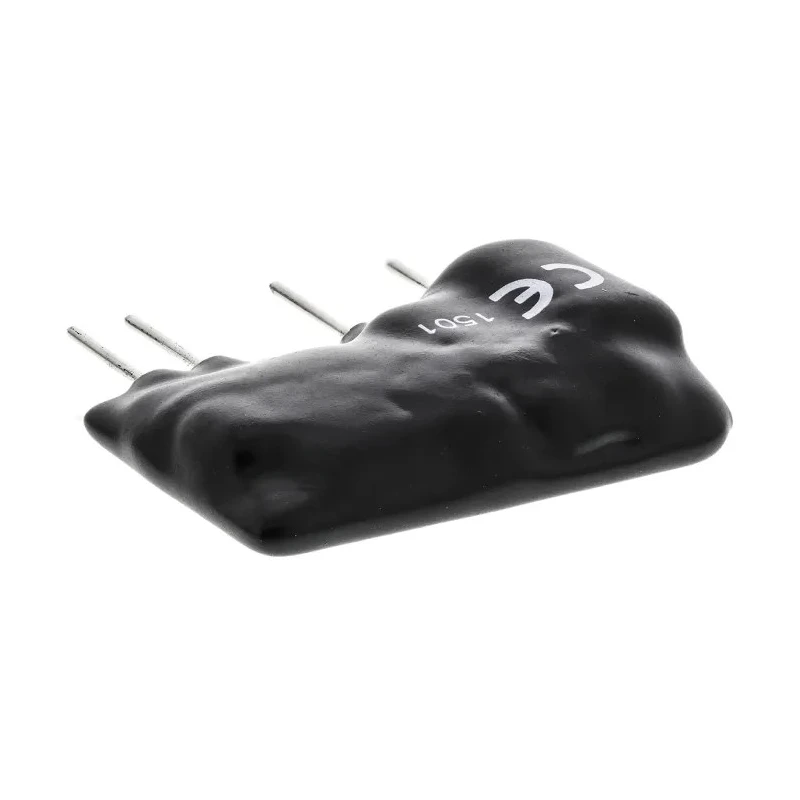

Crydom D2W Series Solid State Relay, 2 A Load, PCB Mount, 280 V Load, 32V DC Control D2W202F

Crydom D2W202F solid state relay is designed for reliable, long-life switching of electrical circuits without mechanical wear. Featuring a 2 amp maximum load current and load voltage up to 280 V, this PCB mount relay is suited for low voltage industrial applications requiring fast switching capabilities.

The relay uses a triac output type with zero cross switching function, delivering minimal electrical noise and stress on connected components. Its encapsulation in thermally conductive epoxy allows for efficient heat dissipation, extending operational lifespan. Operating temperatures range between -30°C and 80°C, making it suitable for harsh industrial and automation environments.

With a low off-state leakage current of 8 mArms and a capacitance of 10 pF, the D2W202F excels in maintaining signal integrity and reducing power losses. The relay also features an on-state resistance of 1 gigaohm, ensuring minimal conduction losses during activation.

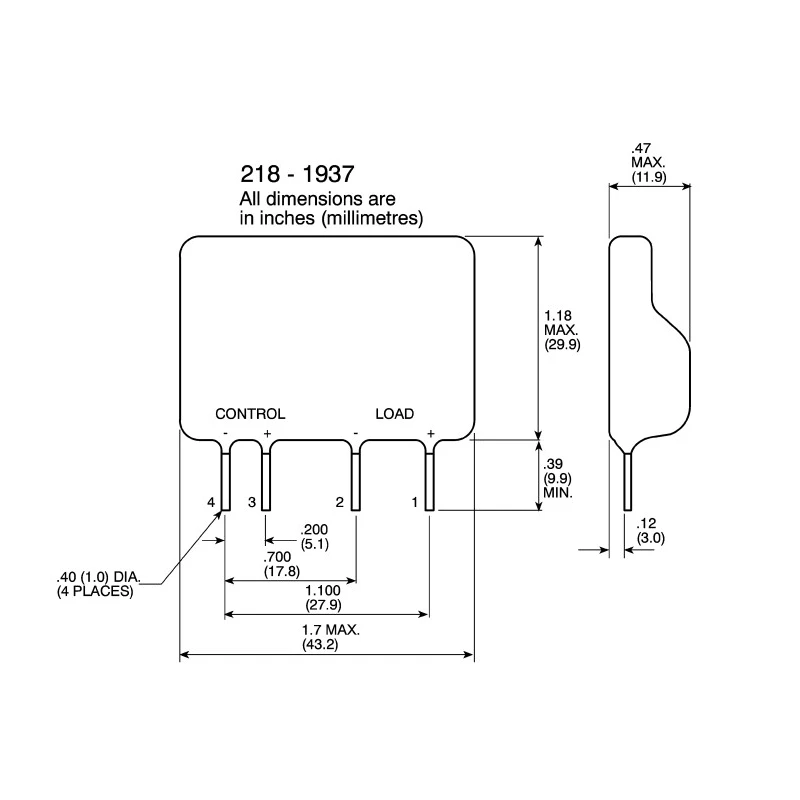

The compact form factor measuring 43.2 mm length, 29.9 mm height, and a slim width fits easily into PCB layouts with standard solder pins for secure mounting. Electrical isolation of 4000 Vrms enhances safety protecting both equipment and operators.

This model carries UL, CSA, and LR81689 approvals showcasing stringent compliance and industry reliability. It is ideal for industrial lighting controls, HVAC systems, and various automation tasks requiring solid state switching.

Supports a maximum load current of 2 amps for controlling loads efficiently. PCB mount type with solder pins ensures a secure and reliable connection. Wide operating temperature range from -30°C to 80°C for demanding environments.

Low off-state leakage current of 8 mArms minimizes power loss during off cycles. High isolation voltage of 4000 Vrms provides excellent electrical protection. Fast switching with turn-on/off time at half a cycle enhances operational responsiveness.

Encapsulated in thermally conductive epoxy for efficient heat dissipation. Compliance with UL, CSA, and LR standards ensures safety and reliability. Explore the Electronics & Electricals category for more advanced Solid State Relays and control solutions on EnvMart.
