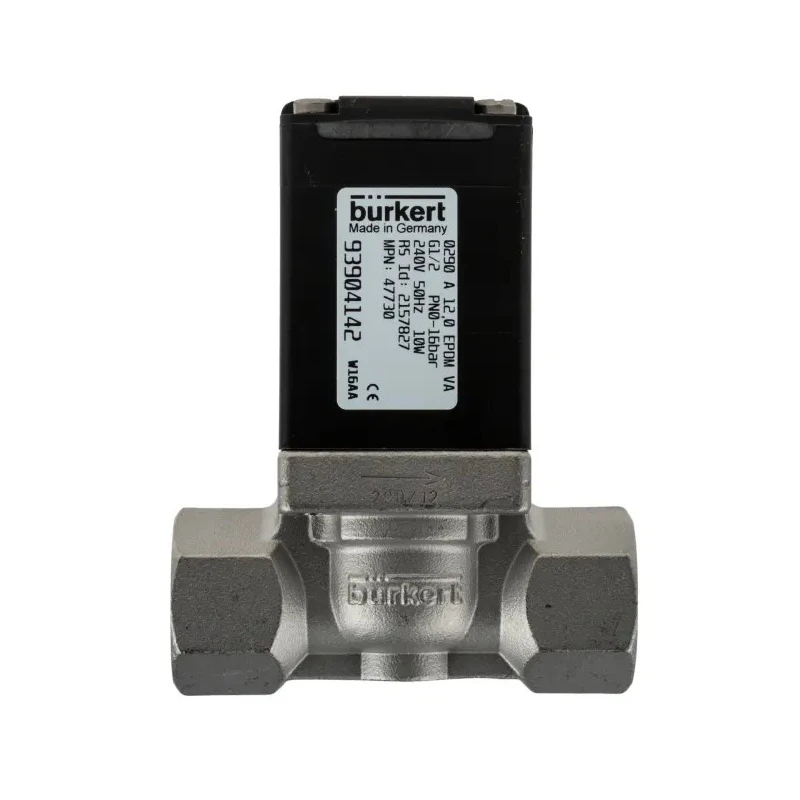

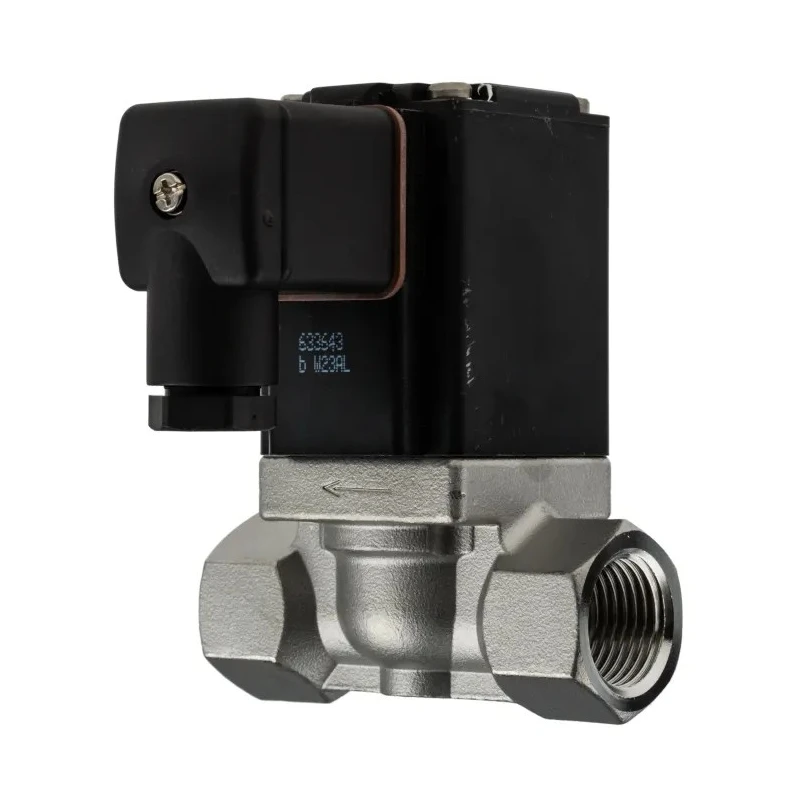

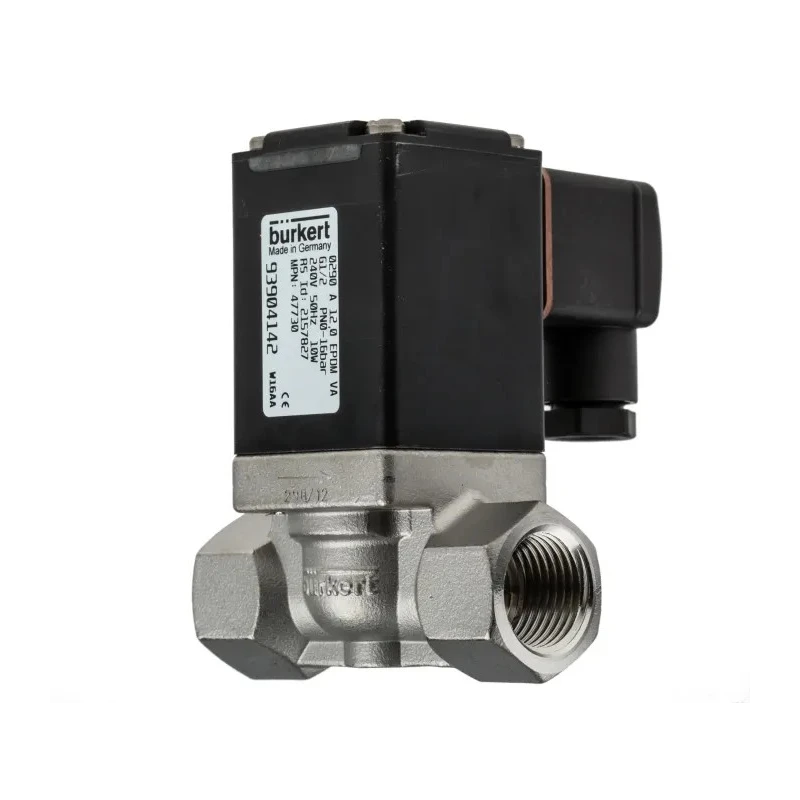

Burkert Stainless Steel 2 Port NC Solenoid Valve 1/2 inch Threaded, 240V AC, Series 0290, Model 047730
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 16 bar |
| Outlet Connection Type | Threaded |
| Model | 047730 |
| Series | 0290 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | 30°C |
| Orifice Diameter | 12mm |
| Supply Voltage | 240V ac |
| Inlet Port Size | 1/2 in |
| Default Valve Position | NC |
| Inlet Thread Standard | G |
| Maximum Opening Time | 250ms |
| Flow Factor Kv | 2.8m³/h |
| Maximum Closing Time | 2000ms |
| Burkert Solenoid Valve 078723, 2 Port, NC, 230V acBrand | Burkert |
Key Features
- Features a robust stainless steel body suitable for gas and liquid applications.
- Designed for maximum operating pressure of 16 bar and temperatures from 30°C to 55°C.
- Equipped with servo assist for efficient valve actuation.
- Orifice diameter of 12 mm with flow factor Kv of 2.8 m³/h for optimal fluid handling.
- Thread standards conform to G type BSP parallel ports for compatibility.
- Maximum valve opening time of 250 ms and closing time of 2000 ms ensuring responsive operation.
- 3 Pin DIN connector rated IP65, rotatable in 90° increments providing installation flexibility.
- Manufactured in Germany, suitable for industrial, HVAC, and fluid power applications.
Product Description
Burkert 047730 is a high-quality stainless steel solenoid valve designed for precise control of gas and liquid flow in industrial and fluid power systems. This 2 port normally closed valve features a 1/2 inch threaded inlet and outlet with BSP parallel threads (G standard), ensuring compatibility with compression fittings. Operating at 240V AC, it supports a maximum pressure of 16 bar, minimum operating temperature of 30°C, and maximum operating temperature of 55°C.
The valve series 0290 offers zero head pressure capability and includes servo-assist for smooth and reliable operation. It has an orifice diameter of 12 mm and a flow factor Kv of 2.8 m³/h allowing efficient fluid handling. The maximum valve opening and closing times are 250 ms and 2000 ms respectively, enabling fast response in automated control systems.

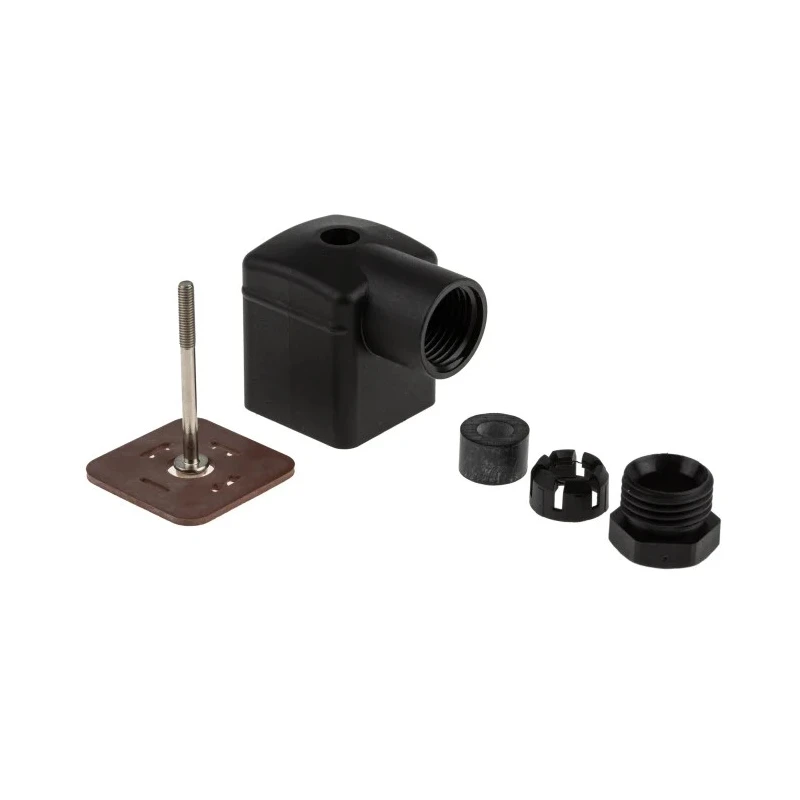

The valve is fitted with a 3 Pin DIN connector rated IP65, which can be positioned through 360° in 90° increments for ease of installation. Suitable for domestic water supplies and neutral, oil-free fluids and gases, it incorporates WRC approval on brass bodies while this stainless steel model ensures corrosion resistance and durability.
Manufactured in Germany, this Solenoid Valve is ideal for use in industrial automation, HVAC, water treatment, and process control applications where reliable fluid control is critical. It supports an ambient temperature up to 55°C and is designed to operate with low power consumption.
Robust stainless steel body for corrosion resistance and longevity. Two port normally closed design for controlled flow interruption. Threaded 1/2 inch BSP ports for easy installation with standard fittings. Operating voltages at 240V AC suitable for standard electrical systems.
High pressure rating of up to 16 bar enabling diverse applications. Fast operation times improve system responsiveness. IP65 rated DIN connector offers reliable electrical protection. Manufactured under stringent German standards ensuring quality.
Explore EnvMart's extensive selection of industrial valves and fittings for your mechanical, fluid power, and automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 16 bar.
The orifice diameter of this model is 12 mm.
This valve operates within a temperature range of 30°C to 55°C.
It requires a supply voltage of 240V AC.
The maximum opening time is 250 ms, and the closing time is 2000 ms, ensuring responsive operation.
The flow factor Kv for this solenoid valve is 2.8 m³/h.
It features a 1/2 inch threaded inlet and outlet with G type BSP parallel threads.
The default valve position for this model is normally closed (NC).
This solenoid valve belongs to the Series 0290.
The 3 Pin DIN connector is rated IP65, providing protection against dust and water.
This solenoid valve is manufactured in Germany.
It is suitable for industrial automation, HVAC, water treatment, and process control applications.
