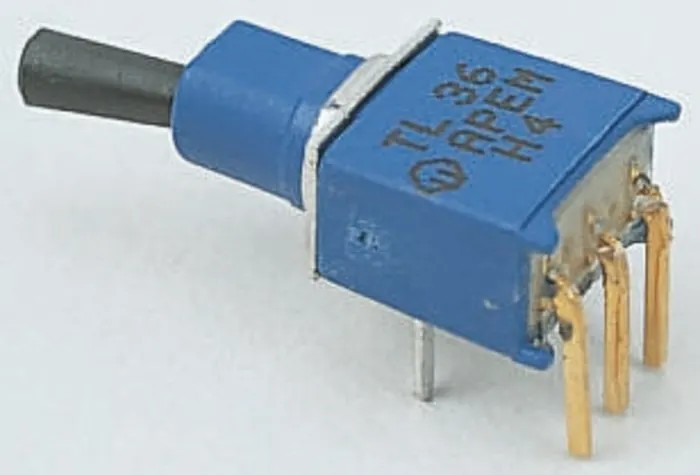

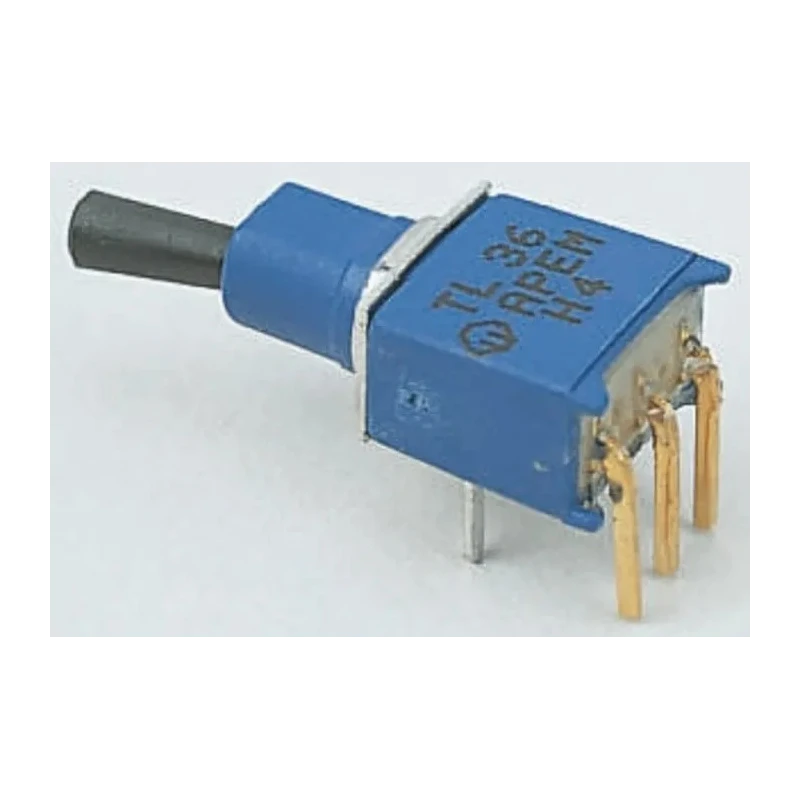

APEM Toggle Switch PCB Mount On-On SPST Through Hole Terminal 20V DC 20V AC TL36W004000
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 19.58mm |
| Length | 9.6mm |
| Model | TL36W004000 |
| Width | 8.1mm |
| Mount Type | PCB |
| Series | TL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 5.5mm |
| Contact DC Voltage | 20V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 20V ac |
| Actuator Material | Brass |
Key Features
- Designed for PCB mounting with through hole terminal type for secure connections.
- Operates with On-On switch operation and SPST contact configuration.
- Supports a switch contact current rating of 400mA.
- Constructed with a brass actuator material and a 5.5mm actuator length.
- The switch features a height of 19.58mm, width of 8.1mm, and length of 9.6mm.
- Operates effectively within a temperature range from -30°C to 85°C.
- Complies with RoHS standards ensuring environmental and safety compliance.
- Manufactured in France as part of the TL series of plastic lever switches.
Product Description
APEM TL36W004000 is a high-quality toggle switch designed for PCB mount applications. Featuring a robust On-On switch operation with SPST contact configuration, this switch operates at 20V DC and 20V AC, making it suitable for low voltage switching needs in various electronic circuits.
This toggle switch utilizes through hole terminal type for reliable mounting and connection onto printed circuit boards. The actuator is made of durable brass material with a 5.5mm length to provide smooth and precise manual control. The device dimensions include a height of 19.58mm, width of 8.1mm, and length of 9.6mm, making it compact enough for dense PCB layouts.
Rated for a contact current of 400mA, it is ideal for controlling signals and low power loads. It is engineered to operate safely in temperature extremes, ranging from -30°C up to 85°C, providing stable performance in harsh environmental conditions.
As part of the TL series plastic lever switches, the TL36W004000 model maintains consistent characteristics ideal for demanding electrical and electronic applications. The product conforms to RoHS compliance standards, ensuring environmental sustainability and restricted hazardous substance use.
Manufactured in France, this toggle switch suits multiple industrial and commercial electronics, automation, and control gear. It is a preferred choice for reliable panel and PCB switching requirements.
Designed for PCB mounting with through hole terminal type for secure connections. Operates with On-On switch operation and SPST contact configuration. Supports a switch contact current rating of 400mA. Constructed with a brass actuator material and a 5.5mm actuator length.
The switch features a height of 19.58mm, width of 8.1mm, and length of 9.6mm. Operates effectively within a temperature range from -30°C to 85°C. Complies with RoHS standards ensuring environmental and safety compliance.
Manufactured in France as part of the TL series of plastic lever switches. Explore the selection of Toggle Switches and other switching solutions on EnvMart for your industrial, electrical, and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features an SPST (Single Pole Single Throw) contact configuration, allowing it to operate in an On-On switch mode.
This model has a height of 19.58mm, a width of 8.1mm, and a length of 9.6mm, making it compact for PCB layouts.
The maximum operating temperature for this switch is 85°C, allowing it to function effectively in high-temperature environments.
It supports a switch contact current rating of 400mA, suitable for controlling low power loads.
This switch utilizes a through hole terminal type, ensuring secure connections when mounted on printed circuit boards.
The actuator is constructed from brass, providing durability and a smooth manual control experience.
It operates at both 20V DC and 20V AC, making it versatile for various electronic applications.
The minimum operating temperature is -30°C, allowing it to operate in colder environments.
Yes, it complies with RoHS standards, ensuring it meets environmental and safety regulations.
This model is part of the TL series of plastic lever switches, which are designed for various electrical applications.
The toggle switch is manufactured in France, ensuring adherence to quality standards in its production.
The actuator length of this switch is 5.5mm, allowing for effective manual operation.
