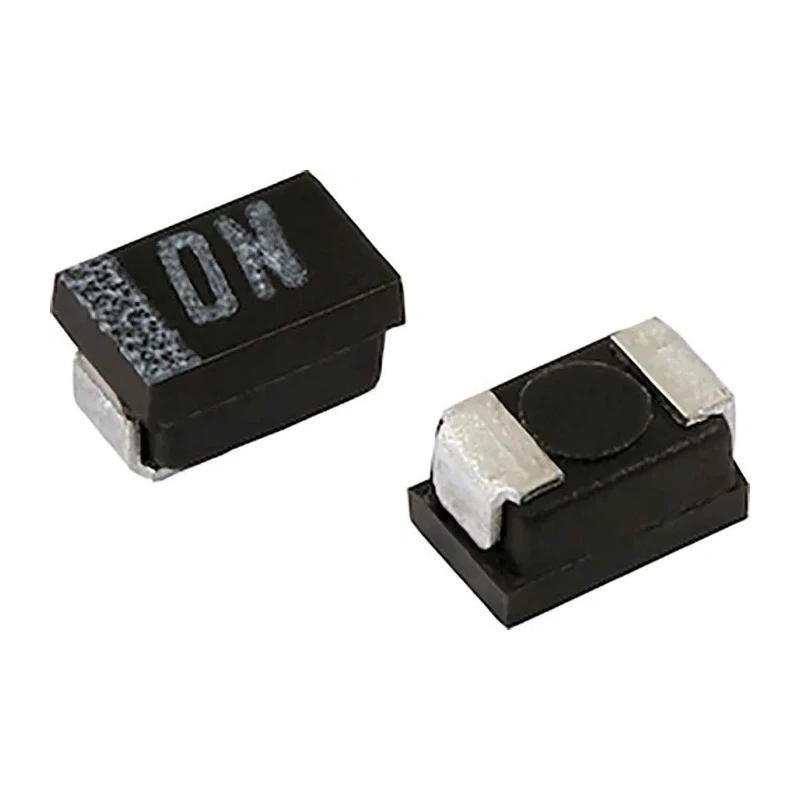

Vishay 100 nF 25V dc Solid Tantalum Surface Mount Chip Capacitor 2012-12 Package TMCP1E104KTRF
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 25V dc |
| Brand | Vishay |
| Height | 1.2mm |
| Length | 2mm |
| Model | TMCP1E104KTRF |
| Depth | 1.25mm |
| Technology | Tantalum |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | TMCP |
| Maximum Operating Temperature | 125°C |
| Capacitance | 100nF |
| Minimum Operating Temperature | -55°C |
| Polarity | Polar |
| Terminal type | Solder |
| Dissipation Factor | 6% |
| Leakage Current | 0.5μA |
| Electrolyte Type | Solid |
| Standards/Approvals | RoHS, EIA-717 |
| Package/Case | 2012-12 |
| Equivalent Series Resistance ESR | 33Ω |
| Tolerance ± | -10% |
| Terminations | 100 % matte tin |
Key Features
- This capacitor features a capacitance of 100 nanofarads with a tolerance of -10%.
- Rated for 25 volts DC operation with an equivalent series resistance (ESR) of 33 ohms.
- Designed for surface mounting with solder terminal types and polar polarity.
- Operating temperature range spans from -55°C up to 125°C ensuring robust performance.
- The capacitor offers low leakage current of 0.5 microamperes and a dissipation factor of 6%.
- Manufactured to RoHS and EIA-717 standards with matte tin terminations for reliable soldering.
- Compact dimensions of 2mm length, 1.25mm depth, and 1.2mm height facilitate space-saving designs.
- Packaged on tape and reel for efficient automated assembly processes.
Product Description
Vishay TMCP1E104KTRF is a high-quality 100 nF solid tantalum capacitor designed for surface mount applications requiring compact size and stable electrical performance. Featuring a 2012-12 package case, this capacitor employs solid electrolyte technology to deliver excellent capacitance stability and low leakage current at voltages up to 25V DC.
Its polar construction and matte tin terminations guarantee efficient soldering and polarity compliance. The device operates reliably between -55°C and 125°C, suitable for demanding industrial and audio-visual environments. With an ESR of 33Ω and a dissipation factor of 6%, it delivers consistent performance in filtering and decoupling circuits.
The capacitors are supplied on tape and reel packaging, enhancing assembly speed and automation in production lines. Measuring just 2 mm in length, 1.25 mm in depth, and 1.2 mm in height, it lends itself to high-density PCB layouts without compromising electrical reliability.
Manufactured in Japan and conforming to RoHS and EIA-717 standards, the TMCP Series ensures environmental compliance and industry acceptance. Typical uses include industrial electronics, audio and visual equipment, and general-purpose electronic circuits where space and performance are crucial.
100 nF capacitance with tolerance of -10%. 25 volts DC voltage rating ideal for various electronic applications. Surface mount type with solder terminals and polar polarity design. Operating temperature range from -55°C to 125°C.
Low leakage current of 0.5μA and 6% dissipation factor for efficient operation. Compact 2mm by 1.25mm by 1.2mm size facilitating space-saving PCB design. Tape & reel packaging supports automated manufacturing processes. RoHS and EIA-717 compliant for environmental and safety standards.
Solid electrolyte type enhances capacitor life and stability. Country of origin is Japan ensuring quality manufacturing. Explore similar high quality electronic components and capacitors with EnvMart, your trusted source for industrial-grade electronic parts and components.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 100 nanofarads (nF) with a tolerance of -10%.
It is rated for operation at 25 volts DC.
The capacitor measures 2 mm in length, 1.25 mm in depth, and 1.2 mm in height.
The equivalent series resistance (ESR) is 33 ohms.
It operates reliably within a temperature range from -55°C to 125°C.
This capacitor is packaged on tape and reel for efficient automated assembly processes.
It features solder terminal types suitable for surface mounting.
The leakage current is specified at 0.5 microamperes (μA).
It is manufactured to RoHS and EIA-717 standards, ensuring environmental compliance.
The dissipation factor is 6%.
It employs solid electrolyte technology for stable performance.
