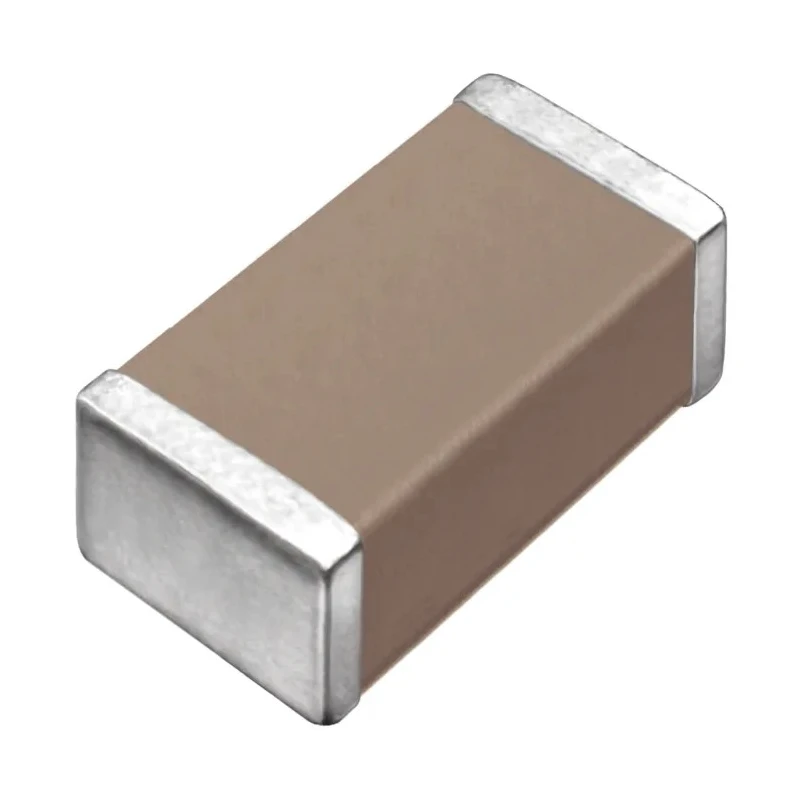

TDK 4.7 nF Multilayer Ceramic Capacitor, 100V dc, ±10% Tolerance, Surface Mount, Case 0805, X7R CEU4J2X7R2A472K125AE

TDK CEU4J2X7R2A472K125AE is a high reliability multilayer ceramic capacitor (MLCC) designed for surface mounting on printed circuit boards. It features a capacitance of 4.7 nF with a voltage rating of 100V dc, and a tolerance of ±10%. This capacitor adopts the X7R type dielectric, ensuring thermal stability across a wide operating temperature range from -55°C to 125°C, suitable for demanding industrial and automotive applications.

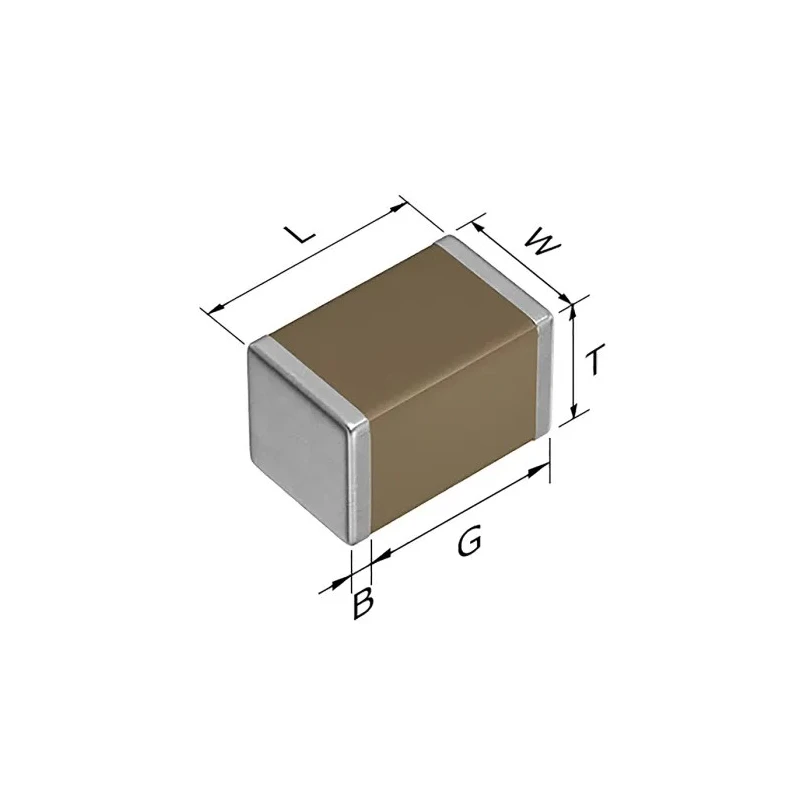

The device is packaged in a compact 0805 case size with dimensions of 2 mm length, 1.25 mm width, and 1.25 mm height, making it ideal for space-constrained electronics. The capacitor is supplied on embossed tape reels that support automated pick-and-place mounting processes, increasing manufacturing efficiency.

This capacitor is certified to the AEC-Q200 automotive standard, underlining its suitability for automotive battery line and power supply systems where enhanced reliability and thermal shock resistance are required. It uses solder terminations for secure electrical connections and employs TDK's advanced multilayer layering technique, with dielectric thickness at the submicron level and capable of up to 1000 layers, achieving capacitance close to that of tantalum capacitors.

The multilayer ceramic structure provides fail-safe functions by serially configuring capacitors internally to improve stress and thermal shock resistance, which additionally allows the reduction of printed circuit board space usage.

Typical applications include automotive power supply without protective circuits and battery line filtering. TDK's advanced material technologies used in this capacitor ensure durability and precision for industrial, automotive, and electronic manufacturing sectors.

Case size 0805 ensures compact footprint suitable for high-density PCBs. X7R dielectric offers excellent temperature stability and reliability. Operating temperature range from -55°C to 125°C enables broad application conditions.

Embossed tape packaging facilitates automated assembly processes. AEC-Q200 automotive standard compliant for use in automotive electronic systems. Height, width, length dimensions of 1.25mm x 1.25mm x 2mm provide a low-profile design.

Solder termination type supports reliable solder joints and ease of mounting. Advanced multilayer construction supports up to 1000 layers with submicron dielectric thickness. Explore more Multilayer Ceramic Capacitors and electronic components in the Electronics & Electricals category at EnvMart for comprehensive industrial solutions.
