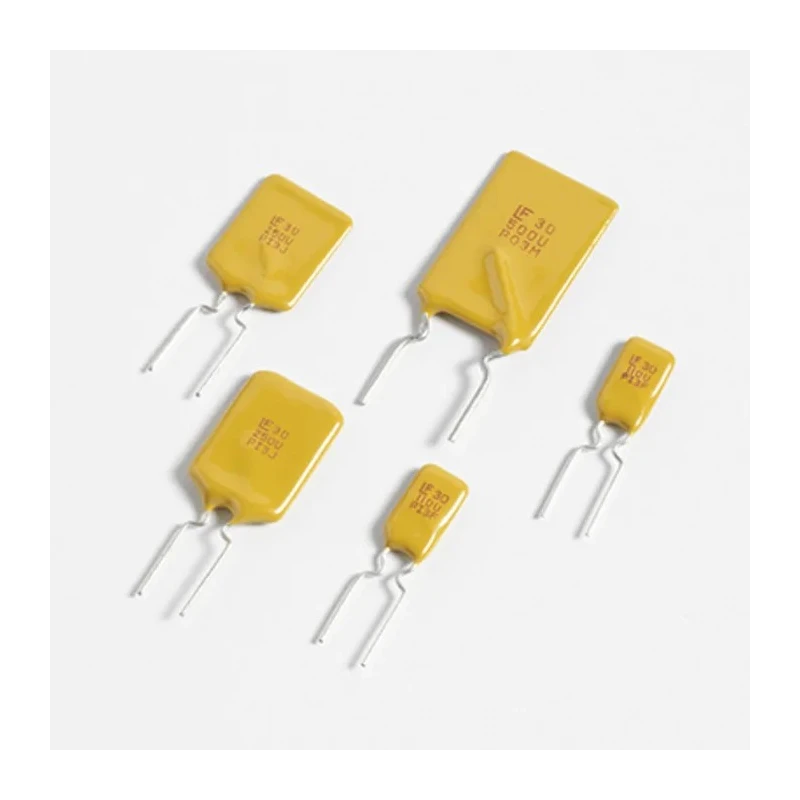

Wickmann 5 A Resettable Fuse Polymer Body Tin Plated Copper Terminals 14mm x 25.6mm x 3mm 30R500UF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wickmann |
| Body Material | Polymer |
| Height | 25.6mm |
| Length | 14mm |
| Model | 30R500UF |
| Width | 3mm |
| Series | 30R |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Trip Current | 10A |
| Power Dissipation | 3W |
| Terminal Material | Tin Plated Copper |
| Time to Trip | 14.5s |
| Hold Current | 5A |
| Minimum Resistance | 0.01Ω |
| Maximum Resistance | 50mΩ |
Key Features
- Designed for low voltage applications up to 30 V.
- Features a fast time-to-trip of 14.5 seconds at trip current.
- Trip current rated at 10 A and hold current at 5 A.
- Compact size with 14 mm length, 25.6 mm height, and 3 mm width.
- Constructed with flame retardant epoxy polymer body material.
- Operates between -40°C and 85°C operating temperature range.
- Low resistance characteristics with 0.01 Ω minimum resistance and 50 mΩ maximum resistance.
- Power dissipation rating of 3 W for efficient thermal management.
Product Description
The Wickmann 30R500UF is a 5 A resettable fuse engineered for overcurrent protection in low voltage circuits up to 30 volts. This fuse is designed to provide fast and reliable circuit interruption with a trip current of 10 A and a quick time to trip of 14.5 seconds, making it suitable for sensitive electronic and electrical applications that require resettable protection.
Constructed with a durable polymer body and tin plated copper terminals, the fuse ensures excellent electrical performance and robust mechanical stability. The compact form factor of 14 mm length, 25.6 mm height, and 3 mm width allows it to fit into space-constrained assemblies without sacrificing performance.
The fuse operates reliably across a broad temperature range from -40°C to 85°C, making it versatile for varied environmental conditions. With a power dissipation capability of 3 W and resistance values ranging from 0.01 Ω minimum to 50 mΩ maximum, the 30R500UF fuse delivers efficient thermal management and minimal voltage drop during normal operation.
This fuse belongs to the 30R series of radial leaded devices, designed for applications where resettable protection is preferred. The body is made from cured, flame retardant epoxy polymer insulating material, ensuring safety and compliance with operational standards.
Designed for low voltage (≤30 V) circuit protection applications. Fast response with 14.5 seconds time to trip at 10 A trip current. Durable polymer body with flame retardant properties. Tin plated copper terminals provide superior conductivity.
Compact dimensions suitable for industrial and commercial devices. Wide operation temperature range from -40°C to 85°C. Efficient thermal management with 3 W power dissipation.
This Wickmann Resettable Fuse is ideal for use in industrial, electrical automation, commercial, and electronic equipment where space and reliable resettable circuit protection are priorities. The product is manufactured in China and offers a quality solution with proven performance characteristics.
Explore more circuit protection devices and electrical components within EnvMart’s extensive catalog for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The trip current rating for this resettable fuse is 10 A.
The hold current of this model is rated at 5 A.
This fuse has a length of 14 mm, a height of 25.6 mm, and a width of 3 mm.
The maximum operating temperature for the Wickmann 30R500UF is 85°C.
This model operates reliably at a minimum temperature of -40°C.
The time to trip for this fuse at its trip current of 10 A is 14.5 seconds.
The fuse features a polymer body and tin plated copper terminals for enhanced conductivity.
The power dissipation rating for the Wickmann 30R500UF is 3 W.
This fuse has a minimum resistance of 0.01 Ω and a maximum resistance of 50 mΩ.
This resettable fuse is suitable for low voltage circuit protection in industrial, electrical automation, commercial, and electronic equipment.
The 30R500UF is part of the 30R series of radial leaded devices.
This resettable fuse is manufactured in China.
