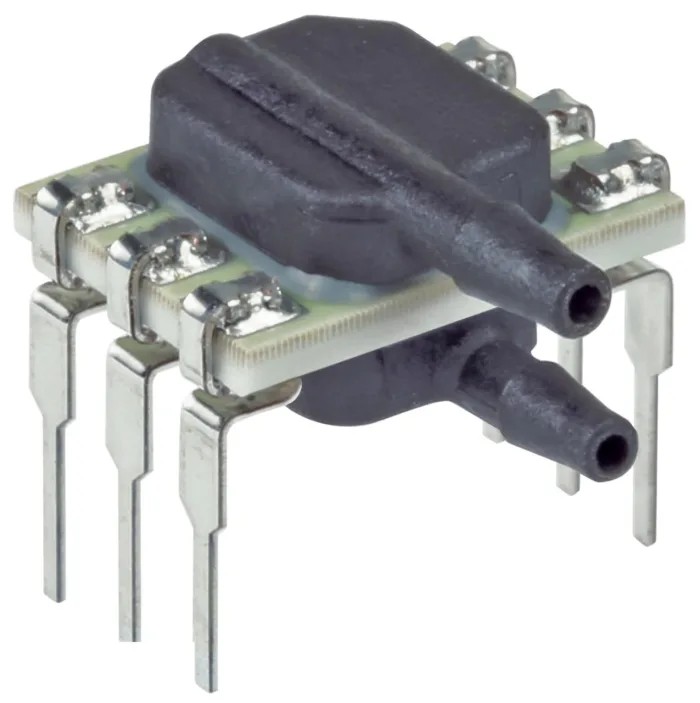

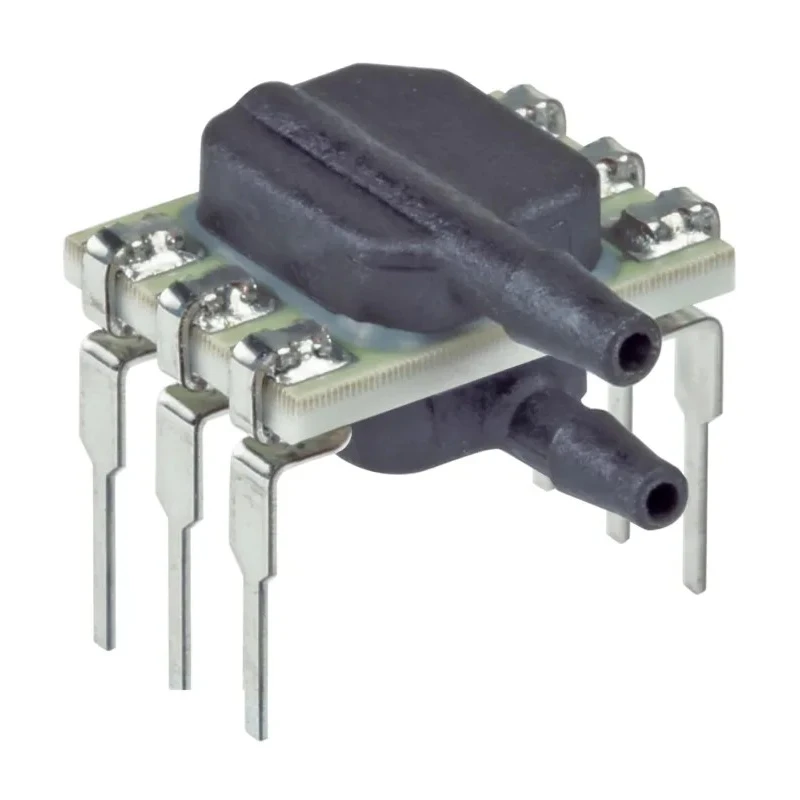

Honeywell Technologies Piezoresistive Pressure Sensor Board 6 Pin DIP 5V 15 psi ±0.25% Accuracy ABPDRRV015PDAA5
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 15 psi |
| Height | 3.63mm |
| Length | 7.3mm |
| Model | ABPDRRV015PDAA5 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Board |
| Series | ABP |
| Maximum Operating Temperature | +85°C |
| Port Type | Dual Radial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | BPA Free, LFGB, NSF-169 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 250psi |
Key Features
- Offers ±0.25% accuracy and total error band of ±1.5% FSS for reliable measurements.
- Operates from a low-voltage 5V supply compatible with 3.3V and 5.0V systems.
- Dual radial barbed ports support wet/wet differential sensing applications.
- Temperature range from -40°C to +85°C with temperature compensation and on-board calibration.
- Sleep mode reduces battery consumption with microamp-level current draw.
- Constructed with sensor wetted materials certified as BPA Free, LFGB, and NSF-169 compliant.
- Suitable for industrial HVAC, medical devices, coffee makers, washing machines, and pneumatic valve control.
Product Description
Honeywell Technologies ABPDRRV015PDAA5 is a high precision piezoresistive differential pressure sensor designed for integration on printed circuit boards. It features a compact 6-pin DIP package with dual radial barbed pressure ports enabling wet/wet sensing of gauge and differential pressures in gas or liquid environments.
With ±0.25% measurement accuracy and a total error band of ±1.5% Full Scale Span, this sensor ensures precise and predictable pressure readings. The device operates from a low-voltage 5V supply, compatible with modern 3.3V and 5.0V electronics, and incorporates an on-board ASIC for temperature compensation and calibration across its operating range from -40°C to +85°C.
It supports a maximum operating pressure of 15 psi and can withstand a maximum overload pressure of 250 psi. Fast output update rates of 2 kHz digital and 1 kHz analog enable rapid pressure monitoring, while an ultra-low current sleep mode extends battery life in portable and low-power applications.
The sensor’s materials comply with food safety certifications including BPA Free, LFGB, and NSF-169, making it suitable for sensitive applications such as medical instruments including CPAP and ventilators, blood analysis devices, as well as consumer appliances like coffee makers and washing machines.
±0.25% accuracy improves measurement precision in industrial and medical systems. Low-voltage operation compatible with 3.3 V or 5 V electronics. Dual radial barbed ports facilitate wet/wet differential pressure monitoring.
Robust temperature compensation and calibration ensure stable operation from -40°C to +85°C. Fast digital and analog output update rates enable real-time sensing. Sleep mode minimizes current consumption for battery-operated systems.
BPA Free and certified wetted materials ensure suitability for food and medical contact.
Ideal for industrial, laboratory, HVAC, medical, agricultural, and consumer electronics pressure measurement applications. The sensor offers reliable integration on PCBs with its PCB mountable DIP package and versatile output interface options.
Explore more electronic components and sensor solutions in the Electronics & Electricals > Sensors > Pressure Sensor ICs category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It offers an accuracy of ±0.25%.
The maximum operating pressure is 15 psi.
It operates within a temperature range of -40°C to +85°C.
It features dual radial barbed ports for wet/wet differential sensing applications.
It operates from a low-voltage supply of 5V, and is compatible with 3.3V systems.
The sensor has dimensions of 7.3mm in length, 6.3mm in width, and 3.63mm in height.
It can withstand a maximum overload pressure of 250 psi.
Yes, it is certified as BPA Free, LFGB, and NSF-169 compliant.
This model has a pin count of 6.
It features fast output update rates of 2 kHz for digital and 1 kHz for analog signals.
It is suitable for industrial HVAC, medical devices, coffee makers, washing machines, and pneumatic valve control.
It is a piezoresistive pressure sensor designed for integration on printed circuit boards.
