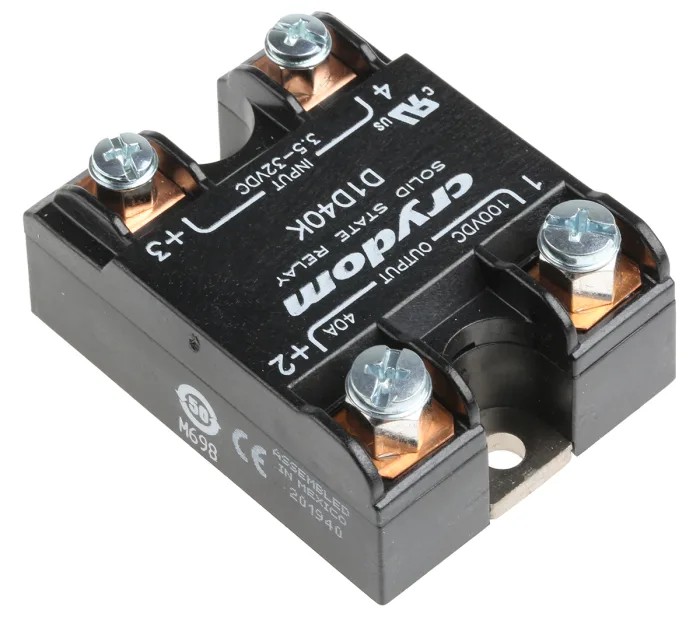

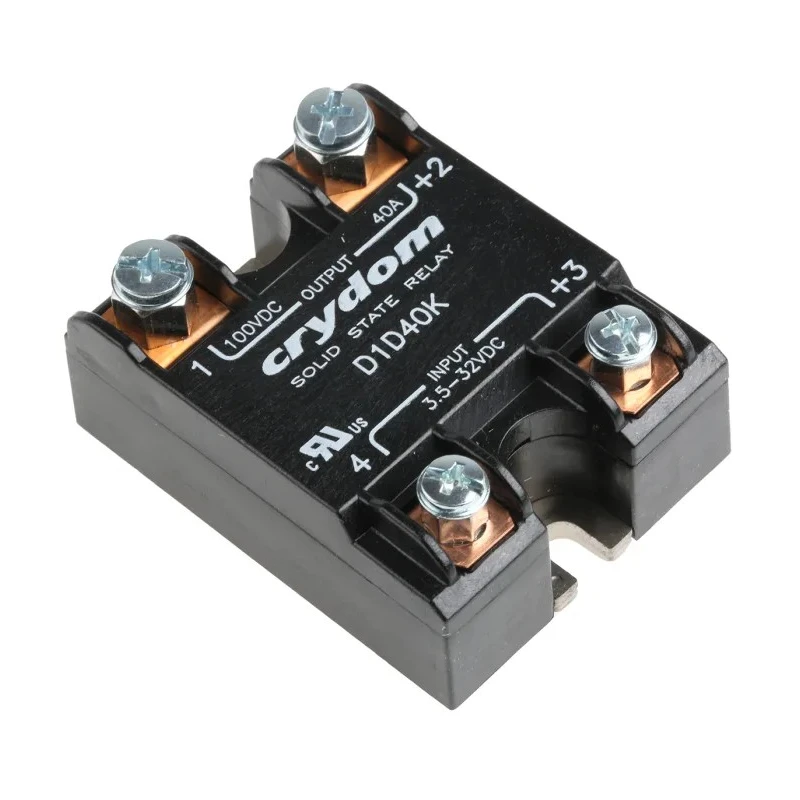

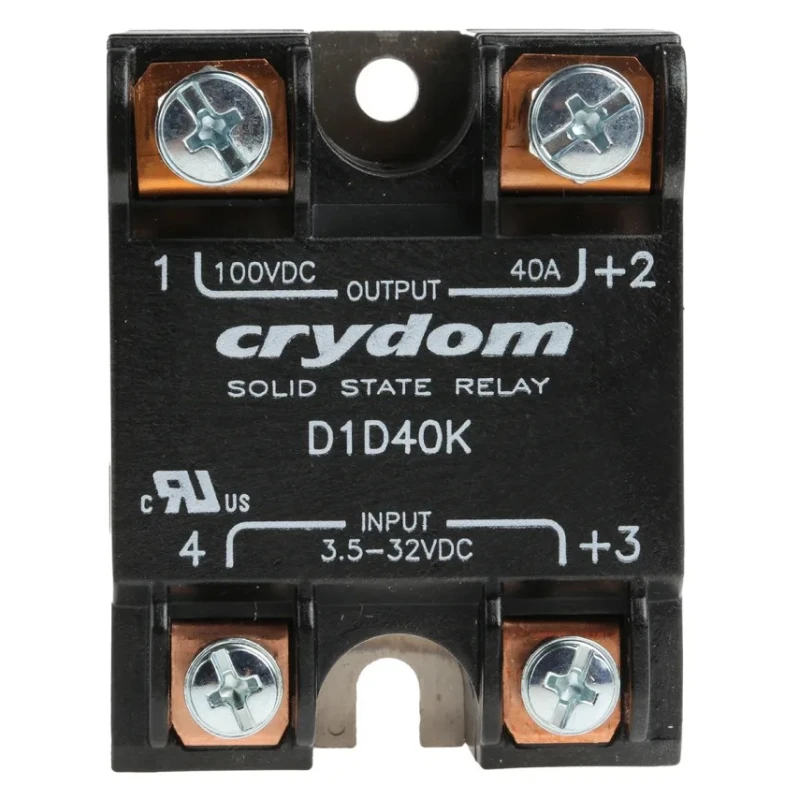

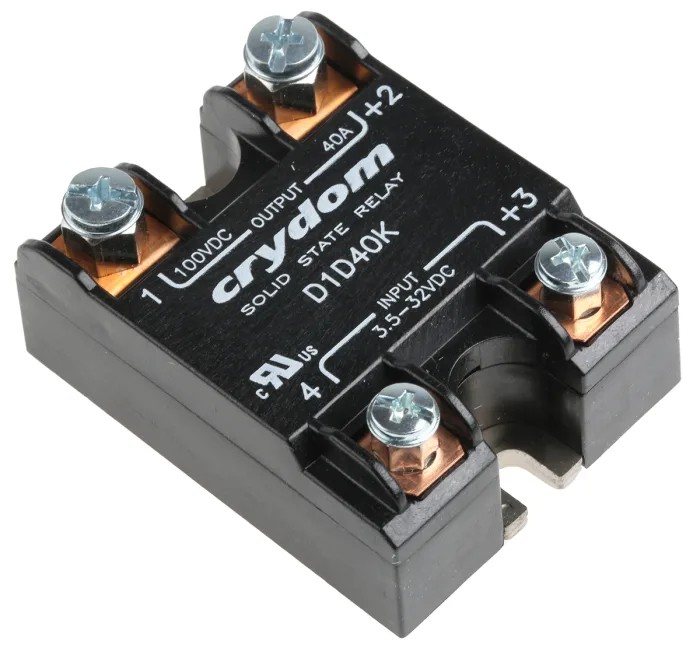

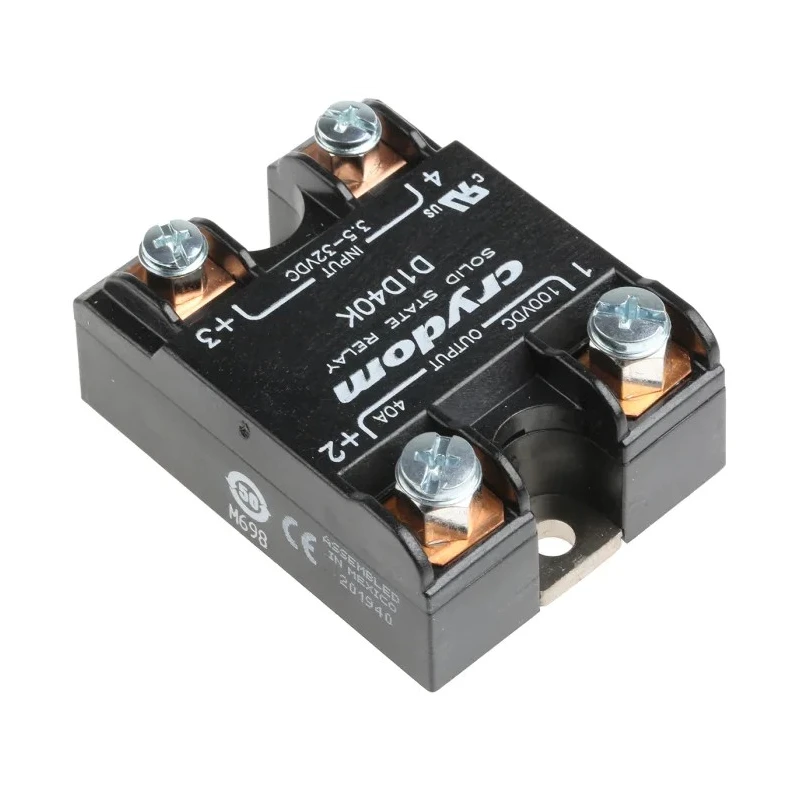

Crydom 1-DC Series Solid State Relay Panel Mount, 40 A DC Load, 100 V DC Load, 32 V DC Control D1D40K

Crydom D1D40K 1-DC Series Solid State Relay is a panel mount relay specifically designed for controlling heavy-duty DC loads up to 40 A and 100 V DC. This relay utilizes MOSFET output technology, which provides fast, noiseless switching without mechanical wear, making it extremely reliable for long-term industrial use.

Encased in a thermally conductive epoxy housing, the relay is resistant to impact and heat, supporting a wide operating temperature range from -40°C to 100°C, suitable for harsh industrial environments. Its compact dimensions of 44.5 mm (L) x 22.6 mm (H) facilitate easy integration into tight panels and control boxes.

Equipped with screw terminals for secure installation, the D1D40K ensures stable electrical connections even in systems subject to vibration, typical in robotics and automation industries.

The relay features a low off-state leakage current of 0.3 mA and minimal input/output capacitance of 8 pF, reducing power loss and interference. It boasts a high dielectric strength of 3750 Vrms, which mitigates electrical hazards and fire risk in demanding electrical control applications.

Certified to CE, RoHS, and CSA standards, this Crydom relay meets stringent quality and safety requirements. Its minimum and maximum control voltages of 3.5 V DC and 32 V DC allow flexible input control signals, while the minimum load voltage of 1 V DC enhances applicability to various DC systems.

Panel mount design suitable for compact industrial applications. Operates with a wide temperature range from -40°C to 100°C. Low off-state leakage current of 0.3 mA for energy efficiency. High dielectric strength of 3750 Vrms enhances electrical safety.

MOSFET output type ensures reliable switching performance. Compliant with CE, RoHS, and CSA standards. Compact and robust epoxy housing for thermal and impact resistance. Secure screw terminal connections prevent loosening in vibration-prone environments.

Wide control voltage range from 3.5 V DC to 32 V DC.

This Solid State Relay is ideal for industrial, automation, robotics, manufacturing, and process control applications requiring reliable, maintenance-free DC load switching. Its robust design and certifications make it well suited for demanding electrical panel setups.
