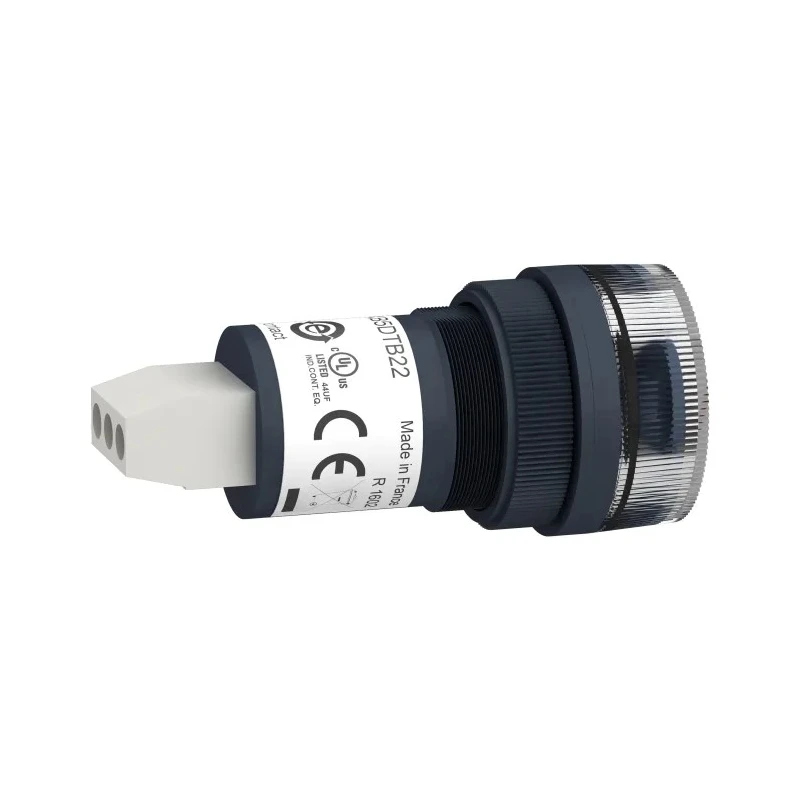

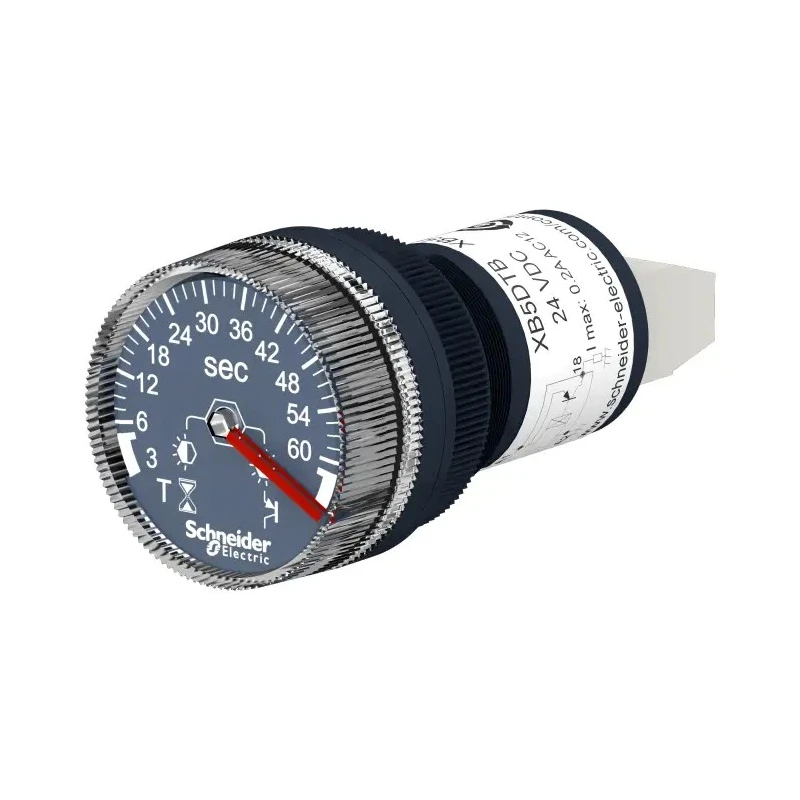

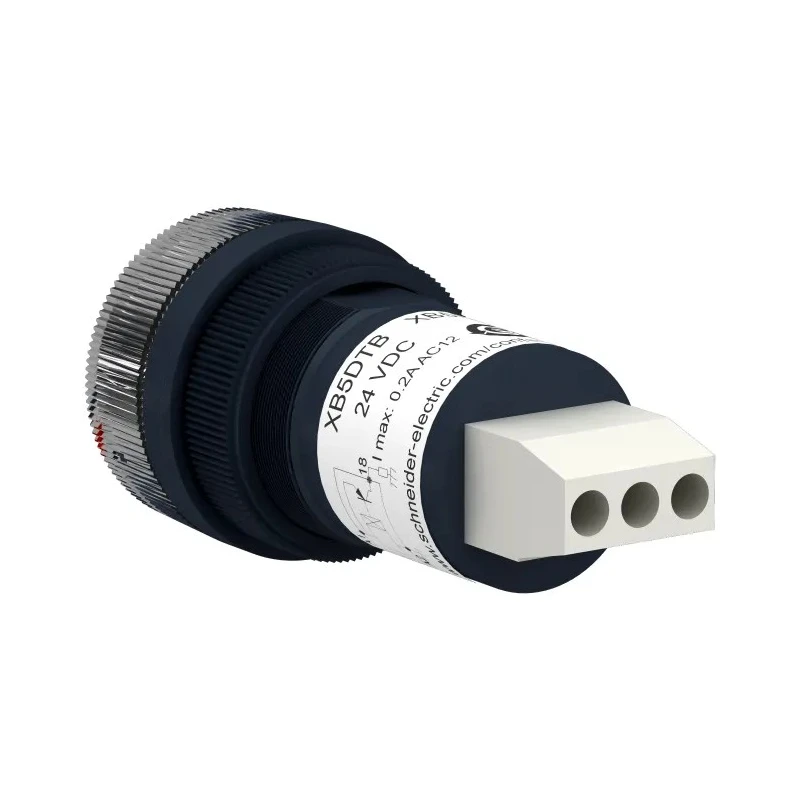

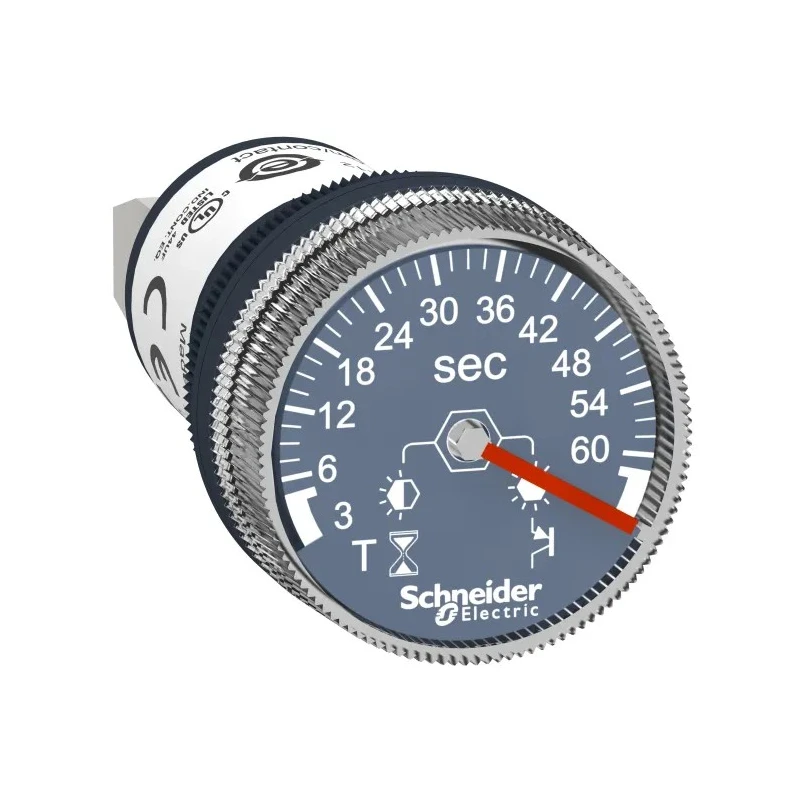

Crouzet Harmony XB5 Series Panel Timer Relay 24 V dc 24V ac 3 to 60 s 1-Function XB5DTB23
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crouzet |
| Height | 62mm |
| Function | Offset Double Ring End |
| Length | 62mm |
| Model | XB5DTB23 |
| IP Rating | IP65, IP20 |
| Width | 90mm |
| Mount Type | Panel |
| Series | Harmony XB5 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Time Range | 3 to 60 s |
| Terminal type | Screw |
| Standards/Approvals | UL Listed, CE, EN/IEC 61812-1, UL 508 |
| Better World Claim | Repairable by the End User |
| Number of Timer Functions | 1 |
| Supply DC Voltage | 24 V dc |
| Supply AC Voltage | 24V ac |
| Crouzet Panel Mount Timer Relay, 24V dc, 3 → 60s, 1-FunctionBrand | Crouzet |
Key Features
- Compact panel mount design suitable for 22.5 mm mounting hole.
- Single timer function for precise offset double ring end timing.
- Robust IP65 and IP20 rated construction for dust, water, and impact resistance.
- Operating temperature range from -20°C to 60°C for harsh environments.
- Easy wiring with screw terminals and high visibility LED indicator.
- Complies with UL, CE, EN/IEC 61812-1, and UL 508 standards.
- Part of the Harmony XB5 series known for repairability by end users.
Product Description
Schneider Electric XB5DTB23 is a panel mount timer relay from the Harmony XB5 series, designed for industrial control applications requiring timed switching with precise intervals.
It operates with a supply voltage of 24 V dc or 24 V ac and provides a timing range adjustable from 3 to 60 seconds, supporting one timer function (Offset Double Ring End) to deliver consistent timing performance.
The timer relay features a compact 22.5 mm mounting hole and screw terminal connections, enabling easy and secure installation in control panels.
Its rugged build with IP65 and IP20 protection ratings ensures resistance against dust, water, impact, and vibration, making it suitable for demanding industrial environments operating between -20°C and 60°C.
With dimensions of 62 mm height, 90 mm width, and 62 mm length, this relay fits well in various panel designs while maintaining high visibility of timing status through its LED indicator.
The device complies with international standards including UL Listed, CE, EN/IEC 61812-1, and UL 508, affirming its quality and safety for industrial automation system integration.
Compact panel mount timer relay for industrial control panels. Adjustable timing from 3 to 60 seconds with one timer function. Operation under harsh conditions with IP65 and IP20 ratings. Durable design featuring screw terminal connections.
Wide operating temperature range of -20°C to 60°C. Compliance with UL, CE, and IEC safety standards. Part of Schneider Electric's Harmony XB5 series offering reliable performance. LED indicator for clear visual timing status.
This panel timer relay is ideal for automation control, electrical control panels, HVAC systems, and other industrial timing applications where precision and durability are essential.
Explore more Schneider Electric automation products and Timer Relays at EnvMart for reliable and sustainable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an adjustable timing range from 3 to 60 seconds, supporting a single timer function known as Offset Double Ring End.
The dimensions of this unit are 62 mm in height, 90 mm in width, and 62 mm in length, making it suitable for various panel designs.
It operates with a supply voltage of 24 V dc or 24 V ac, providing flexibility for different electrical setups.
The device has IP65 and IP20 ratings, ensuring protection against dust, water, and impact, suitable for demanding environments.
This panel timer relay operates effectively within a temperature range of -20°C to 60°C, making it suitable for harsh conditions.
It features a panel mount design with screw terminal connections, allowing for easy and secure installation in control panels.
It complies with several international standards including UL Listed, CE, EN/IEC 61812-1, and UL 508, ensuring quality and safety.
This model provides one timer function, specifically the Offset Double Ring End, which allows for precise timing applications.
It utilizes screw terminals for connections, facilitating easy wiring and secure installation.
The product is manufactured in India, contributing to its global availability.
It is ideal for automation control, electrical control panels, HVAC systems, and other industrial timing applications where precision is essential.
It includes a high visibility LED indicator that provides clear visual status of the timing operation.
