| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.7mm |
| Length | 1.25mm |
| Model | RB531SM-30T2R |
| Width | 0.85mm |
| Mount Type | Surface |
| Series | RB531SM |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 350mV |

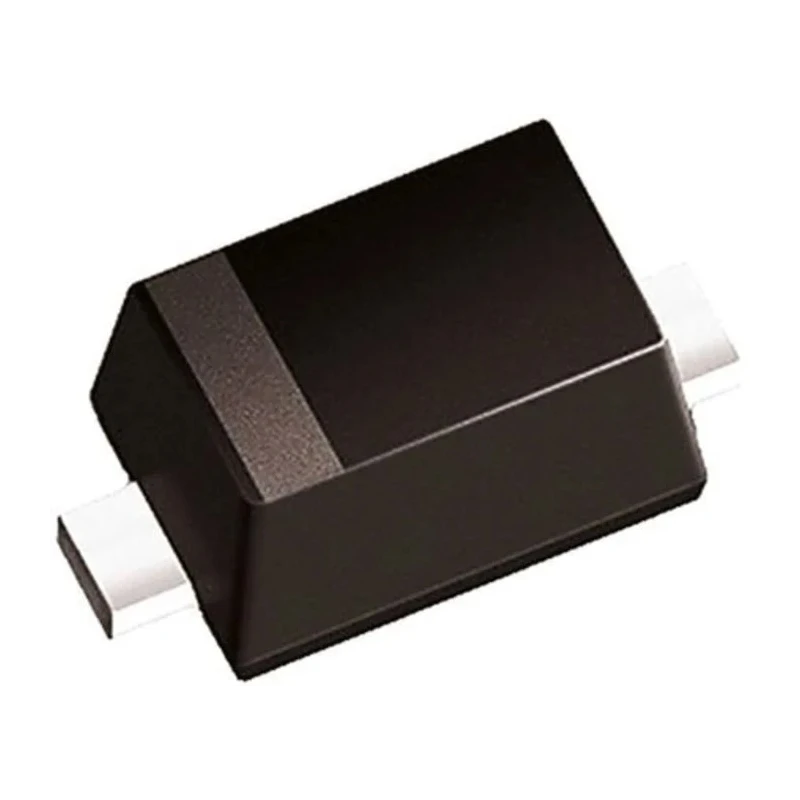

The ROHM RB531SM-30T2R is a Schottky diode designed for high-efficiency rectification with a maximum continuous forward current rating of 200 mA and a peak reverse repetitive voltage of 30 V. Packaged in a compact and surface-mount SOD-523 package, this diode is suitable for various industrial and electronic applications including power management, signal detection, and switching circuits.
The diode features a low forward voltage drop of 350 mV, which contributes to reduced power losses and higher efficiency in electronic circuit designs. It can handle peak non-repetitive forward surge currents up to 1 A and operates safely within temperatures up to 150°C, ensuring reliability in demanding conditions.
With physical dimensions of 1.25 mm length, 0.85 mm width, and 0.7 mm height, the diode is ideal for compact PCB layouts and automated assembly processes. Its 2-pin configuration enables straightforward integration into electronic systems requiring Schottky diode rectifiers.
This product finds extensive use in electronic circuits for industrial, laboratory instrumentation, HVAC controls, manufacturing equipment, and automotive electronics where efficient rectification is critical. It is also suited for use in power and connector components in semiconductor devices.
This single diode rectifier offers a low forward voltage drop of 350 mV. The diode supports a maximum forward surge current of 1 A. It operates reliably up to a temperature of 150°C. The compact dimensions are 1.25 mm length, 0.85 mm width, and 0.7 mm height.
The diode features a surface mount package type, ideal for high-efficiency circuit designs. It has a peak reverse current of 10 μA, ensuring minimal leakage. Designed for electronic and power semiconductor applications requiring efficient rectification.
EnvMart offers a comprehensive range of semiconductor diodes including Schottky Diodes suited for precision and industrial-grade uses. Browse related ROHM semiconductor components and discover solutions optimized for your technical requirements.
