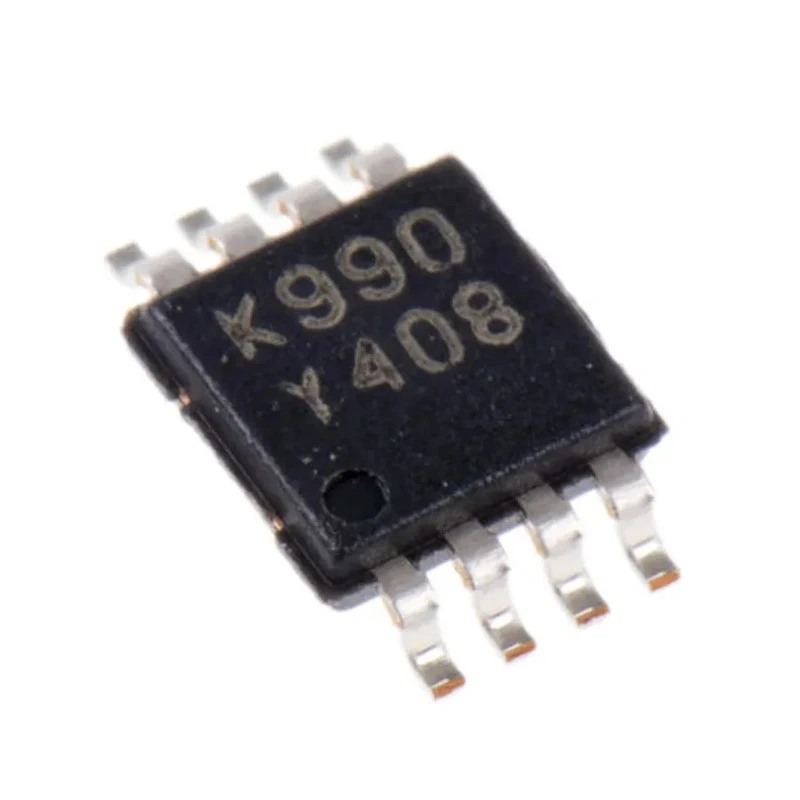

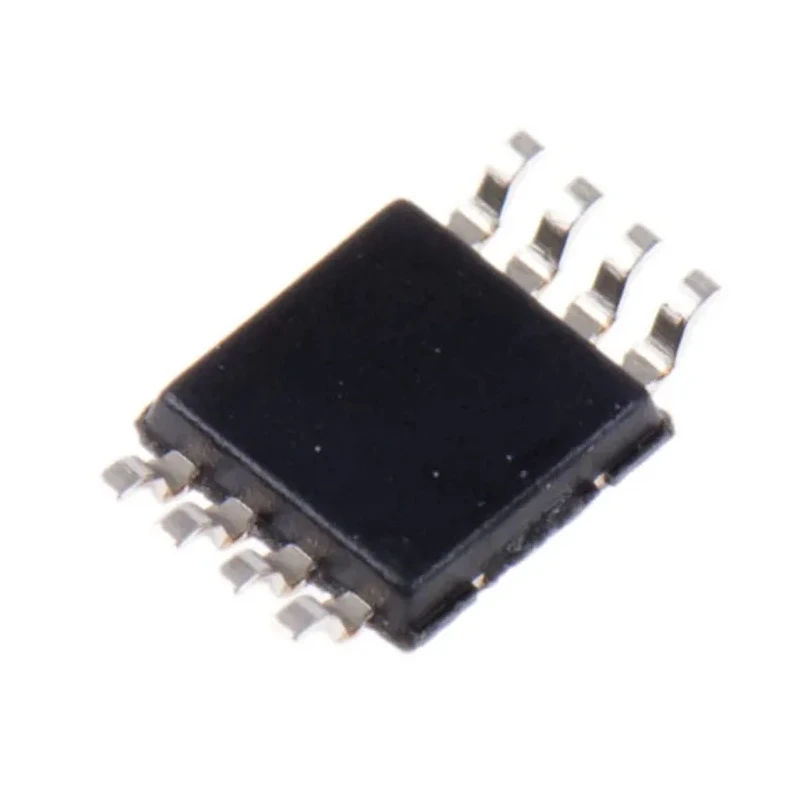

STMicroelectronics Low Power 2 Channel Operational Amplifier 2.5 MHz Gain Bandwidth 36 V MiniSOIC 8-Pin TSB572IYST
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.95mm |
| Length | 3.2mm |
| Model | TSB572IYST |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | TSB572 |
| Output Current | 65mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MiniSOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 4V |
| GBP - Gain Bandwidth Product | 2.5MHz |
| Input Bias Current | 70 nA |
| Vos - Input Offset Voltage | 2.1 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 35 nA |
| Low input bias current | 30 nA max |
Key Features
- Supports a wide supply voltage range from 4 V to 36 V.
- Typical low power consumption at 380 μA.
- Rail-to-rail input and output capability for full signal swing.
- Low input bias and offset currents for precision applications.
- Operating temperature range from -40°C to 125°C suitable for automotive and industrial environments.
- Output current up to 65 mA for versatile drive capabilities.
- Compliant with RoHS standards ensuring environmental safety.
- Automotive grade with AEC-Q100 certification for reliability.
Product Description
STMicroelectronics TSB572IYST is a precision dual-channel operational amplifier designed for low power consumption and high performance in industrial, automotive, and consumer electronics applications. The device operates over a wide voltage range of 4 V to 36 V, making it suitable for battery-powered and high voltage systems.
Featuring a gain bandwidth product of 2.5 MHz and a slew rate of 1 V/μs, this amplifier offers excellent frequency response and signal fidelity. Its rail-to-rail input and output design allow for maximum dynamic range and efficient use of supply voltage.
The operational amplifier includes very low input bias currents (typically 30 nA max) and input offset voltages around 2.1 mV, enabling high accuracy signal processing. Output current capability up to 65 mA supports driving various loads in analogue circuits.
Its compact MiniSOIC 8-pin surface-mount package, with precise dimensions of 3.2 mm × 3.1 mm × 0.95 mm, supports dense PCB layouts. The device meets RoHS compliance and holds the automotive AEC-Q100 quality standard, ensuring durability and reliability in harsh environments.
This operational amplifier is ideal for a variety of applications including automotive sensor interfaces, industrial control systems, instrumentation, portable medical devices, and general analog signal conditioning.
Wide supply voltage range (4 V to 36 V) for flexible power environments. Low power consumption ensures energy-efficient operation in battery-driven systems. Rail-to-rail input/output extends signal dynamic range. Robust automotive qualification ensures reliability under extreme conditions.
Compact MiniSOIC package supports space-constrained designs. High output current supports diverse load requirements. Operation over a wide temperature range suits industrial applications. Low input offset and bias currents enable precision amplification.
RoHS compliant for environmental safety and regulatory adherence. Explore the full range of Operational Amplifiers at EnvMart for advanced semiconductor solutions suitable for design and production.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 2.5 MHz, providing excellent frequency response for various applications.
It operates over a wide supply voltage range from 4 V to 36 V, making it suitable for various power environments.
This model can provide an output current of up to 65 mA, allowing it to drive various loads effectively.
The MiniSOIC package has dimensions of 3.2 mm in length, 3.1 mm in width, and a height of 0.95 mm.
It operates within a temperature range of -40°C to 125°C, making it suitable for automotive and industrial applications.
This operational amplifier uses surface mount technology, which is ideal for compact PCB layouts.
The input offset voltage is around 2.1 mV, which supports high accuracy in signal processing applications.
It is compliant with the AEC-Q100 automotive standard, ensuring reliability in harsh automotive environments.
The slew rate for this operational amplifier is 1 V/μs, which contributes to its performance in fast signal applications.
The input bias current is typically 70 nA, with a maximum of 30 nA, supporting precision applications.
Yes, this operational amplifier is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for automotive sensor interfaces, industrial control systems, instrumentation, and general analog signal conditioning.
