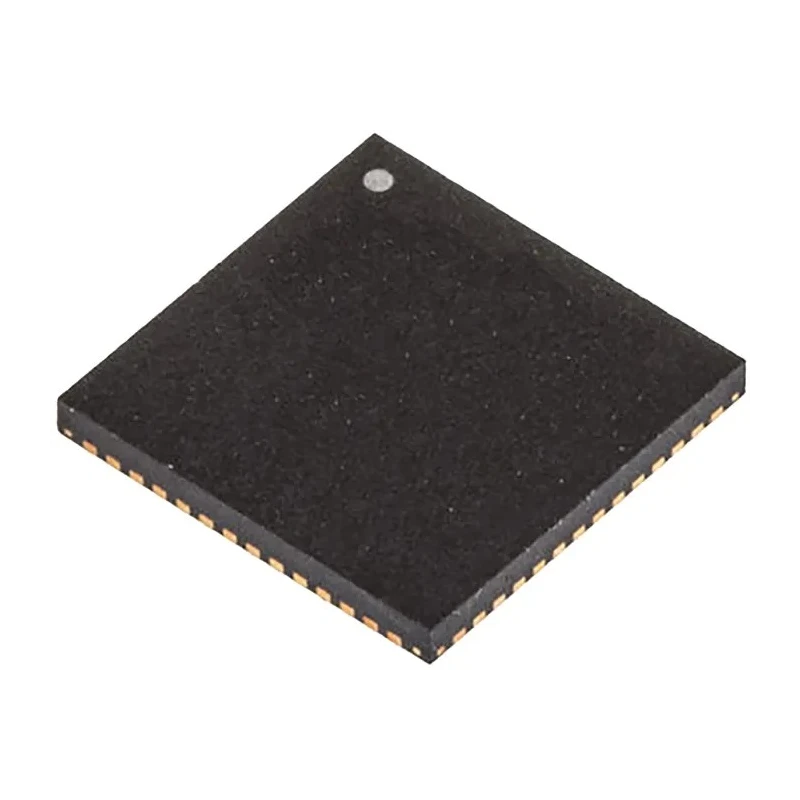

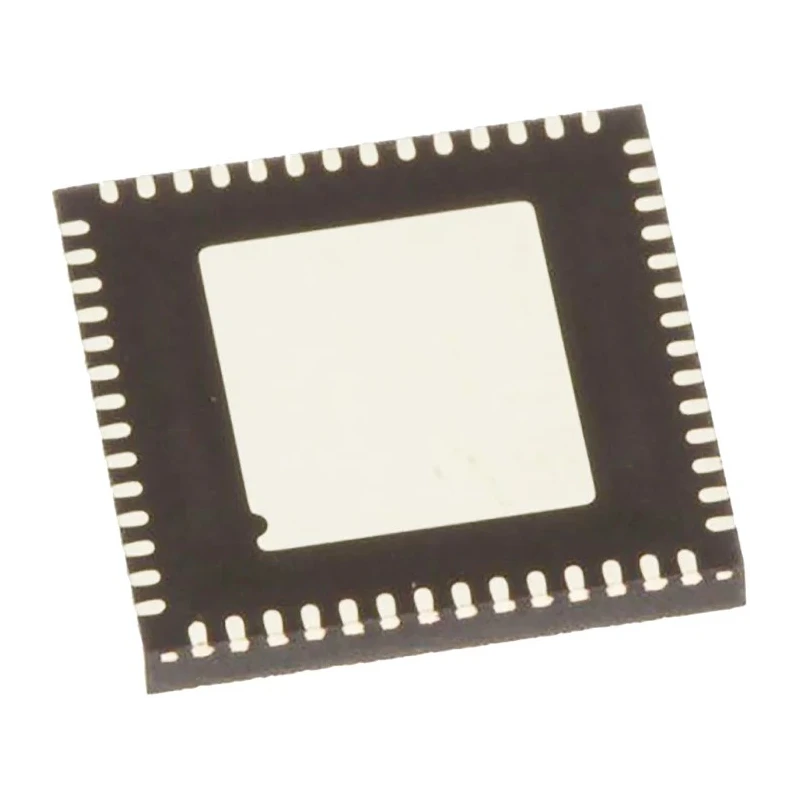

Microchip 56-Pin QFN Ethernet Controller, 1.62 V to 3.3 V Supply, 100 Mbps SMI, Full Duplex/Half Duplex LAN9220-ABZJ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 8mm |
| Model | LAN9220-ABZJ |
| Width | 8mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 70°C |
| Package Type | QFN |
| Minimum Operating Temperature | 0°C |
| Communication Mode | Full Duplex/Half Duplex |
| Interface Type | SMI, Host Bus |
| Pin Count | 56 |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 1.62V |
| Supply Current | 85mA |
| Maximum Data Rate | 100Mbps |
| Loopback Mode | Internal |
| Standard Supported | IEEE 802.3u, ANSI 802.3x, IEEE, IEEE 802.3 |
Key Features
- This Ethernet controller features a 56-pin QFN package suitable for surface mounting.
- It supports IEEE 802.3u and ANSI 802.3x standards ensuring broad compatibility.
- The device includes an internal loopback mode for diagnostics.
- Operating temperature ranges from 0°C to 70°C for reliable industrial use.
- It has a supply current of 85 mA at maximum supply voltage of 3.3 V.
- The compact package dimensions are 8 mm length, 8 mm width, and 1 mm height.
- Designed for integration in industrial, automation, and embedded Ethernet applications.
Product Description
Microchip LAN9220-ABZJ Ethernet Controller is a surface-mount device housed in a 56-pin QFN package designed for industrial networking applications. It operates over a supply voltage range from 1.62 V minimum to 3.3 V maximum and supports data transfer speeds up to 100 Mbps using the Serial Management Interface (SMI) and Host Bus interface.
The controller supports both full duplex and half duplex communication modes, complying with IEEE 802.3u and ANSI 802.3x standards for Ethernet communication. It features an internal loopback mode useful for diagnostics and system testing.
With operating temperatures between 0°C and 70°C, the LAN9220-ABZJ is suitable for various industrial and embedded applications requiring robust and reliable Ethernet connectivity.
The compact dimensions of 8 mm length, 8 mm width, and 1 mm height, along with an 85 mA supply current, make it ideal for PCB designs with limited space and power considerations. This Ethernet controller features a 56-pin QFN package suitable for surface mounting.
It supports IEEE 802.3u and ANSI 802.3x standards ensuring broad compatibility. The device includes an internal loopback mode for diagnostics. Operating temperature ranges from 0°C to 70°C for reliable industrial use. It has a supply current of 85 mA at maximum supply voltage of 3.3 V.
The compact package dimensions are 8 mm length, 8 mm width, and 1 mm height. Designed for integration in industrial, automation, and embedded Ethernet applications.
This product is ideal for use in industrial machines, automation systems, and embedded devices requiring standard-compliant Ethernet controllers. It facilitates high-speed network communication with full and half duplex modes, suitable for a range of commercial and industrial scenarios.
Explore more semiconductor and Ethernet interface IC products on EnvMart to find complementary components for your applications.
Explore more products in our Ethernet Interface Ics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LAN9220-ABZJ supports a maximum data rate of 100 Mbps.
It operates over a supply voltage range from 1.62 V to 3.3 V.
This model supports both full duplex and half duplex communication modes.
The compact dimensions are 8 mm in length, 8 mm in width, and 1 mm in height.
It complies with IEEE 802.3u and ANSI 802.3x standards for Ethernet communication.
The operating temperature ranges from 0°C to 70°C, making it suitable for industrial use.
It is housed in a 56-pin QFN package suitable for surface mounting.
Yes, it includes an internal loopback mode useful for diagnostics and system testing.
The supply current is 85 mA at the maximum supply voltage of 3.3 V.
It supports Serial Management Interface (SMI) and Host Bus interfaces.
It is designed for integration in industrial, automation, and embedded Ethernet applications.
The country of origin for this Ethernet controller is India.
